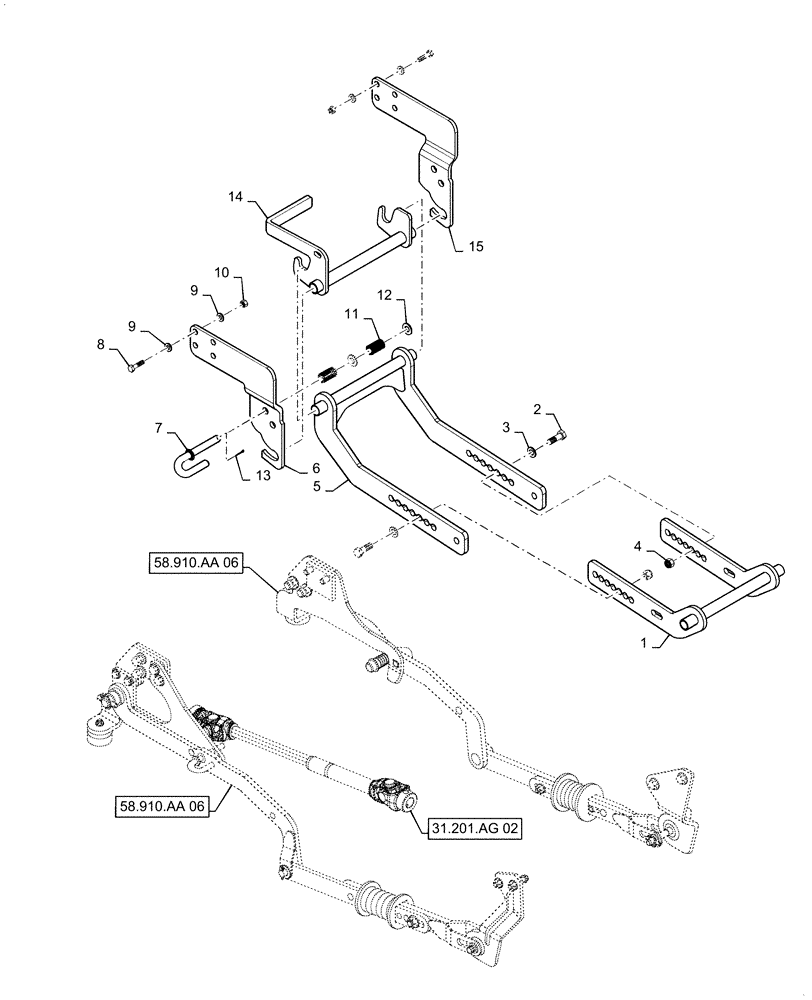

Запчасти Case IH MW272S (58.910.AA[05]) - VAR - 717966216, 717966226 - MOWER DECK MOUNTING PARTS, 72", T4 (58) - ATTACHMENTS/HEADERS

1

AME453095B

BRACKET

Lower Deck, Mounting

1шт.

2

AME018725B

BOLT,M14 x 2 x 40mm L, Gr 10.9

4шт.

3

AME008118B

WASHER,14mm ID

4шт.

4

AME007519B

NUT,M14 x 2mm Thk, Gr 10

Nylon - Lock

4шт.

5

AME453610B

MOUNT

Lower, Link

1шт.

6

AME453604B

PLATE

LH, Hook

1шт.

7

AME066073B

LATCH

J

1шт.

8

AME018618B

BOLT,M10 x 1.25 x 45mm L, Gr 10.9

8шт.

9

AME008162B

WASHER,7/16" ID

16шт.

10

AME007472B

NUT,M10 x 1.25

8шт.

11

AME008675B

COMPRESSION SPRING

J - Latch

2шт.

12

AME008173B

WASHER,1/2" ID

2шт.

13

AME008554B

HAIR PIN COTTER,3/32" OD x 3/4" L

1шт.

14

AME453100B

LATCH

Mounting

1шт.

15

AME453606B

PLATE

RH, Hook

1шт.
