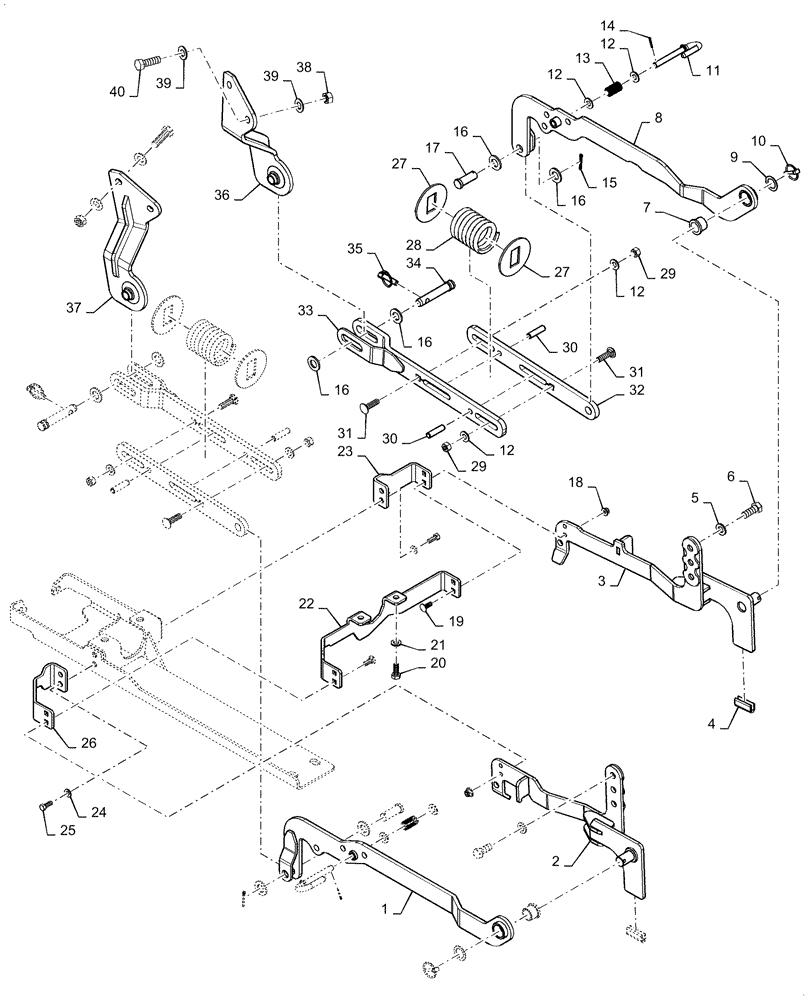

Запчасти Case IH MW266S (58.910.AA[04]) - VAR - 717966246, 717966256 - MOWER DECK MOUNTING PARTS, 66" ECONOMY (58) - ATTACHMENTS/HEADERS

1

AME453065B

LINK ARM ASSY KIT

RH, Mid

1шт.

2

AME453175B

SUPPORT

RH, Upstop

1шт.

3

AME453180B

SUPPORT

LH, Upstop

1шт.

4

AME014214B

RING

Rubber Stop

2шт.

5

AME008118B

WASHER,14mm ID

6шт.

6

AME018735B

BOLT,M14 x 2 x 35mm L, Gr 10.9

6шт.

7

AME011969B

BUSHING

Bearing

2шт.

8

AME453070B

LINK ARM ASSY KIT

LH, Mid

1шт.

9

AME008283B

BUSHING,1" ID x 1-1/2" OD

2шт.

10

AME013491B

LINCH PIN,1/4" OD x 1-1/4" L

2шт.

11

AME066073B

LATCH

J

2шт.

12

AME008164B

WASHER,1/2" ID

8шт.

13

AME008675B

COMPRESSION SPRING

J - Latch

2шт.

14

AME008554B

HAIR PIN COTTER,3/32" OD x 3/4" L

2шт.

15

AME008574B

HAIR PIN COTTER,1-1/4" L x 5/32" Thk

2шт.

16

AME008192B

WASHER,13/16" ID x 1-15/32" OD x 1/16" Thk

8шт.

17

AME013460B

CLEVIS PIN,3/4" OD x 2" L

2шт.

18

AME007457B

LOCK NUT,3/8" - 16

Nylon

4шт.

19

AME006608B

CARRIAGE BOLT,3/8" - 16 x 1" L

4шт.

20

AME018653B

BOLT,M12 x 1.75 x 30mm L, Gr 10.9

2шт.

21

AME008117B

WASHER,12mm ID

2шт.

22

AME453081B

SUPPORT

Hanger, Plate

1шт.

23

AME453083B

PLATE

LH, Hanger Support

1шт.

24

AME008115B

WASHER,10mm ID

4шт.

25

AME006845B

BOLT,3/8" - 16 x 1" L, Gr 5

4шт.

26

AME453082B

PLATE

RH, Hanger Support

1шт.

27

AME452219B

PLATE

Spring Stop

4шт.

28

AME008687B

SPRING

Cushion

2шт.

29

AME007508B

NUT,1/2" - 13, Gr 5

4шт.

30

AME009004B

PIN,1/2" OD x 2" L

4шт.

31

AME006669B

BOLT,1/2" - 13 x 1-3/4" L, Gr 2

2шт.

32

AME451906B

PLATE

Rear Link

2шт.

33

AME452345B

ARM

Shackle

2шт.

34

AME013397B

PIN,3/4" OD x 4-1/2" L

2шт.

35

AME013484B

PIN,11/64" OD x 1-3/4" L

Linch

2шт.

36

AME451945B

ARM

LH, Lift

1шт.

37

AME451940B

ARM

RH, Lift

1шт.

38

AME007529B

NUT,M16 x 2

4шт.

39

AME008178B

WASHER,5/8" ID

8шт.

40

AME007324B

BOLT,M16 x 2 x 50mm L

4шт.
