(58.910.AC[04]) - VAR - 717966206 - MOWER DECK, PTO GEARBOX MOUNT (ASN YFWWB5017)

Запчасти Case IH MW266S (58.910.AC[04]) - VAR - 717966206 - MOWER DECK, PTO GEARBOX MOUNT (ASN YFWWB5017) (58) - ATTACHMENTS/HEADERS

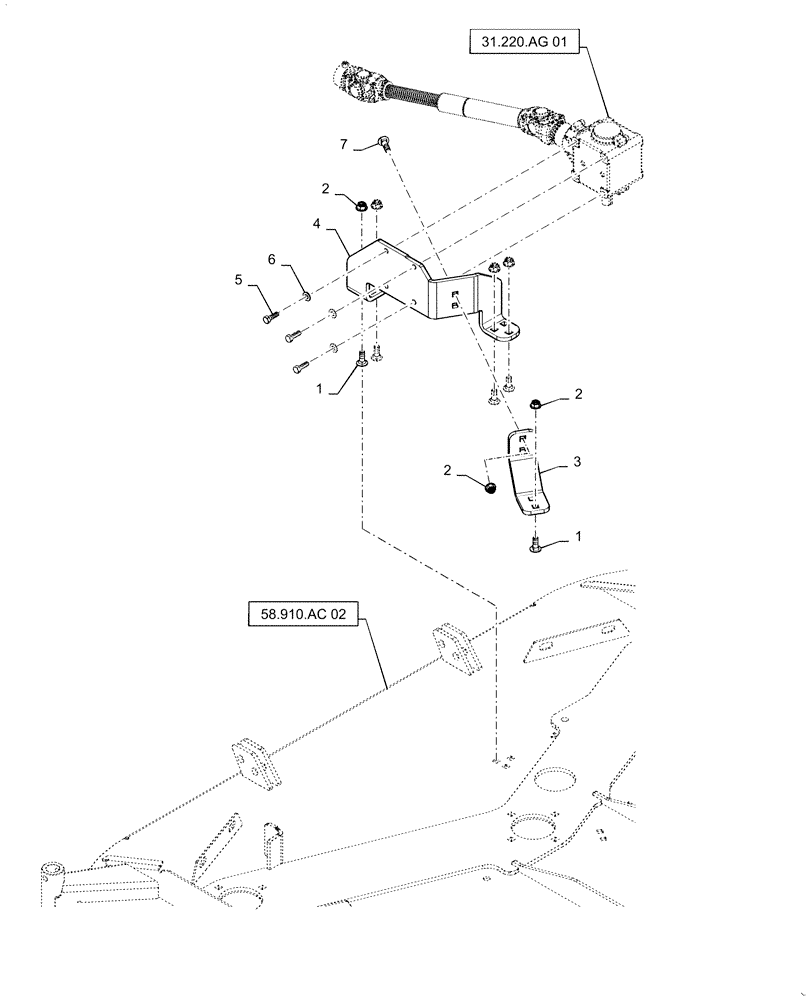

Схема запчастей Case IH MW266S - (58.910.AC[04]) - VAR - 717966206 - MOWER DECK, PTO GEARBOX MOUNT (ASN YFWWB5017) (58) - ATTACHMENTS/HEADERS
31.220.ag 01
2
2
4
7
3
1
1
6
2
5
58.910.ac 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AME006608B

CARRIAGE BOLT,3/8" - 16 x 1" L

8шт.

2

AME007457B

LOCK NUT,3/8" - 16

Nylon

10шт.

3

AME453179C

BRACKET

Gearbox Brace

1шт.

4

AME453178C

BRACKET

Gearbox Mount

1шт.

5

AME006786B

BOLT,5/16" - 18 x 1, Gr 5

4шт.

6

AME008152B

WASHER,5/16" ID

4шт.

7

AME006612B

BOLT,3/8" - 16 x 1-1/4" L, Gr 5

2шт.
