(58.910.AC[03]) - VAR - 717966206 - MOWER DECK, PTO GEARBOX MOUNT (BSN YFWWB5017)

Запчасти Case IH MW266S (58.910.AC[03]) - VAR - 717966206 - MOWER DECK, PTO GEARBOX MOUNT (BSN YFWWB5017) (58) - ATTACHMENTS/HEADERS

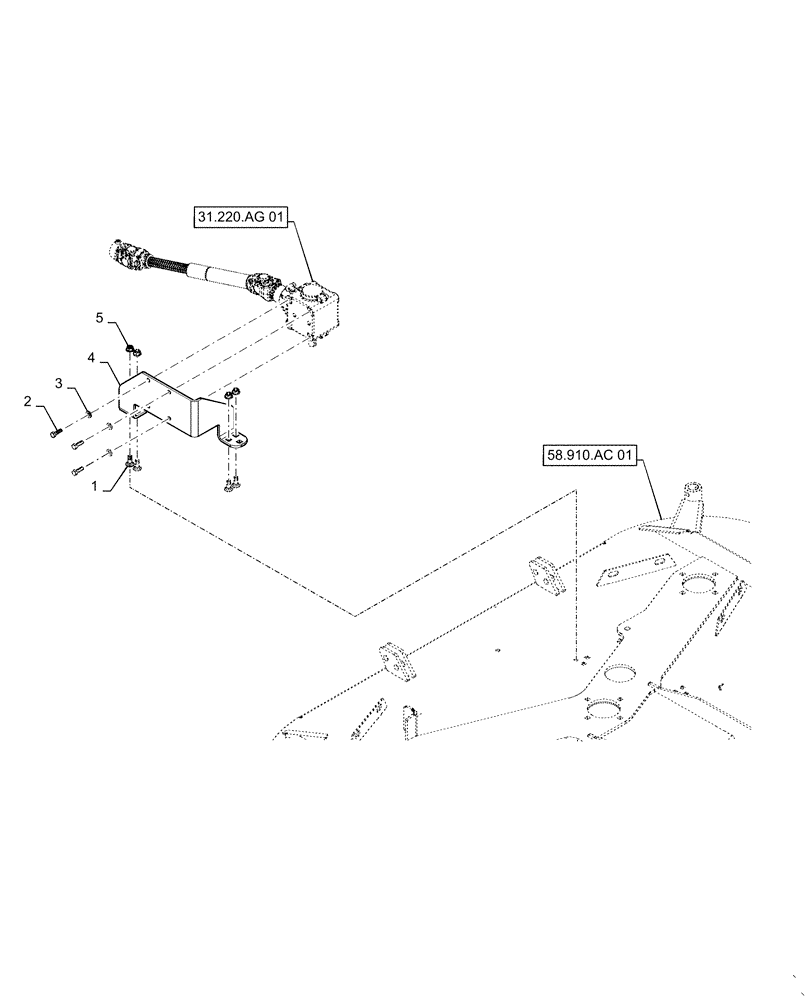

Схема запчастей Case IH MW266S - (58.910.AC[03]) - VAR - 717966206 - MOWER DECK, PTO GEARBOX MOUNT (BSN YFWWB5017) (58) - ATTACHMENTS/HEADERS
58.910.ac 01
1
3
4
2
5
31.220.ag 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AME006608B

CARRIAGE BOLT,3/8" - 16 x 1" L

6шт.

2

AME006786B

BOLT,5/16" - 18 x 1, Gr 5

4шт.

3

AME008152B

WASHER,5/16" ID

4шт.

4

AME453126C

MOUNT

Gearbox

1шт.

5

AME007457B

LOCK NUT,3/8" - 16

Nylon

6шт.

Выбрано товаров: 5
