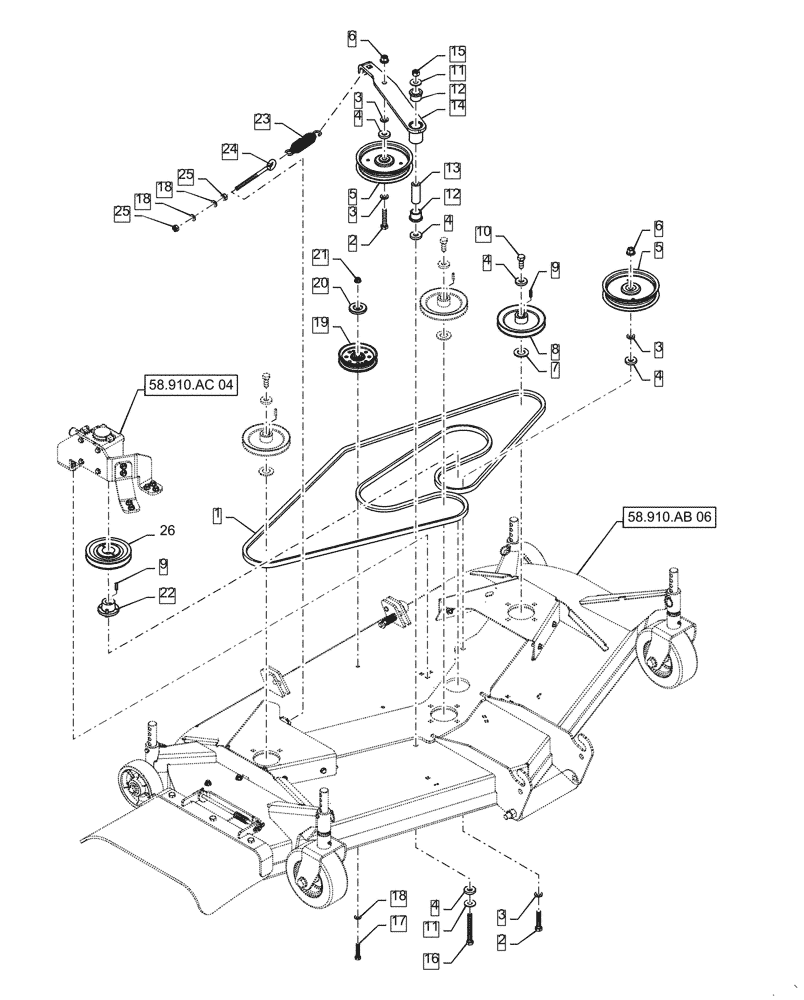

Запчасти Case IH MW266S (58.910.AC[02]) - VAR - 717966206 - MOWER DECK PULLEY DRIVE (ASN YFWWB5017) (58) - ATTACHMENTS/HEADERS

1

AME012769B

BELT,16mm OD x 164.8mm L x 1 Rib

Drive, Mower

1шт.

2

AME007356B

BOLT,M12 x 1.75 x 60mm L, Gr 10.9

2шт.

3

AME008117B

WASHER,12mm ID

4шт.

4

AME451709B

PLATE

Pulley Spacer

3шт.

5

AME012295B

PULLEY

Idler, 6" OD

2шт.

6

AME007492B

NUT,M12 x 1.75, Gr 10

2шт.

7

AME008197B

WASHER,15/16" ID x 1-3/4" OD x 1/8" Thk

3шт.

8

AME012760B

PULLEY

Spindle

3шт.

9

AME008921B

SQUARE KEY,3/16" x 3/16" x 7/8" L

4шт.

10

AME007017B

BOLT,1/2" - 20 x 1-1/4" L

3шт.

11

AME008171B

WASHER,1/2" ID

2шт.

12

AME011969B

BUSHING

Bearing

2шт.

13

AME066079B

BUSHING

Belt Tensioner

1шт.

14

AME453120C

BELT TENSIONER

Arm

1шт.

15

AME007508B

NUT,1/2" - 13, Gr 5

1шт.

16

AME007073B

BOLT,1/2" - 13 x 4" L, Gr 5

1шт.

17

AME006867B

BOLT,3/8" - 16 x 1-3/4" L, Gr 8

1шт.

18

AME008158B

WASHER,3/8" ID

3шт.

19

AME012756B

PULLEY

Idler, 4" OD

1шт.

20

AME011921B

DUST CAP

Cover

1шт.

21

AME007457B

LOCK NUT,3/8" - 16

Nylon

1шт.

22

AME012719B

BUSHING

Mower Gearbox

1шт.

23

AME008751B

SPRING

Swivel End

1шт.

24

AME012541B

EYEBOLT

Spring Tension

1шт.

25

AME007451B

NUT,3/8" - 16

2шт.

26

AME012764B

PULLEY

Gearbox, 5.1" OD

1шт.
