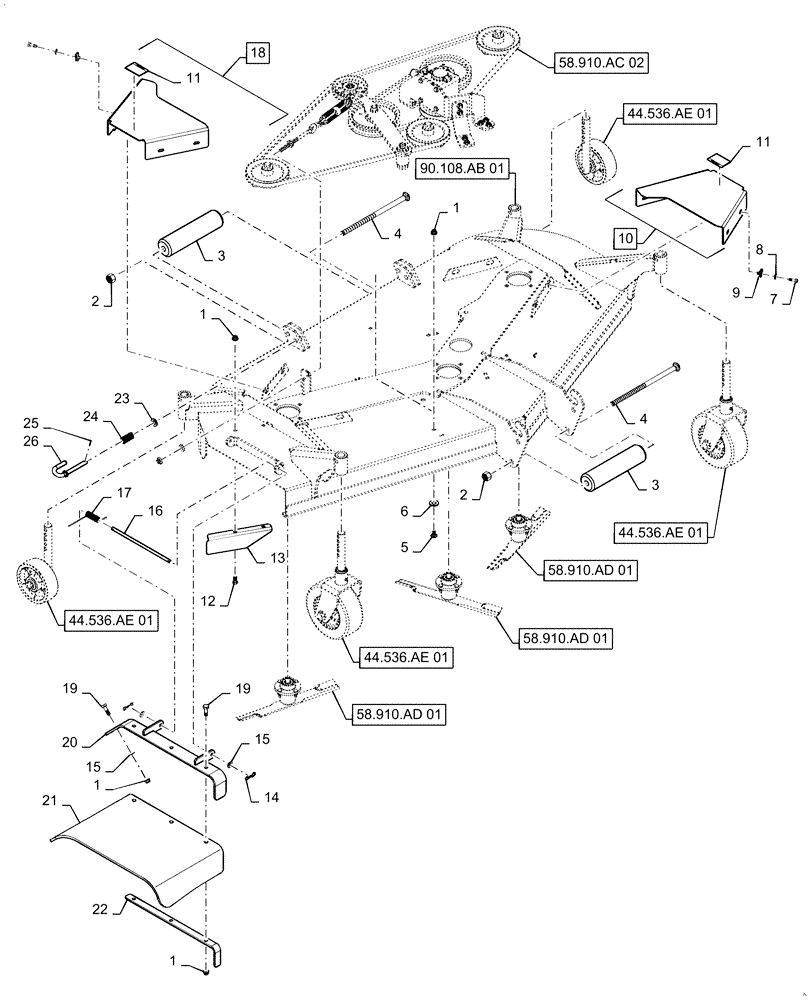

Запчасти Case IH MW266S (58.910.AB[06]) - VAR - 717966206 - MOWER DECK (ASN YFWWB5017) (58) - ATTACHMENTS/HEADERS

1

AME007457B

LOCK NUT,3/8" - 16

Nylon

5шт.

2

AME007546B

NUT,5/8" - 11

Lock

2шт.

3

AME050004B

ROLLER,3" OD x 10" L

2шт.

4

AME007218B

BOLT,5/8" - 11 x 11" L, Gr 2

2шт.

5

AME006606B

CARRIAGE BOLT,3/8" - 16 x 3/4" L

2шт.

6

AME008176B

WASHER,9/16" ID

2шт.

7

AME006792B

BOLT,5/16" - 18 x 1" L, Gr 5

8шт.

8

AME008152B

WASHER,5/16" ID

8шт.

9

AME007432B

NUT,5/16" - 18

Spring

8шт.

10

AME453155C

GUARD

LH, Belt Guard, Incl 11

1шт.

11

AME020356B

WARNING DECAL

2шт.

12

AME006829B

BOLT,3/8" - 16 x 3/4" L

2шт.

13

AME451188B

PLATE

Chute Baffle

1шт.

14

AME008548B

CLIP

Bow - Tie Pin

2шт.

15

AME008158B

WASHER,3/8" ID

3шт.

16

AME451363B

ROD

Chute Pivot

1шт.

17

AME008820B

SPRING

Torsion

1шт.

18

AME453150C

GUARD

RH, Belt Guard, Incl 11

1шт.

19

AME006855B

BOLT,3/8" - 16 x 1-1/4" L

4шт.

20

AME451760B

CHUTE

Mount

1шт.

21

AME050005B

CHUTE

Discharge, Rubber

1шт.

22

AME451186B

PLATE

Chute Retainer

1шт.

23

AME008164B

WASHER,1/2" ID

2шт.

24

AME008675B

COMPRESSION SPRING

J - Latch

2шт.

25

AME008554B

HAIR PIN COTTER,3/32" OD x 3/4" L

2шт.

26

AME066073B

LATCH

J

2шт.
