(58.910.AC[31]) - VAR - 717966146, 717966156 - MOWER DECK, PTO GEARBOX MOUNT, CVT

Запчасти Case IH MW172S (58.910.AC[31]) - VAR - 717966146, 717966156 - MOWER DECK, PTO GEARBOX MOUNT, CVT (58) - ATTACHMENTS/HEADERS

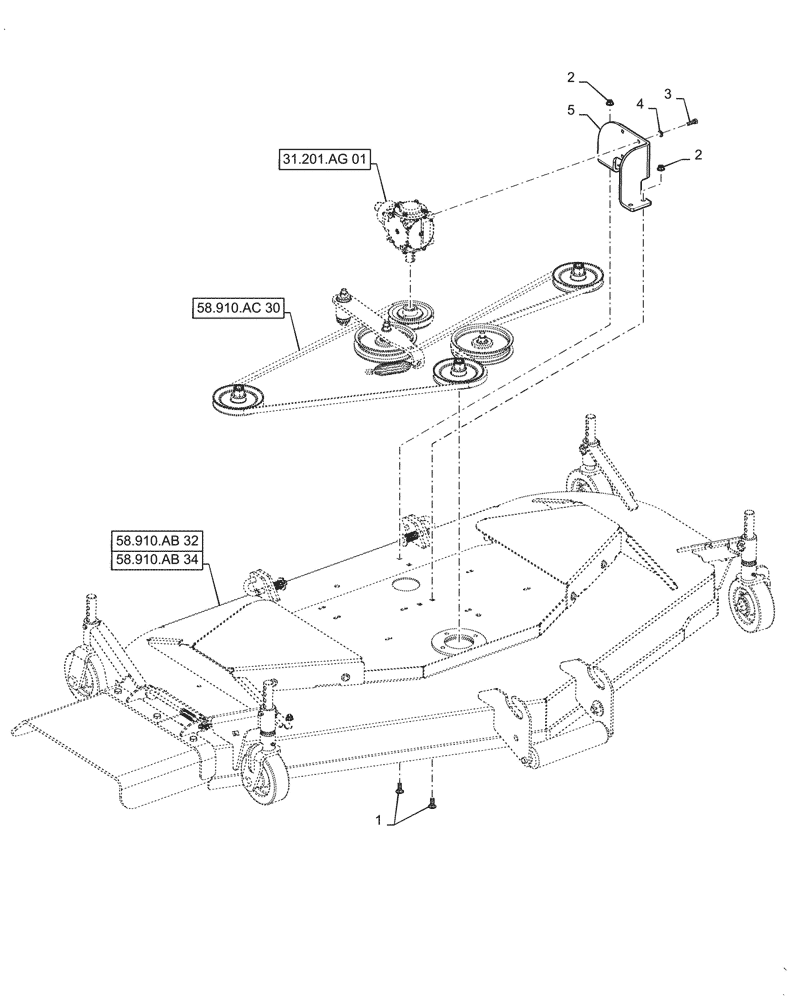

Схема запчастей Case IH MW172S - (58.910.AC[31]) - VAR - 717966146, 717966156 - MOWER DECK, PTO GEARBOX MOUNT, CVT (58) - ATTACHMENTS/HEADERS
58.910.ab 34
5
1
2
3
4
2
58.910.ab 32
58.910.ac 30
31.201.ag 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AME006608B

CARRIAGE BOLT,3/8" - 16 x 1" L

4шт.

2

AME007457B

LOCK NUT,3/8" - 16

4шт.

3

AME006792B

BOLT,5/16" - 18 x 1" L, Gr 5

4шт.

4

AME008152B

WASHER,5/16" ID

4шт.

5

AME452409B

PLATE

PTO Gearbox, Bracket

1шт.

Выбрано товаров: 5
