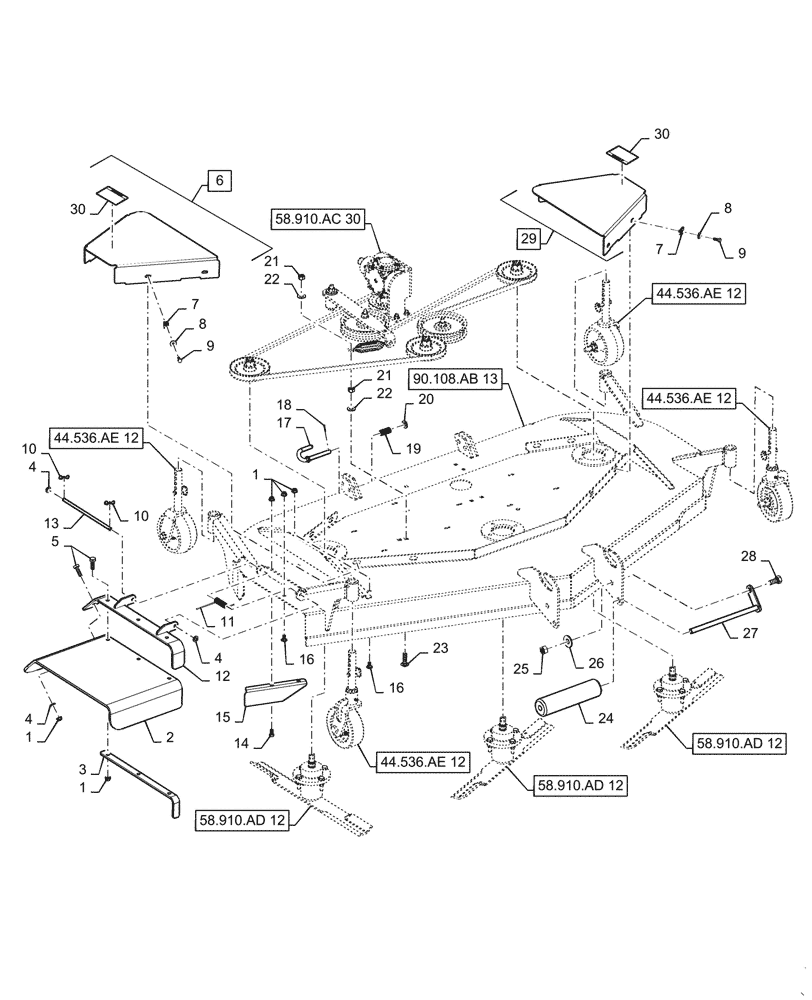

Запчасти Case IH MW172S (58.910.AB[32]) - VAR - 717966156 - MOWER DECK, CVT (58) - ATTACHMENTS/HEADERS

1

AME007457B

LOCK NUT,3/8" - 16

Nylon

8шт.

2

AME050005B

CHUTE

Discharge, Rubber

1шт.

3

AME451186B

PLATE

Chute Retainer

1шт.

4

AME008158B

WASHER,3/8" ID

3шт.

5

AME006855B

BOLT,3/8" - 16 x 1-1/4" L

4шт.

6

AME452190C

GUARD

RH, Belt, Incl 30

1шт.

7

AME007432B

NUT,5/16" - 18

Spring

8шт.

8

AME008151B

WASHER,5/16" ID

8шт.

9

AME006787B

BOLT,5/16" - 18 x 3/4" L

8шт.

10

AME008548B

CLIP

Bow - Tie Pin

2шт.

11

AME008820B

SPRING

Torsion

1шт.

12

AME451150B

CHUTE

Mount

1шт.

13

AME451363B

ROD

Chute Pivot

1шт.

14

AME006829B

BOLT,3/8" - 16 x 3/4" L

2шт.

15

AME451188B

PLATE

Chute Baffle

1шт.

16

AME006606B

CARRIAGE BOLT,3/8" - 16 x 3/4" L

2шт.

17

AME066073B

LATCH

J

2шт.

18

AME008554B

HAIR PIN COTTER,3/32" OD x 3/4" L

2шт.

19

AME008675B

COMPRESSION SPRING

J - Latch

2шт.

20

AME008171B

WASHER,1/2" ID

2шт.

21

AME007508B

NUT,1/2" - 13, Gr 5

Lock

2шт.

22

AME008173B

WASHER,1/2" ID

2шт.

23

AME006669B

BOLT,1/2" - 13 x 1-3/4" L, Gr 2

1шт.

24

AME050004B

ROLLER,3" OD x 10" L

1шт.

25

AME007532B

LOCK NUT,5/8" - 11

1шт.

26

AME008180B

WASHER,11/16" ID x 1-3/4" OD x 5/32" Thk

1шт.

27

AME451190B

MOUNT

Roller

1шт.

28

AME007118B

BOLT,5/8" - 11 x 1-1/4" L, Gr 5

1шт.

29

AME452195C

GUARD

LH, Belt, Incl 30

1шт.

30

AME020356B

WARNING DECAL

2шт.
