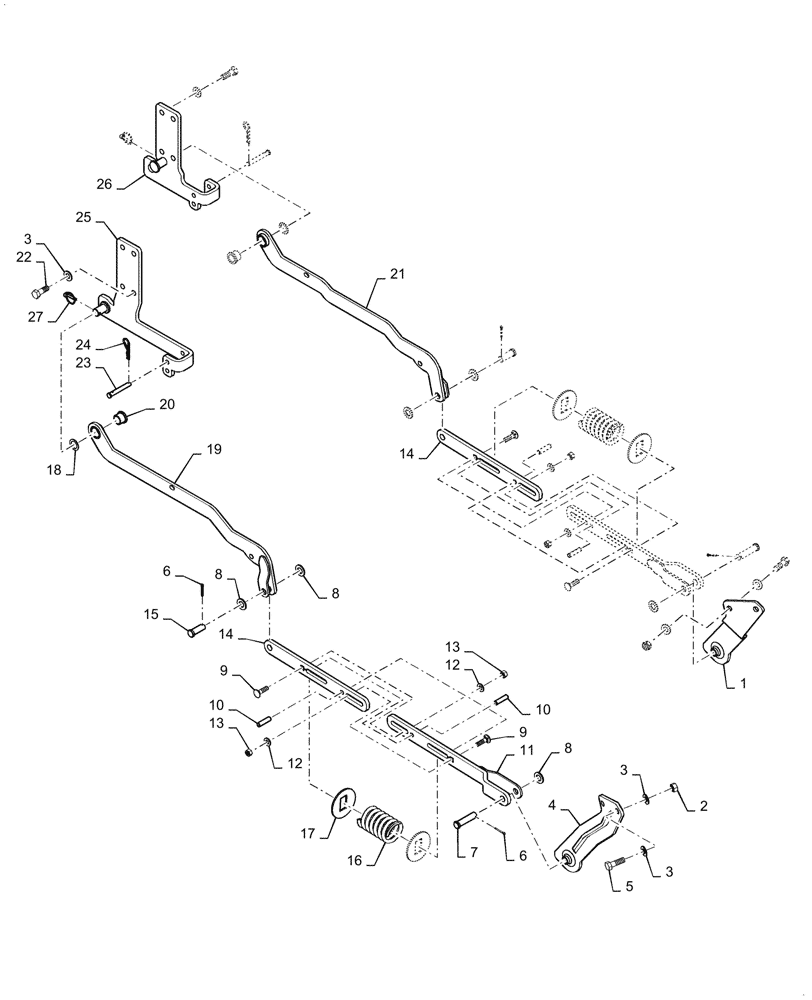

Запчасти Case IH MW172S (58.910.AA[16]) - VAR - 717966146, 717966156 - MOWER DECK MOUNTING PARTS, CVT 72" CL 3 (58) - ATTACHMENTS/HEADERS

1

AME452330B

LIFT ARM

RH

1шт.

2

AME007529B

NUT,M16 x 2

4шт.

3

AME008178B

WASHER,5/8" ID

16шт.

4

AME452335B

LIFT ARM

LH

1шт.

5

AME007324B

BOLT,M16 x 2 x 50mm L

4шт.

6

AME008574B

HAIR PIN COTTER,1-1/4" L x 5/32" Thk

4шт.

7

AME013462B

CLEVIS PIN,3/4" OD x 3" L

2шт.

8

AME008192B

WASHER,13/16" ID x 1-15/32" OD x 1/16" Thk

6шт.

9

AME006669B

BOLT,1/2" - 13 x 1-3/4" L, Gr 2

4шт.

10

AME009004B

PIN,1/2" OD x 2" L

4шт.

11

AME452315B

SHACKLE

Rear

2шт.

12

AME008164B

WASHER,1/2" ID

8шт.

13

AME007508B

NUT,1/2" - 13, Gr 5

Lock

4шт.

14

AME452213B

PLATE

Rear Link

2шт.

15

AME013460B

CLEVIS PIN,3/4" OD x 2" L

2шт.

16

AME008687B

SPRING

Cushion

2шт.

17

AME452219B

PLATE

Spring Stop

4шт.

18

AME008283B

BUSHING,1" ID x 1-1/2" OD

2шт.

19

AME452305B

LINK

LH, Mid

1шт.

20

AME011969B

BUSHING

Bearing

2шт.

21

AME452300B

LINK

RH, Mid

1шт.

22

AME018751B

BOLT,M16 x 2 x 45mm L, Gr 10.9

8шт.

23

AME013453B

CLEVIS PIN,1/2" OD x 3-1/2" L

2шт.

24

AME008624B

COTTER PIN

Hair Clip

2шт.

25

AME452325B

MOUNT

LH, Mid

1шт.

26

AME452320B

MOUNT

RH, Mid

1шт.

27

AME013491B

LINCH PIN,1/4" OD x 1-1/4" L

2шт.
