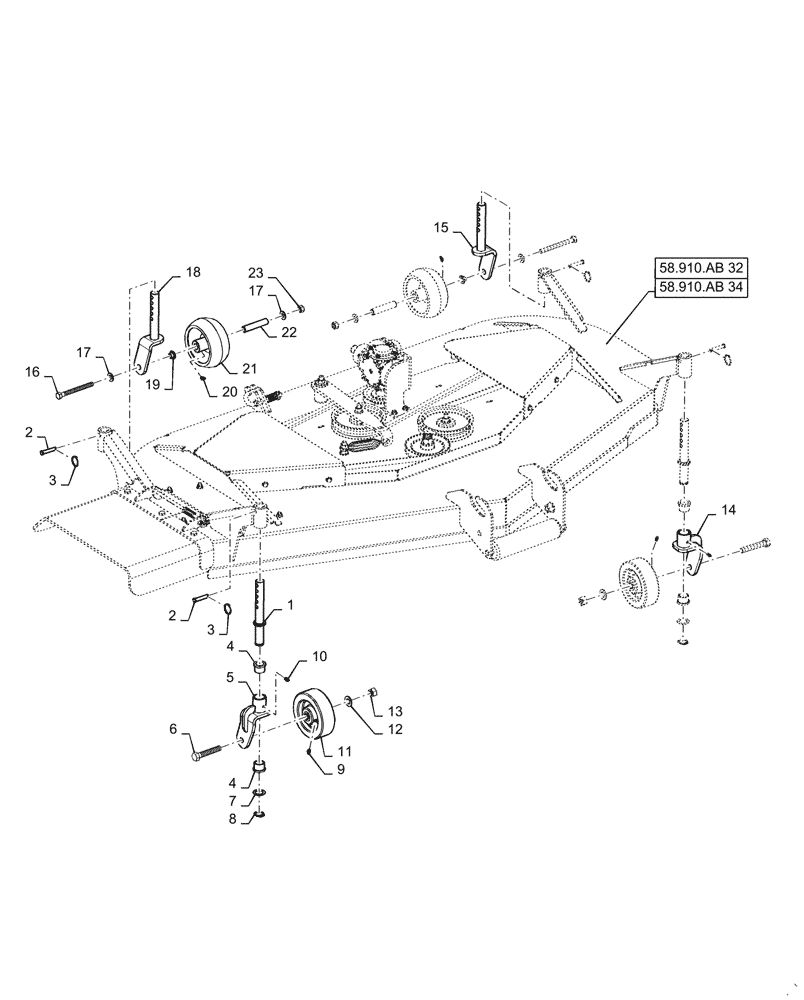

Запчасти Case IH MW172S (44.536.AE[12]) - VAR - 717966146, 717966156 - MOWER DECK WHEELS, CVT (44) - WHEELS

1

AME066154B

SPINDLE

Front Caster

2шт.

2

AME013459B

CLEVIS PIN,0.375" OD x 2" L

4шт.

3

AME008547B

RING

Locking

4шт.

4

AME011969B

BUSHING

Bearing

4шт.

5

AME451170B

YOKE

RH, Front Caster

1шт.

6

AME007170B

BOLT,5/8" - 18 x 3-1/2" L, Gr 5

2шт.

7

AME008283B

BUSHING,1" ID x 1-1/2" OD

2шт.

8

AME013251B

CIRCLIP

Retaining

2шт.

9

AME014512B

LUBE NIPPLE

Grease, Wheel

2шт.

10

AME014505B

LUBE NIPPLE,1/4" - 28

Grease, Yoke

2шт.

11

AME012961B

WHEEL,6" OD

Front

2шт.

12

AME008180B

WASHER,11/16" ID x 1-3/4" OD x 5/32" Thk

2шт.

13

AME007532B

LOCK NUT,5/8" - 11

2шт.

14

AME451175B

YOKE

LH, Front, Caster

1шт.

15

AME451160B

YOKE

LH, Rear, Caster

1шт.

16

AME007080B

BOLT,1/2" - 13 x 5" L

2шт.

17

AME008164B

WASHER,1/2" ID

4шт.

18

AME451155B

YOKE

RH, Rear, Caster

1шт.

19

AME451149B

SPACER

Wheel

2шт.

20

AME014521B

FITTING,1/4" - 28

2шт.

21

AME012960B

WHEEL

Rear, Caster

2шт.

22

AME451148B

SPACER

Hub

2шт.

23

AME007508B

NUT,1/2" - 13, Gr 5

2шт.
