(90.108.AB[12]) - DECALS, 72"

Запчасти Case IH MW172S (90.108.AB[12]) - DECALS, 72" (90) - PLATFORM, CAB, BODYWORK AND DECALS

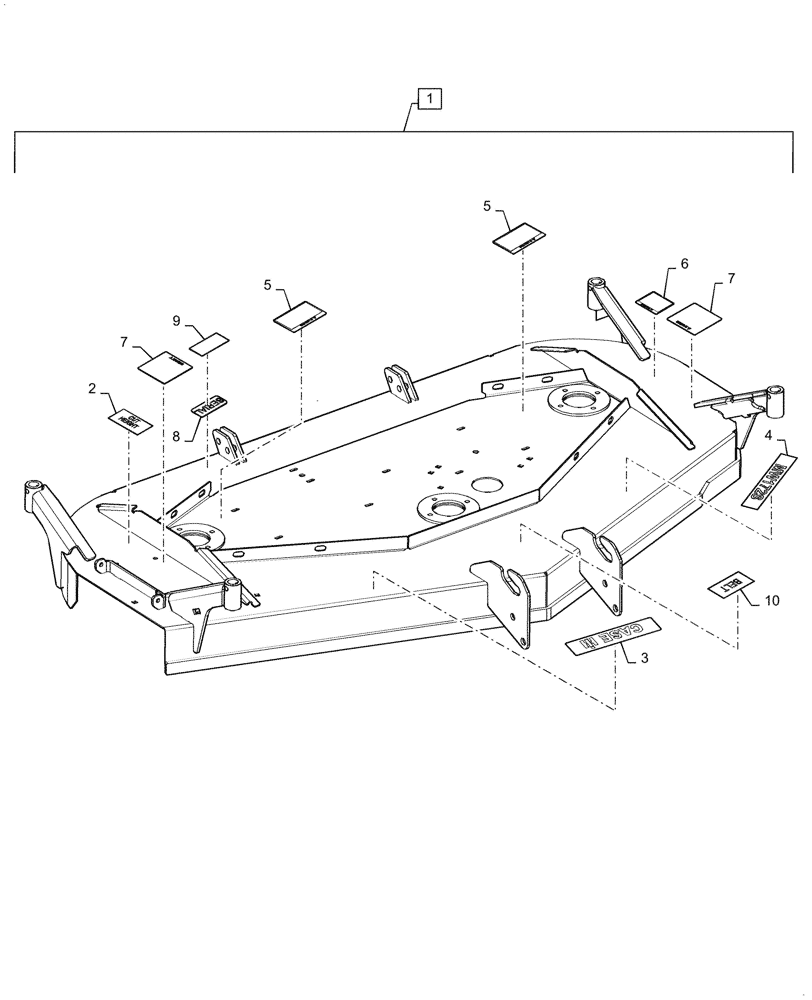

Схема запчастей Case IH MW172S - (90.108.AB[12]) - DECALS, 72" (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
5
2
9
4
6
10
3
5
7
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AME452130C

MOWER DECK

Incl 2 - 10

1шт.

2

AME020296B

DECAL

Cut Height

1шт.

3

AME020339C

DECAL

CASE IH

1шт.

4

AME020354C

DECAL

MW172S

1шт.

5

AME020357B

WARNING DECAL

Shield Missing / Open

2шт.

6

AME020358B

WARNING DECAL

Safety Instruction, Operator

1шт.

7

AME020359B

DANGER DECAL

Rotating Blades / Flying Objects

2шт.

8

NSS

NOT SOLD SEPARAT

Serial Plate, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Laminate Cover, Incl in 1

1шт.

10

AME020295B

DECAL

Belt Routing

1шт.
