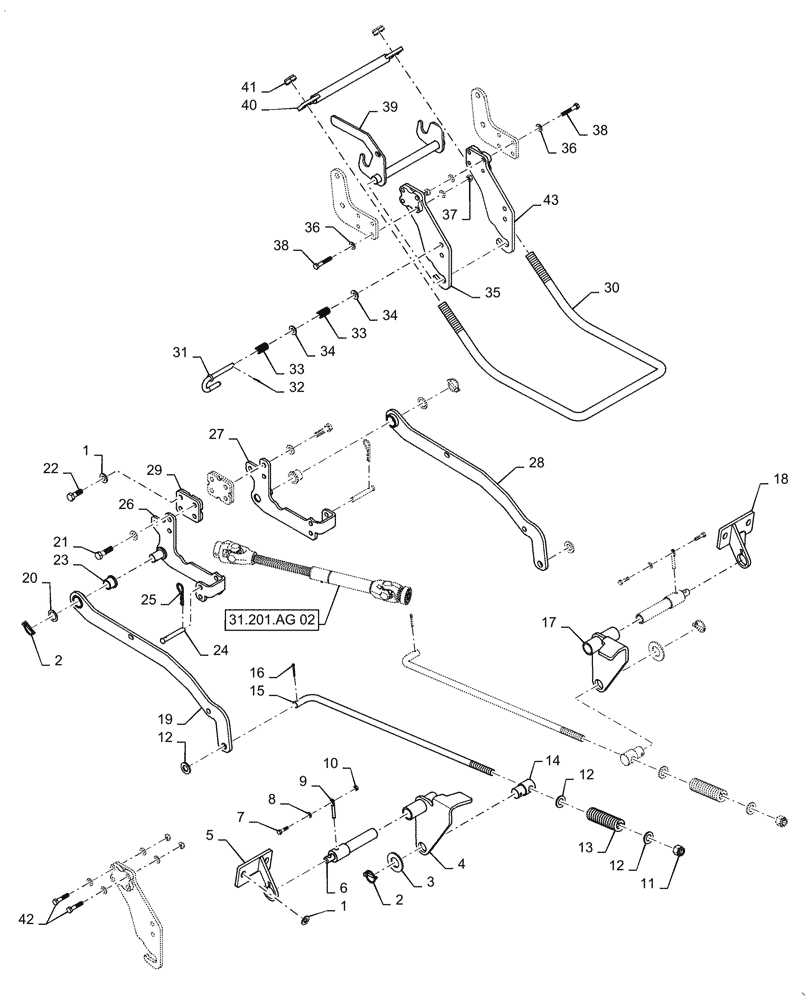

Запчасти Case IH MW172S (58.910.AA[14]) - VAR - 717966086, 717966096 - MOWER DECK MOUNTING PARTS, 72" CL 3 (58) - ATTACHMENTS/HEADERS

1

AME008176B

WASHER,9/16" ID

12шт.

2

AME013491B

LINCH PIN,1/4" OD x 1-1/4" L

4шт.

3

AME008206B

WASHER,1-1/4" ID

2шт.

4

AME452160B

BRACKET

LH, Lift

1шт.

5

AME452065B

BRACKET

LH, Anti - Sway

1шт.

6

AME066090B

PIN

Deck Lift

2шт.

7

AME006798B

BOLT,5/16" - 18 x 1-1/4" L, Gr 5

2шт.

8

AME008152B

WASHER,5/16" ID

2шт.

9

AME013473B

PIN

Retainer

2шт.

10

AME007433B

NUT,5/16" - 18, Gr 5

Lock

2шт.

11

AME007577B

LOCK NUT,3/4" - 16, Gr 2

Nylon

2шт.

12

AME008192B

WASHER,13/16" ID x 1-15/32" OD x 1/16" Thk

6шт.

13

AME008684B

SPRING

Cushion Lift

2шт.

14

AME066143B

PIN

Deck Lift

2шт.

15

AME066144B

LIFTING ROD

Deck

2шт.

16

AME008574B

HAIR PIN COTTER,1-1/4" L x 5/32" Thk

2шт.

17

AME452155B

BRACKET

RH, Lift

1шт.

18

AME452060B

BRACKET

RH, Anti - Sway

1шт.

19

AME452145B

LINK

LH, Rear

1шт.

20

AME008283B

BUSHING,1" ID x 1-1/2" OD

2шт.

21

AME018726B

BOLT,M14 x 2 x 50mm L, Gr 10.9

6шт.

22

AME018725B

BOLT,M14 x 2 x 40mm L, Gr 10.9

2шт.

23

AME011969B

BUSHING

Bearing

2шт.

24

AME013453B

CLEVIS PIN,1/2" OD x 3-1/2" L

2шт.

25

AME008624B

COTTER PIN

Hair Clip

2шт.

26

AME452170B

MOUNT

LH, Upstop Hanger

1шт.

27

AME452165B

MOUNT

RH, Upstop Hanger

1шт.

28

AME452140B

LINK

RH, Rear

1шт.

29

AME452150B

BRACKET

Upstop Spacer

2шт.

30

AME066075B

ROD

Front Mower Mount

1шт.

31

AME066073B

LATCH

J

1шт.

32

AME008554B

HAIR PIN COTTER,3/32" OD x 3/4" L

1шт.

33

AME008675B

COMPRESSION SPRING

J - Latch

2шт.

34

AME008173B

WASHER,1/2" ID

2шт.

35

AME452180B

MOUNT

LH, Front

1шт.

36

AME008162B

WASHER,7/16" ID

16шт.

37

AME007472B

NUT,M10 x 1.25

8шт.

38

AME018620B

BOLT,M10 x 1.25 x 60mm L, Gr 8.8

8шт.

Quantity 8 If Grille Guard Installed, Quantity 6 If No Grille Guard

1шт.

39

AME451520B

LATCH

Handle

1шт.

40

AME451525B

HANGER

Front Mower Mount Rod

1шт.

41

AME007712B

LOCK NUT,1" - 14

Jam

2шт.

42

AME018619B

BOLT,M10 x 1.25 x 50mm L, Gr 10.9

2шт.

Used Only If Grille Guard Not Installed (LH Only)

1шт.

43

AME452175B

MOUNT

RH, Front

1шт.
