(58.910.AC[20]) - VAR - 717966176 - MOWER DECK, PTO GEARBOX MOUNT (ASN YDWWL5001)

Запчасти Case IH MW166S (58.910.AC[20]) - VAR - 717966176 - MOWER DECK, PTO GEARBOX MOUNT (ASN YDWWL5001) (58) - ATTACHMENTS/HEADERS

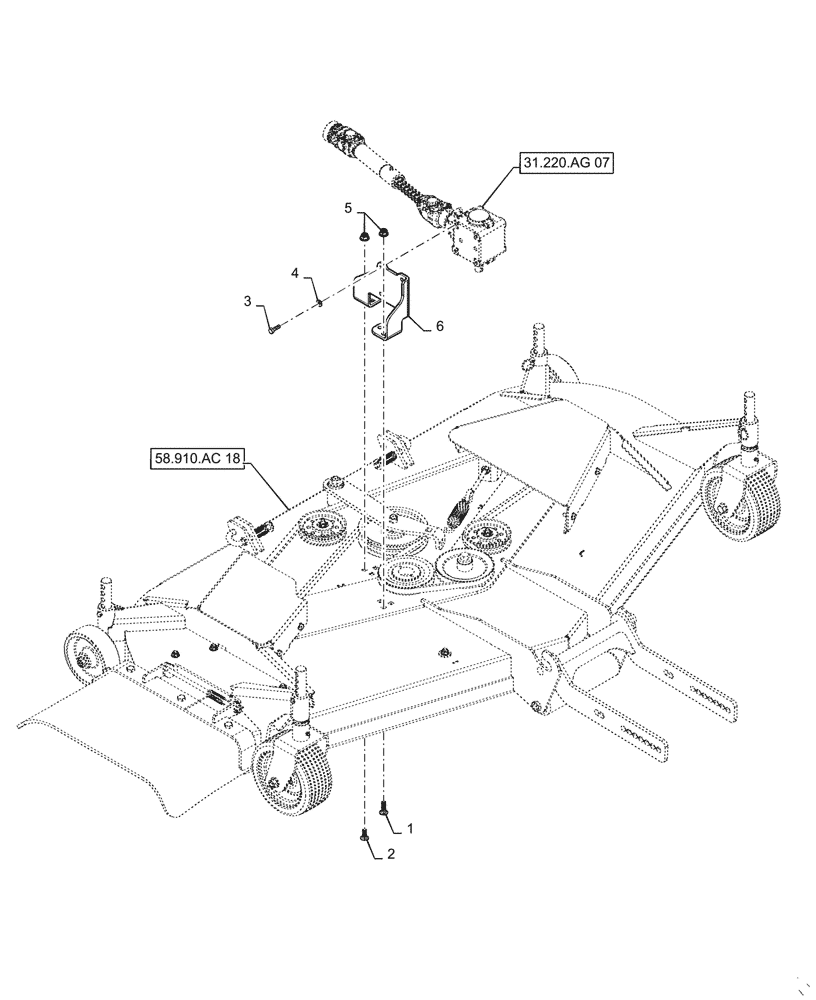

Схема запчастей Case IH MW166S - (58.910.AC[20]) - VAR - 717966176 - MOWER DECK, PTO GEARBOX MOUNT (ASN YDWWL5001) (58) - ATTACHMENTS/HEADERS
58.910.ac 18
2
4
3
5
6
1
31.220.ag 07
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AME006612B

BOLT,3/8" - 16 x 1-1/4" L, Gr 5

3шт.

2

AME006608B

CARRIAGE BOLT,3/8" - 16 x 1" L

3шт.

3

AME006786B

BOLT,5/16" - 18 x 1, Gr 5

4шт.

4

AME008152B

WASHER,5/16" ID

4шт.

5

AME007457B

LOCK NUT,3/8" - 16

Nylon

6шт.

6

AME451904B

PLATE

Gearbox Mounting

1шт.

Выбрано товаров: 6
