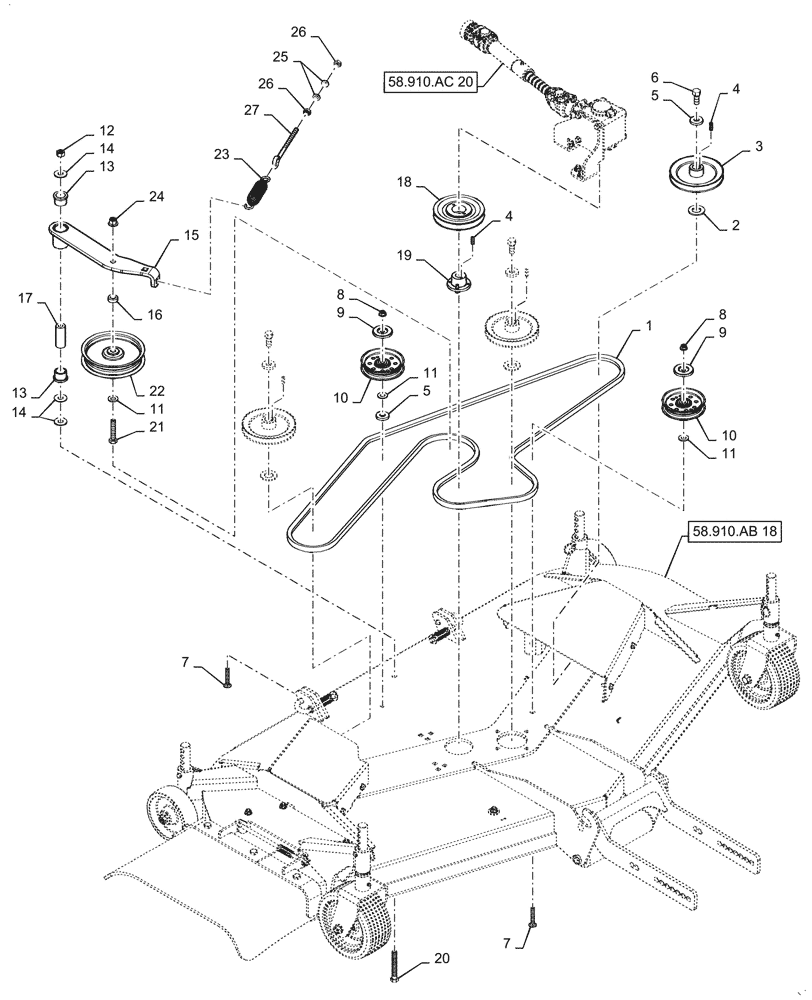

Запчасти Case IH MW166S (58.910.AC[18]) - VAR - 717966176 - MOWER DECK PULLEY DRIVE (ASN YDWWL5001) (58) - ATTACHMENTS/HEADERS

1

AME012767B

V-BELT,16mm OD x 139.3mm L x 1 Rib

Mower Deck

1шт.

2

AME008197B

WASHER,15/16" ID x 1-3/4" OD x 1/8" Thk

3шт.

3

AME012760B

PULLEY

Spindle

3шт.

4

AME008921B

SQUARE KEY,3/16" x 3/16" x 7/8" L

4шт.

5

AME451709B

PLATE

Pulley Spacer

3шт.

6

AME007017B

BOLT,1/2" - 20 x 1-1/4" L

3шт.

7

AME006618B

BOLT,3/8" - 16 x 2-1/4" L

2шт.

8

AME007457B

LOCK NUT,3/8" - 16

Nylon

2шт.

9

AME011921B

DUST CAP

Cover

2шт.

10

AME012756B

PULLEY

Idler, 4" OD

2шт.

11

AME008164B

WASHER,1/2" ID

2шт.

12

AME007508B

NUT,1/2" - 13, Gr 5

Lock

1шт.

13

AME011969B

BUSHING

Bearing

2шт.

14

AME008171B

WASHER,1/2" ID

3шт.

15

AME451950B

BELT TENSIONER

Arm

1шт.

16

AME614082B

SPACER,3/8" Thk

1шт.

17

AME066079B

BUSHING

Belt Tensioner

1шт.

18

AME012756B

PULLEY

Gearbox, 5.1" OD

1шт.

19

AME012719B

BUSHING

Mower Gearbox

1шт.

20

AME007068B

BOLT,1/2" - 13 x 3-1/2" L, Gr 5

1шт.

21

AME018676B

BOLT,M12 x 1.75 x 65mm L, Gr 8.8

1шт.

22

AME012295B

PULLEY

Idler, 6" OD

1шт.

23

AME008687B

SPRING

Swivel End

1шт.

24

AME007492B

NUT,M12 x 1.75, Gr 10

Lock

1шт.

25

AME008158B

WASHER,3/8" ID

2шт.

26

AME007451B

NUT,3/8" - 16

2шт.

27

AME012541B

EYEBOLT

Spring Tension

1шт.
