(58.910.AA[09]) - VAR - 717966176 - MOWER DECK MOUNTING PARTS, 66", CL 2 SERIES 2 (ASN YDWWL5001)

Запчасти Case IH MW166S (58.910.AA[09]) - VAR - 717966176 - MOWER DECK MOUNTING PARTS, 66", CL 2 SERIES 2 (ASN YDWWL5001) (58) - ATTACHMENTS/HEADERS

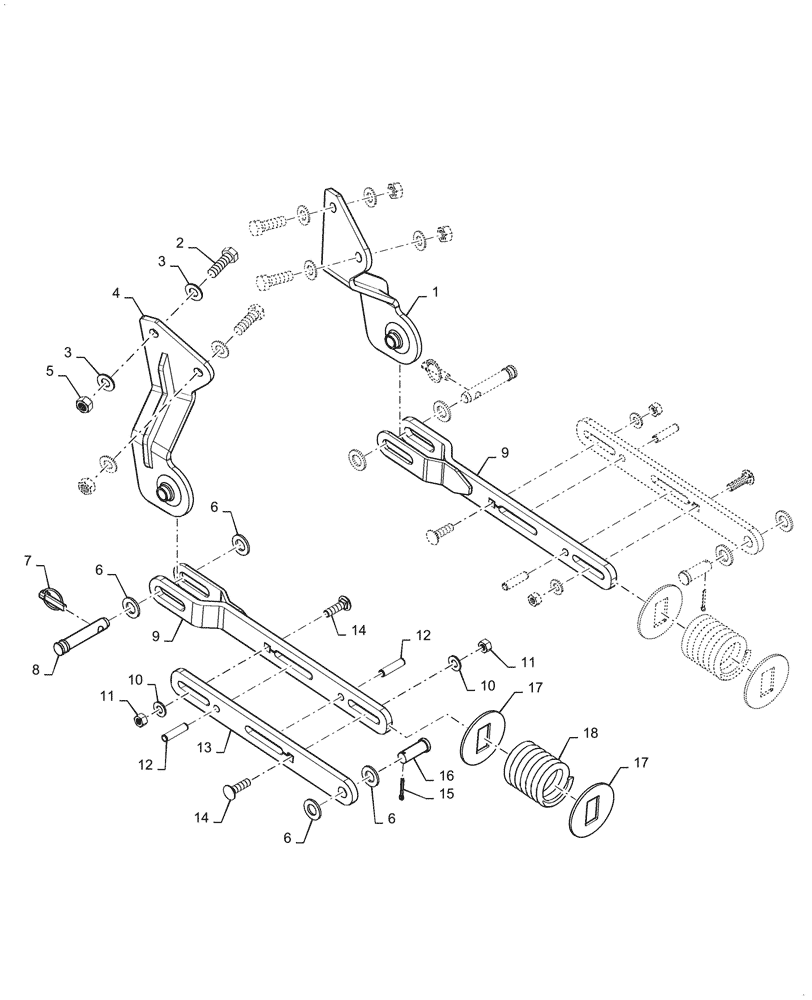

Схема запчастей Case IH MW166S - (58.910.AA[09]) - VAR - 717966176 - MOWER DECK MOUNTING PARTS, 66", CL 2 SERIES 2 (ASN YDWWL5001) (58) - ATTACHMENTS/HEADERS
18
6
3
7
5
14
17
16
15
8
11
9
12
1
10
2
14
6
3
17
11
9
6
10
13
6
12
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AME451945B

ARM

LH, Lift

1шт.

2

AME007324B

BOLT,M16 x 2 x 50mm L

4шт.

3

AME008178B

WASHER,5/8" ID

8шт.

4

AME451945B

ARM

RH, Lift

1шт.

5

AME007529B

NUT,M16 x 2

4шт.

6

AME008192B

WASHER,13/16" ID x 1-15/32" OD x 1/16" Thk

8шт.

7

AME013484B

PIN,11/64" OD x 1-3/4" L

Linch

2шт.

8

AME013397B

PIN,3/4" OD x 4-1/2" L

2шт.

9

AME452345B

ARM

Shackle

2шт.

10

AME008164B

WASHER,1/2" ID

4шт.

11

AME007508B

NUT,1/2" - 13, Gr 5

4шт.

12

AME009004B

PIN,1/2" OD x 2" L

4шт.

13

AME451906B

PLATE

Rear Link

2шт.

14

AME006669B

BOLT,1/2" - 13 x 1-3/4" L, Gr 2

4шт.

15

AME008574B

HAIR PIN COTTER,1-1/4" L x 5/32" Thk

2шт.

16

AME013460B

CLEVIS PIN,3/4" OD x 2" L

2шт.

17

AME452219B

PLATE

Spring Stop

4шт.

18

AME008687B

SPRING

Cushion

2шт.
