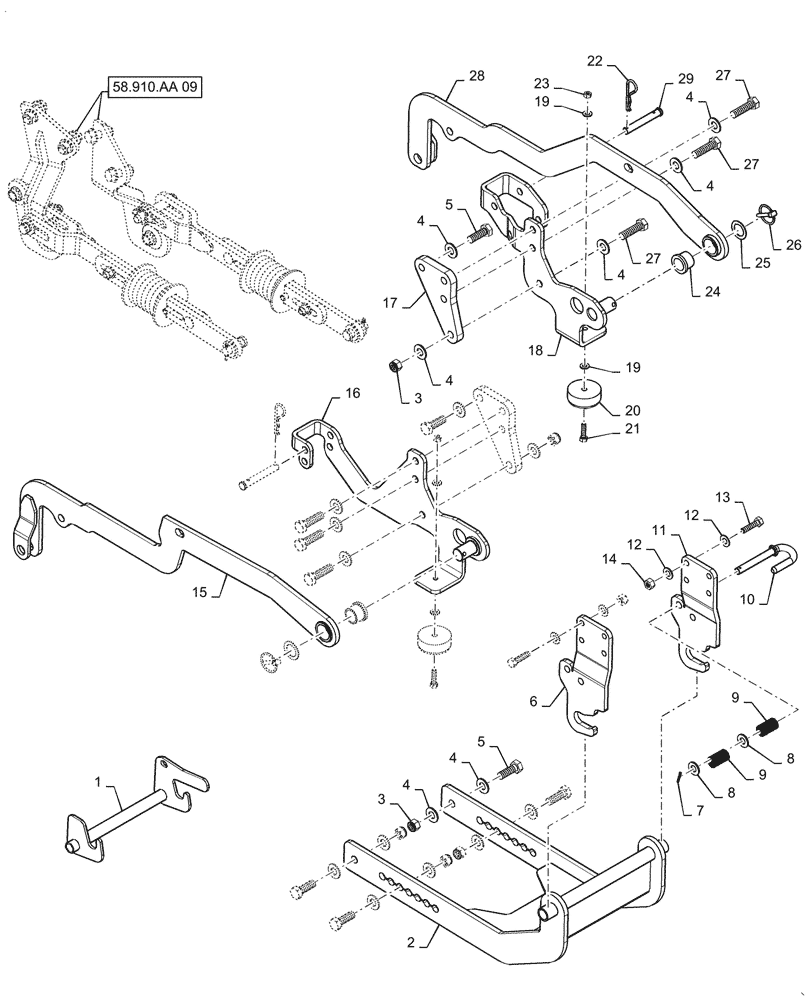

Запчасти Case IH MW166S (58.910.AA[08]) - VAR - 717966176 - MOWER DECK MOUNTING PARTS, 66". CL 2 SERIES 2 (ASN YDWWL5001) (58) - ATTACHMENTS/HEADERS

1

AME451930B

BRACKET

Latch

1шт.

2

AME453020B

LINK

Lower Mount

1шт.

3

AME007519B

NUT,M14 x 2mm Thk, Gr 10

Nylon - Lock

6шт.

4

AME008176B

WASHER,9/16" ID

18шт.

5

AME018725B

BOLT,M14 x 2 x 40mm L, Gr 10.9

6шт.

6

AME453006B

PLATE

RH, Front Mount

1шт.

7

AME008554B

HAIR PIN COTTER,3/32" OD x 3/4" L

1шт.

8

AME008164B

WASHER,1/2" ID

2шт.

9

AME008675B

COMPRESSION SPRING

J - Latch

2шт.

10

AME066073B

LATCH

J

1шт.

11

AME453007B

PLATE

LH, Front Mount

1шт.

12

AME008162B

WASHER,7/16" ID

16шт.

13

AME007375B

BOLT,M10 x 1.5 x 40mm L

8шт.

14

AME007473B

NUT,M10 x 1.5mm

8шт.

15

AME453000B

LINK

RH, Mid Linkage

1шт.

16

AME453010B

HANGER

RH, Upstop

1шт.

17

AME453003B

PLATE

Spacer

2шт.

18

AME453015B

HANGER

LH, Upstop

1шт.

19

AME008152B

WASHER,5/16" ID

4шт.

20

AME013679B

RUBBER BUMPER

Upstop Hanger

2шт.

21

AME006798B

BOLT,5/16" - 18 x 1-1/4" L, Gr 5

2шт.

22

AME008624B

COTTER PIN

Hair Clip

2шт.

23

AME007433B

NUT,5/16" - 18, Gr 5

Lock

2шт.

24

AME011969B

BUSHING

Bearing

2шт.

25

AME008283B

BUSHING,1" ID x 1-1/2" OD

2шт.

26

AME013491B

LINCH PIN,1/4" OD x 1-1/4" L

2шт.

27

AME018726B

BOLT,M14 x 2 x 50mm L, Gr 10.9

6шт.

28

AME453005B

LINK

LH, Mid Linkage

1шт.

29

AME013453B

CLEVIS PIN,1/2" OD x 3-1/2" L

2шт.
