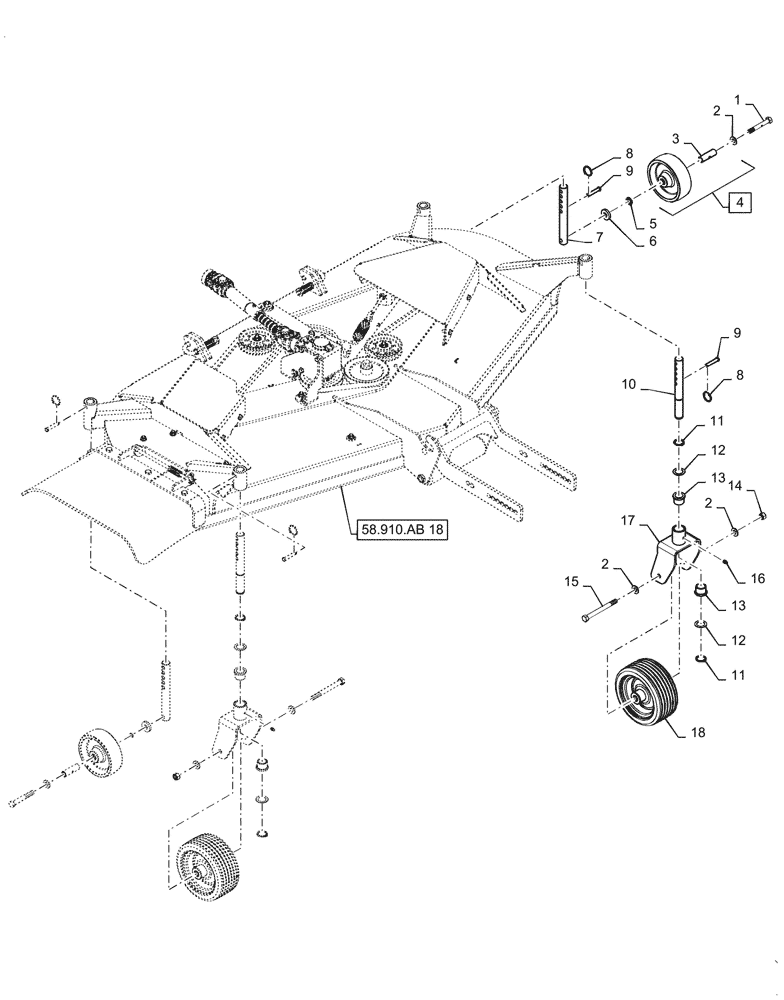

Запчасти Case IH MW166S (44.536.AE[07]) - VAR - 717966176 - MOWER DECK WHEELS (ASN YDWWL5001) (44) - WHEELS

1

AME007081B

BOLT,1/2" OD x 3-3/8" L

2шт.

2

AME008164B

WASHER,1/2" ID

6шт.

3

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 4

2шт.

4

AME012995B

CASTER

Rear Wheel, 6" OD, Incl 3

2шт.

5

AME011702B

O-RING

Rear Wheel

2шт.

6

AME451709B

PLATE

Spacer

2шт.

7

AME451911B

SPINDLE

Wheel

2шт.

8

AME008547B

RING

Locking

4шт.

9

AME013459B

CLEVIS PIN,0.375" OD x 2" L

4шт.

10

AME066125B

SPINDLE

Front Caster

2шт.

11

AME013251B

CIRCLIP

Retaining

4шт.

12

AME008283B

BUSHING,1" ID x 1-1/2" OD

4шт.

13

AME011969B

BUSHING

Bearing

4шт.

14

AME007508B

NUT,1/2" - 13, Gr 5

2шт.

15

AME007082B

BOLT,1/2" - 13 x 5-1/4" L, Gr 5

2шт.

16

AME014505B

LUBE NIPPLE,1/4" - 28

Grease

2шт.

17

AME451935B

YOKE

Front Caster

2шт.

18

AME012959B

CASTER

Front Wheel

2шт.
