(58.910.AC[19]) - VAR - 717966016 - MOWER DECK, PTO GEARBOX MOUNT (BSN YDWWL5001)

Запчасти Case IH MW166S (58.910.AC[19]) - VAR - 717966016 - MOWER DECK, PTO GEARBOX MOUNT (BSN YDWWL5001) (58) - ATTACHMENTS/HEADERS

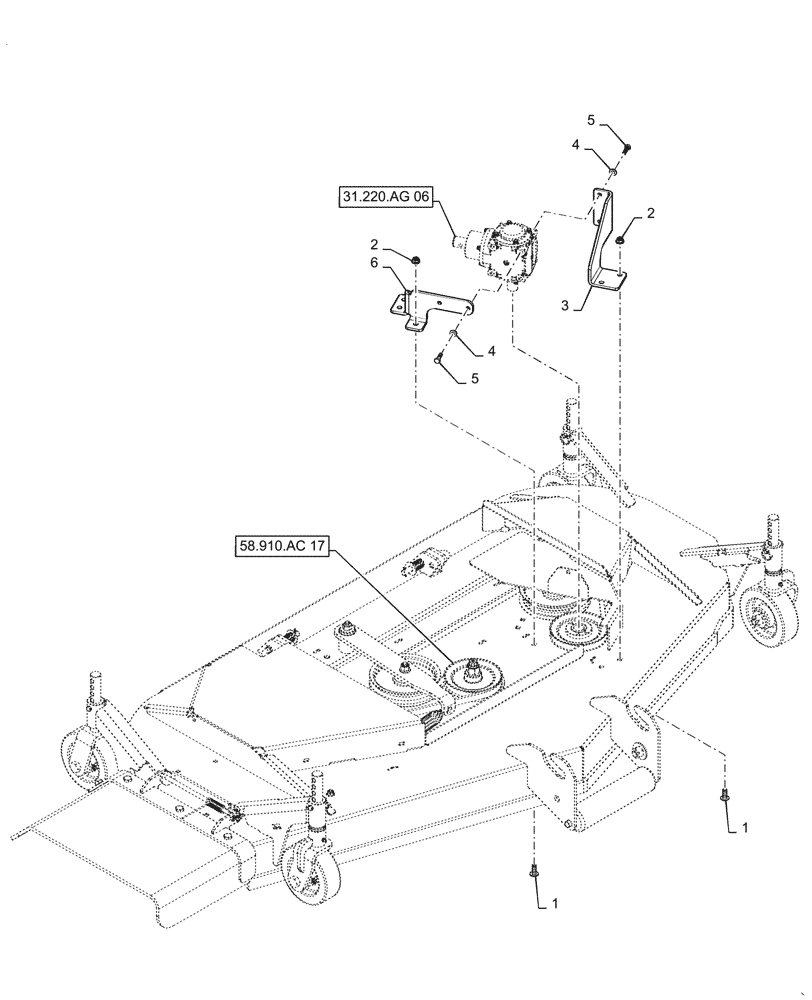

Схема запчастей Case IH MW166S - (58.910.AC[19]) - VAR - 717966016 - MOWER DECK, PTO GEARBOX MOUNT (BSN YDWWL5001) (58) - ATTACHMENTS/HEADERS
31.220.ag 06
6
5
2
1
5
2
3
4
4
1
58.910.ac 17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AME006608B

CARRIAGE BOLT,3/8" - 16 x 1" L

5шт.

2

AME007457B

LOCK NUT,3/8" - 16

5шт.

3

AME451362B

PLATE

LH, Gearbox Mount

1шт.

4

AME008152B

WASHER,5/16" ID

4шт.

5

AME006792B

BOLT,5/16" - 18 x 1" L, Gr 5

4шт.

6

AME451357B

PLATE

RH, Gearbox Mount

1шт.

Выбрано товаров: 6
