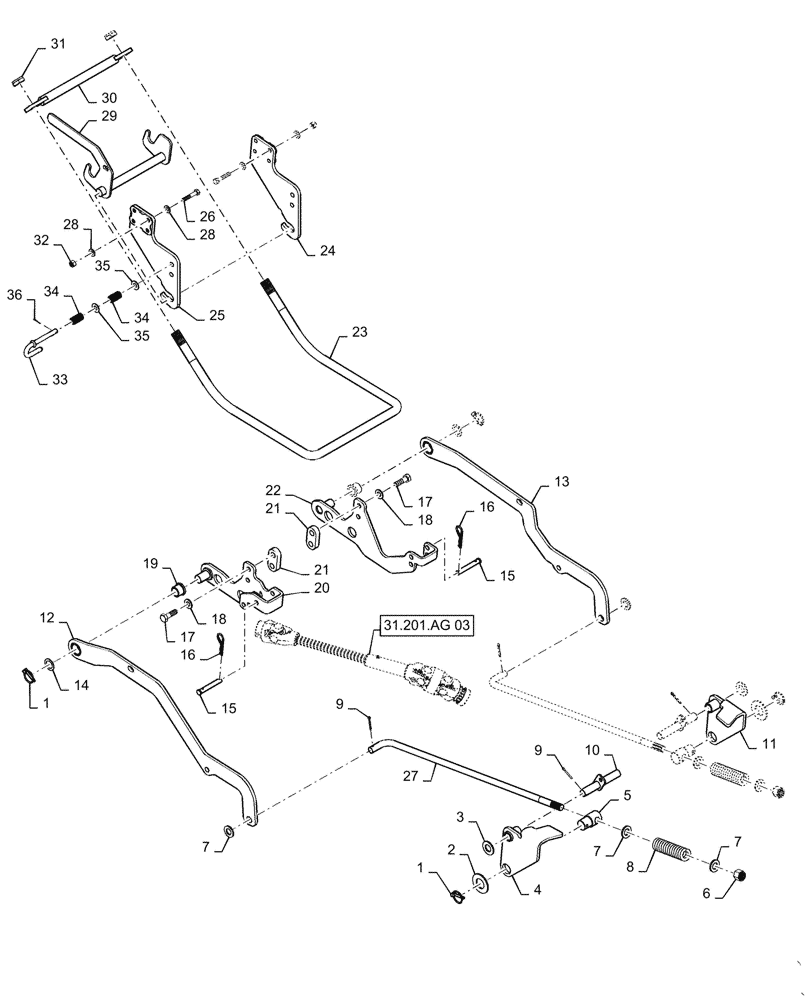

Запчасти Case IH MW166S (58.910.AA[07]) - VAR - 717966016 - MOWER DECK MOUNTING PARTS, 66", CL 2 SERIES 1 (BSN YDWWL5001) (58) - ATTACHMENTS/HEADERS

1

AME013491B

LINCH PIN,1/4" OD x 1-1/4" L

4шт.

2

AME008206B

WASHER,1-1/4" ID

2шт.

3

AME008197B

WASHER,15/16" ID x 1-3/4" OD x 1/8" Thk

2шт.

4

AME451655B

BRACKET

LH, Lift

1шт.

5

AME066143B

PIN

Deck Lift

2шт.

6

AME007577B

LOCK NUT,3/4" - 16, Gr 2

2шт.

7

AME008192B

WASHER,13/16" ID x 1-15/32" OD x 1/16" Thk

6шт.

8

AME008684B

SPRING

Cushion Lift

2шт.

9

AME008574B

HAIR PIN COTTER,1-1/4" L x 5/32" Thk

4шт.

10

AME451670B

PIN

Draft

2шт.

11

AME451650B

BRACKET

RH, Lift

1шт.

12

AME451630B

LINK

LH, Rear

1шт.

13

AME451625B

LINK

RH, Rear

1шт.

14

AME008283B

BUSHING,1" ID x 1-1/2" OD

2шт.

15

AME013453B

CLEVIS PIN,1/2" OD x 3-1/2" L

2шт.

16

AME008624B

COTTER PIN

Hair Clip

2шт.

17

AME018705B

BOLT,M14 x 2 x 45mm L, Gr 10.9

4шт.

18

AME008176B

WASHER,9/16" ID

4шт.

19

AME011969B

BUSHING

Bearing

2шт.

20

AME451640B

MOUNT

LH, Upstop Hanger

1шт.

21

AME451603B

PLATE

Spacer

2шт.

22

AME451635B

MOUNT

RH, Upstop Hanger

1шт.

23

AME066075B

ROD

Front Mower Mount

1шт.

24

AME451660B

HOOK

RH, Front Mount

1шт.

25

AME451665B

HOOK

LH, Front Mount

1шт.

26

AME007378B

BOLT,M10 x 1.5 x 55mm L, Gr 8.8

8шт.

27

AME066142B

ROD

Deck Lift

2шт.

28

AME008162B

WASHER,7/16" ID

16шт.

29

AME451645B

LATCH

Hook

1шт.

30

AME451525B

HANGER

Front Mower Mount Rod

1шт.

31

AME007712B

LOCK NUT,1" - 14

Jam

2шт.

32

AME007473B

NUT,M10 x 1.5mm

8шт.

33

AME066073B

LATCH

J

1шт.

34

AME008675B

COMPRESSION SPRING

J - Latch

2шт.

35

AME008173B

WASHER,1/2" ID

2шт.

36

AME008554B

HAIR PIN COTTER,3/32" OD x 3/4" L

1шт.
