(44.536.AE[06]) - VAR - 717966016 - MOWER DECK WHEELS (BSN YDWWL5001)

Запчасти Case IH MW166S (44.536.AE[06]) - VAR - 717966016 - MOWER DECK WHEELS (BSN YDWWL5001) (44) - WHEELS

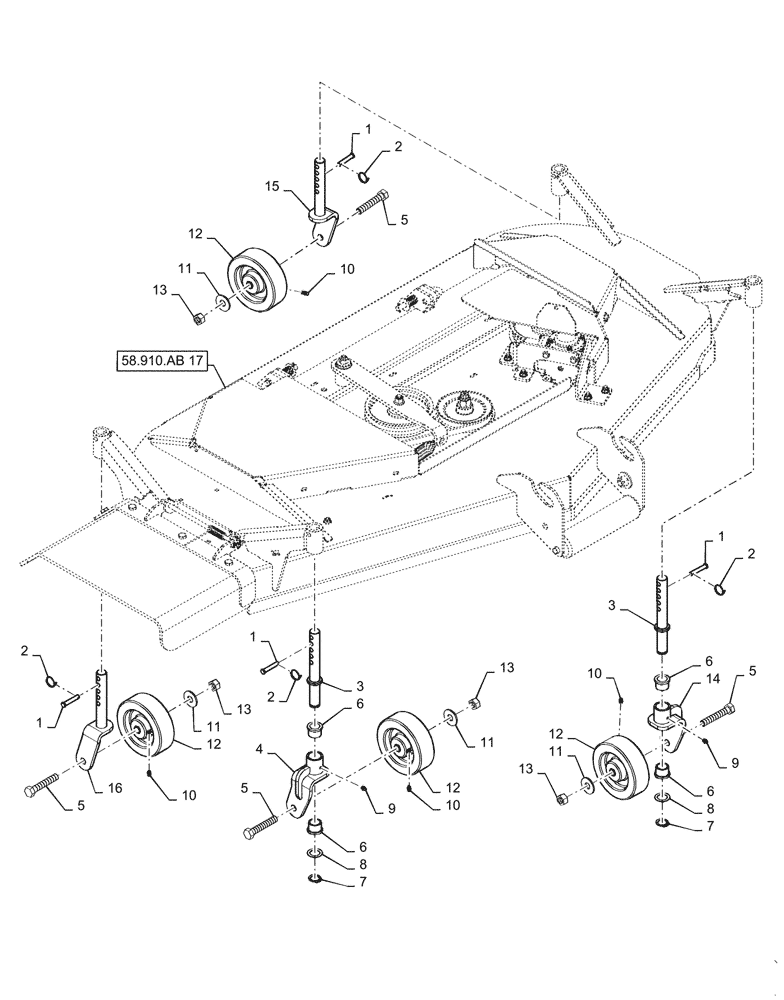

Схема запчастей Case IH MW166S - (44.536.AE[06]) - VAR - 717966016 - MOWER DECK WHEELS (BSN YDWWL5001) (44) - WHEELS
58.910.ab 17
12
6
2
1
10
8
11
5
3
11
5
6
4
15
2
5
3
9
6
5
11
11
13
1
12
7
10
12
13
8
13
2
1
1
7
13
10
12
6
16
10
14
9
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AME013459B

CLEVIS PIN,0.375" OD x 2" L

4шт.

2

AME008547B

RING

Locking

4шт.

3

AME066154B

SPINDLE

Front Caster

2шт.

4

AME451170B

YOKE

RH, Front, Caster

1шт.

5

AME007170B

BOLT,5/8" - 18 x 3-1/2" L, Gr 5

4шт.

6

AME011969B

BUSHING

Bearing

4шт.

7

AME013251B

CIRCLIP

Retaining Ring

2шт.

8

AME008283B

BUSHING,1" ID x 1-1/2" OD

Bearing

2шт.

9

AME014505B

LUBE NIPPLE,1/4" - 28

Grease, Yoke

2шт.

10

AME014512B

LUBE NIPPLE

Grease, Wheel

4шт.

11

AME008180B

WASHER,11/16" ID x 1-3/4" OD x 5/32" Thk

4шт.

12

AME012961B

WHEEL,6" OD

Caster

4шт.

13

AME007532B

LOCK NUT,5/8" - 11

4шт.

14

AME451175B

YOKE

LH, Front, Caster

1шт.

15

AME451160B

YOKE

LH, Rear, Caster

1шт.

16

AME451155B

YOKE

RH, Rear, Caster

1шт.
