(58.910.AD[10]) - VAR - 717966166, 717966236 - MOWER DECK CUTTER

Запчасти Case IH MW160S (58.910.AD[10]) - VAR - 717966166, 717966236 - MOWER DECK CUTTER (58) - ATTACHMENTS/HEADERS

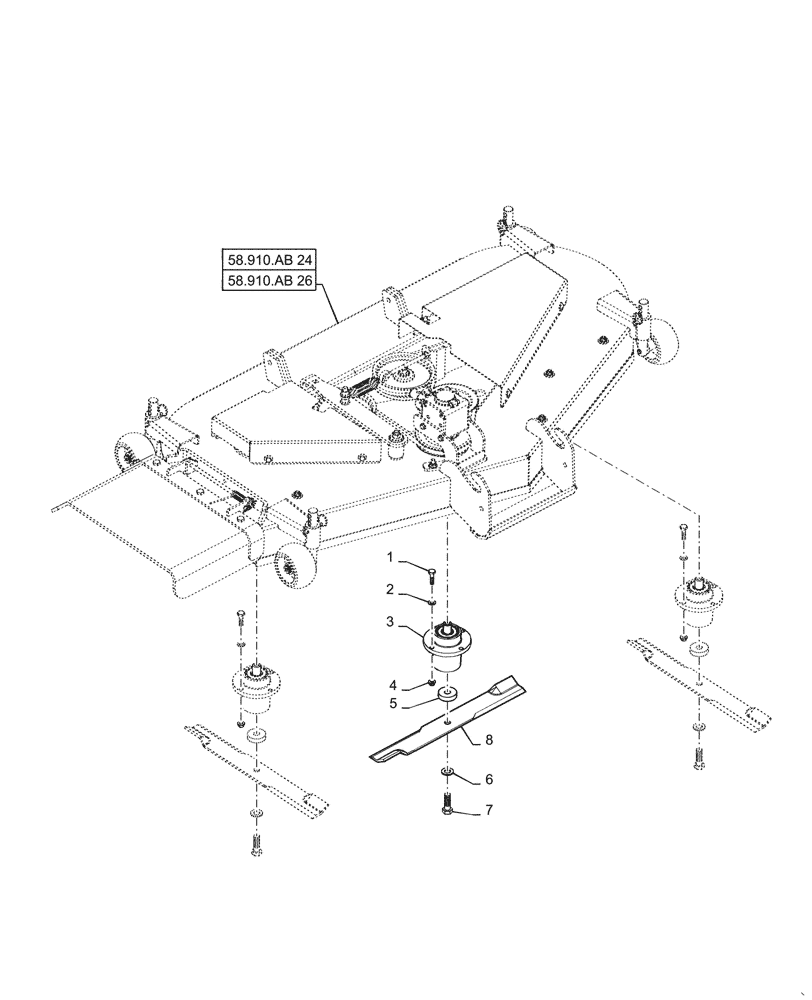

Схема запчастей Case IH MW160S - (58.910.AD[10]) - VAR - 717966166, 717966236 - MOWER DECK CUTTER (58) - ATTACHMENTS/HEADERS
58.910.ab 26
7
6
8
3
5
2
1
4
58.910.ab 24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AME006865B

BOLT,3/8" - 16 x 1-1/2" L, Gr 5

12шт.

2

AME008158B

WASHER,3/8" ID

12шт.

3

AME050012B

SPINDLE

Assy

3шт.

4

AME007457B

LOCK NUT,3/8" - 16

Nylon

12шт.

5

AME066078B

SPACER

Blade, 1/2" Thk

3шт.

6

AME008178B

WASHER,5/8" ID

3шт.

7

AME007132B

BOLT,5/8" - 18 x 2" L, Gr 8

3шт.

8

AME050008B

BLADE

Mower, 21" L

3шт.

Выбрано товаров: 8
