(58.910.AC[26]) - VAR - 717966166, 717966236 - MOWER DECK, PTO GEARBOX MOUNT

Запчасти Case IH MW160S (58.910.AC[26]) - VAR - 717966166, 717966236 - MOWER DECK, PTO GEARBOX MOUNT (58) - ATTACHMENTS/HEADERS

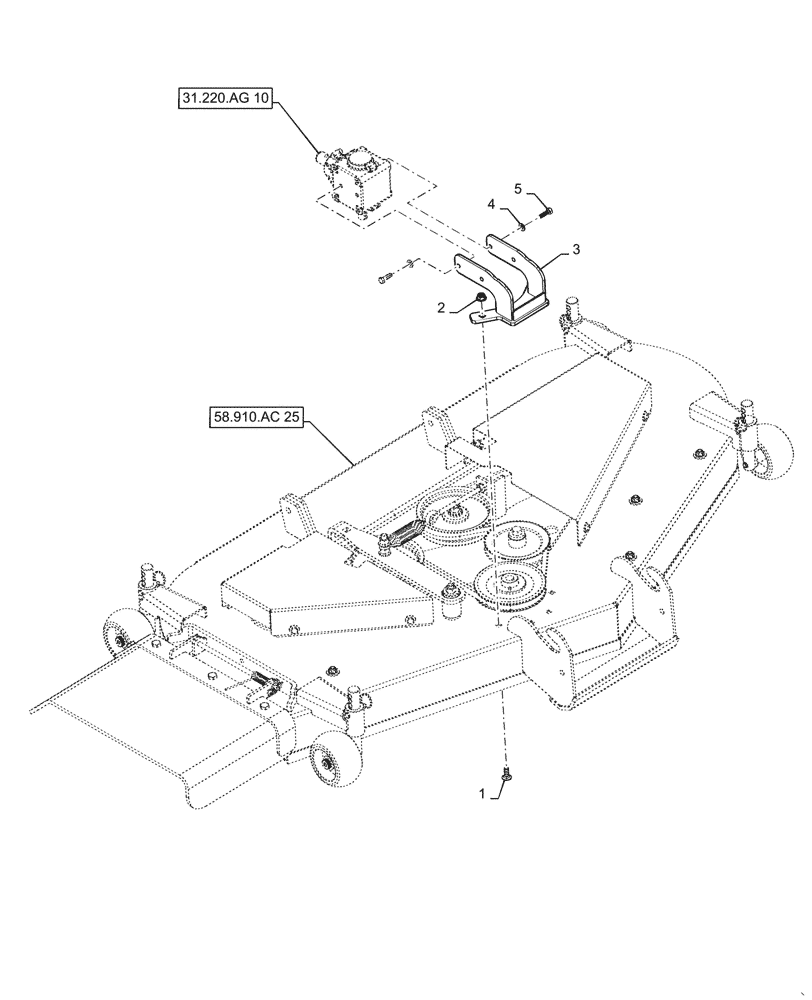

Схема запчастей Case IH MW160S - (58.910.AC[26]) - VAR - 717966166, 717966236 - MOWER DECK, PTO GEARBOX MOUNT (58) - ATTACHMENTS/HEADERS
58.910.ac 25
4
5
3
1
2
31.220.ag 10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AME006608B

CARRIAGE BOLT,3/8" - 16 x 1" L

4шт.

2

AME007457B

LOCK NUT,3/8" - 16

Nylon

4шт.

3

AME451700B

MOUNT

Gearbox

1шт.

4

AME008152B

WASHER,5/16" ID

4шт.

5

AME006792B

BOLT,5/16" - 18 x 1" L, Gr 5

4шт.

Выбрано товаров: 5
