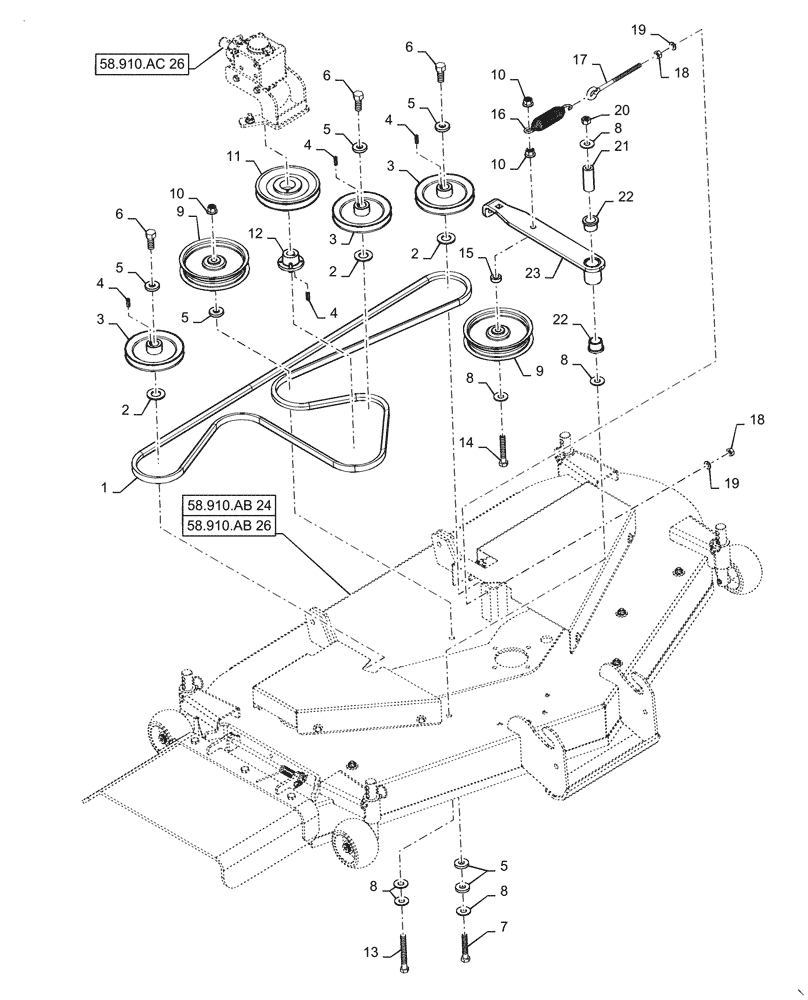

Запчасти Case IH MW160S (58.910.AC[25]) - VAR - 717966166, 717966236 - MOWER DECK PULLEY DRIVE (58) - ATTACHMENTS/HEADERS

1

AME012763B

BELT

Drive, Mower, 135mm L

1шт.

2

AME008197B

WASHER,15/16" ID x 1-3/4" OD x 1/8" Thk

3шт.

3

AME012760B

PULLEY

Spindle

3шт.

4

AME008921B

SQUARE KEY,3/16" x 3/16" x 7/8" L

4шт.

5

AME451709B

PLATE

Pulley Spacer

6шт.

6

AME007017B

BOLT,1/2" - 20 x 1-1/4" L

3шт.

7

AME007349B

BOLT,M12 x 1.75 x 70mm L, Gr 8.8

1шт.

8

AME008171B

WASHER,1/2" ID

6шт.

9

AME012295B

PULLEY

Idler, 6" OD

2шт.

10

AME007492B

NUT,M12 x 1.75, Gr 10

Lock

3шт.

11

AME012752B

PULLEY

Gearbox

1шт.

12

AME012719B

BUSHING

Mower Gearbox

1шт.

13

AME007073B

BOLT,1/2" - 13 x 4" L, Gr 5

1шт.

14

AME018695B

BOLT,M12 x 1.75 x 80mm L, Gr 8.8

1шт.

15

AME614082B

SPACER,3/8" Thk

1шт.

16

AME008751B

SPRING

Swivel End

1шт.

17

AME012541B

EYEBOLT

Spring Tension

1шт.

18

AME007451B

NUT,3/8" - 16

2шт.

19

AME008158B

WASHER,3/8" ID

2шт.

20

AME007508B

NUT,1/2" - 13, Gr 5

Nylon

1шт.

21

AME066079B

BUSHING

Belt Tensioner

1шт.

22

AME011969B

BUSHING

Bearing

2шт.

23

AME451165B

BELT TENSIONER

Arm

1шт.
