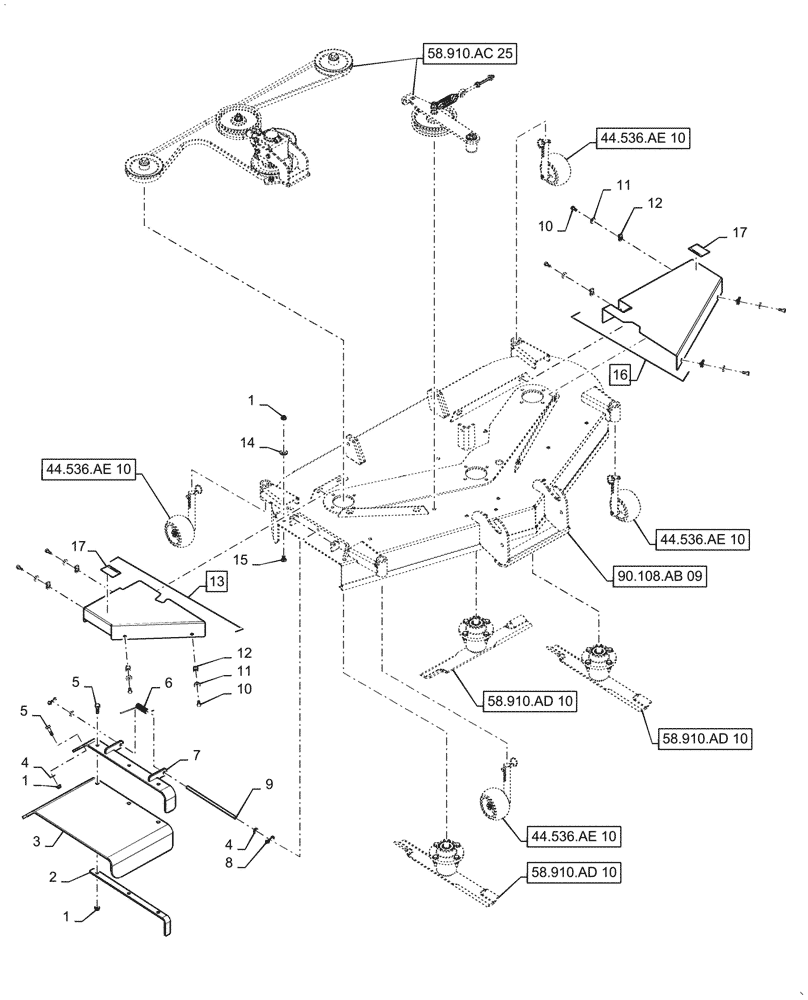

Запчасти Case IH MW160S (58.910.AB[24]) - VAR - 717966236 - MOWER DECK (58) - ATTACHMENTS/HEADERS

1

AME007457B

LOCK NUT,3/8" - 16

Nylon

9шт.

2

AME451186B

PLATE

Chute Retainer

1шт.

3

AME050005B

CHUTE

Discharge, Rubber

1шт.

4

AME008158B

WASHER,3/8" ID

3шт.

5

AME006855B

BOLT,3/8" - 16 x 1-1/4" L

4шт.

6

AME008820B

SPRING

Torsion

1шт.

7

AME451760B

CHUTE

Mount

1шт.

8

AME008548B

CLIP

Bow - Tie, Pin

2шт.

9

AME451363B

ROD

Chute Pivot

1шт.

10

AME006787B

BOLT,5/16" - 18 x 3/4" L

8шт.

11

AME008151B

WASHER,5/16" ID

8шт.

12

AME007432B

NUT,5/16" - 18

Spring

8шт.

13

AME451140C

GUARD

RH, Belt, Incl 17

1шт.

14

AME008173B

WASHER,1/2" ID

5шт.

15

AME006606B

CARRIAGE BOLT,3/8" - 16 x 3/4" L

5шт.

16

AME451145C

GUARD

LH, Belt, Incl 17

1шт.

17

AME020356B

WARNING DECAL

2шт.
