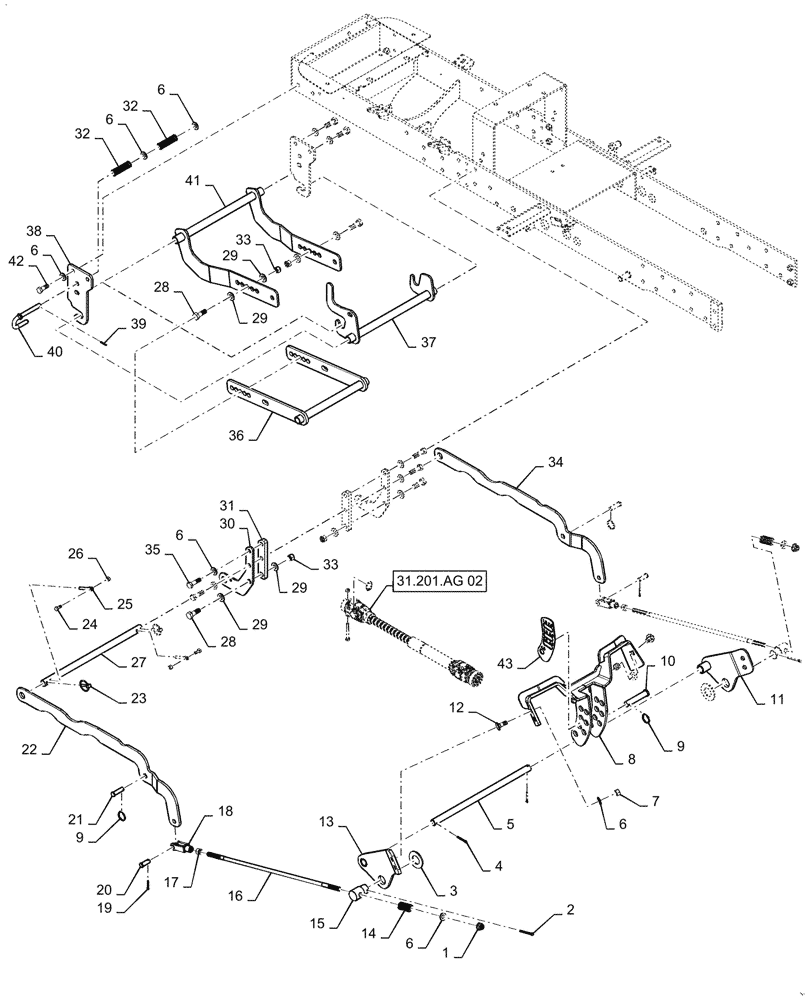

Запчасти Case IH MW160S (58.910.AA[13]) - VAR - 717966166, 717966236 - MOWER DECK MOUNTING PARTS, 60", CL 1 (58) - ATTACHMENTS/HEADERS

1

AME007514B

NUT,1/2" - 20

Lock

2шт.

2

AME008587B

COTTER PIN,3/16" OD x 2" L

2шт.

3

AME008206B

WASHER,1-1/4" ID

2шт.

4

AME008574B

HAIR PIN COTTER,1-1/4" L x 5/32" Thk

2шт.

5

AME451321B

SHAFT

Lower Link Pivot

1шт.

6

AME008164B

WASHER,1/2" ID

16шт.

7

AME007508B

NUT,1/2" - 13, Gr 5

Lock

4шт.

8

AME451725B

MOUNT

Rear

1шт.

9

AME008547B

RING

Locking

3шт.

10

AME013467B

CLEVIS PIN,3/4" OD x 3-3/4" L

1шт.

11

AME451715B

BRACKET

RH, Lift

1шт.

12

AME006664B

CARRIAGE BOLT,125mm L

4шт.

13

AME451720B

BRACKET

LH, Lift

1шт.

14

AME008679B

SPRING

Lift

2шт.

15

AME066104B

PIN

Deck Lift

2шт.

16

AME066098B

ROD

Tension

2шт.

17

AME007511B

NUT,1/2" - 20, Gr 5

2шт.

18

AME012543B

YOKE

Female

2шт.

19

AME008560B

HAIR PIN COTTER,1/8" OD x 1" L

2шт.

20

AME013463B

CLEVIS PIN,5/8" OD x 1-9/16" L

Female Yoke

2шт.

21

AME013455B

CLEVIS PIN,1/2" OD x 1-3/4" L

2шт.

22

AME451674B

PLATE

LH, Rail Link

1шт.

23

AME013491B

LINCH PIN,1/4" OD x 1-1/4" L

2шт.

24

AME006787B

BOLT,5/16" - 18 x 3/4" L

2шт.

25

AME013473B

PIN

Retainer

2шт.

26

AME007433B

NUT,5/16" - 18, Gr 5

Lock

2шт.

27

AME451323B

SHAFT

Lift

1шт.

28

AME018725B

BOLT,M14 x 2 x 40mm L, Gr 10.9

6шт.

29

AME008176B

WASHER,9/16" ID

12шт.

30

AME451319B

PLATE

Front Hanger

2шт.

31

AME451318B

PLATE

Spacer

2шт.

32

AME008675B

COMPRESSION SPRING

J - Latch

2шт.

33

AME007519B

NUT,M14 x 2mm Thk, Gr 10

Nylon - Lock

6шт.

34

AME451673B

PLATE

RH, Rail Link

1шт.

35

AME018654B

BOLT,M12 x 1.75 x 45mm L, Gr 10.9

4шт.

36

AME451710B

LOWER LINK

Front

1шт.

37

AME451695B

LATCH

Front

1шт.

38

AME451717B

PLATE

Latch Hook

2шт.

39

AME008554B

HAIR PIN COTTER,3/32" OD x 3/4" L

1шт.

40

AME066073B

LATCH

J

1шт.

41

AME451690B

LINK

Lower Mount

1шт.

42

AME018658B

BOLT,M12 x 1.75 x 35mm L, Gr 10.9

4шт.

43

AME020372B

DECAL

Cut Height

2шт.
