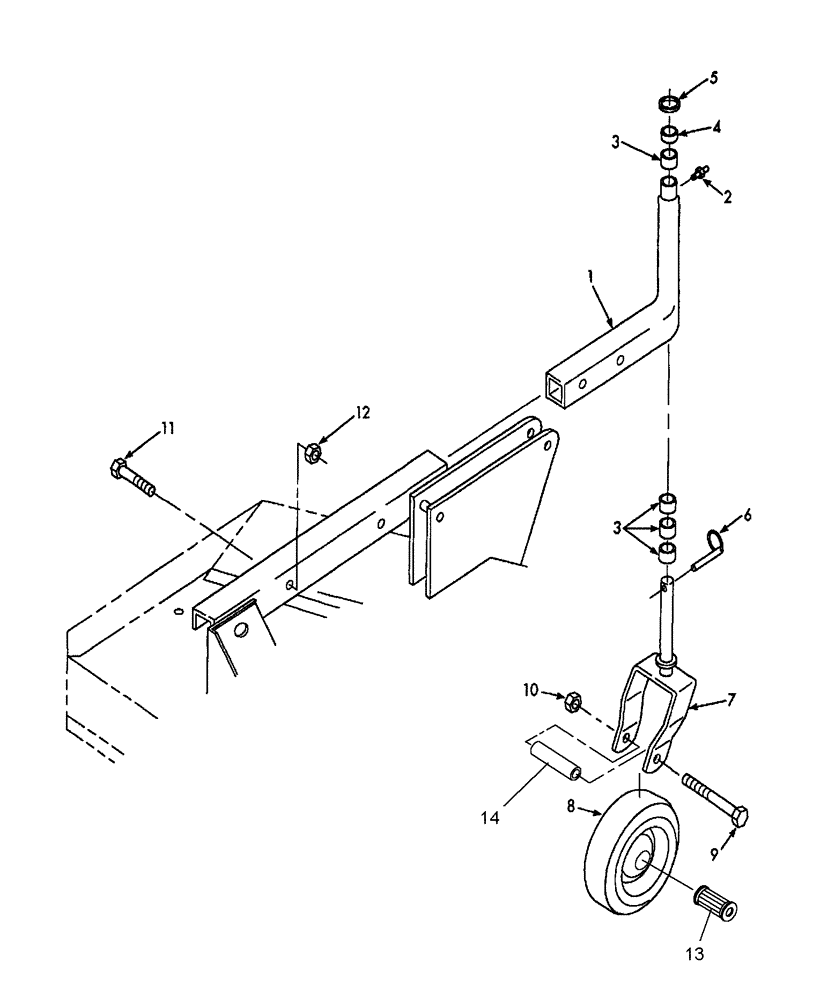

Запчасти Case IH RRX172 (007) - GAUGE WHEEL ASSEMBLY

1

CSE144650

STRUT

Wheel

4шт.

2

219-10

LUBE NIPPLE,1/4" - 28 NPTF

Fitting, Lube, Straight, 1/4"

4шт.

3

AUB140920

SPACER

1" Thick

16шт.

4

AUB140910

SPACER

1/2" Thick

4шт.

5

495-21106

WASHER,1"

4шт.

6

AUB140970

PIN

4шт.

7

CSE144706

AXLE

4шт.

11

87012029

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd

HH, 1/2"-13 x 3-1/2"

1шт.

8

CSE164194

WHEEL,260.35mm OD x 82.55mm W

w/Tire

4шт.

Includes: (1) Roller Bearing & (2) Retainers. Order Kit AUB-144658

1шт.

9

PL

PROCURE LOCALLY

BOLT, HH, 1/2"-13 x 5"

4шт.

10

PL

PROCURE LOCALLY

NUT, Lock, 1/2"-13

4шт.

12

232-4148

NUT,1/2"-13, GC

1шт.

13

AUB144658

WHEEL BEARING KIT

Wheel Bearing

1шт.

Includes: (1) Roller Bearing & (2) Retainers. Order Kit AUB-144658

1шт.

14

AUB144707

SPACER

4шт.
