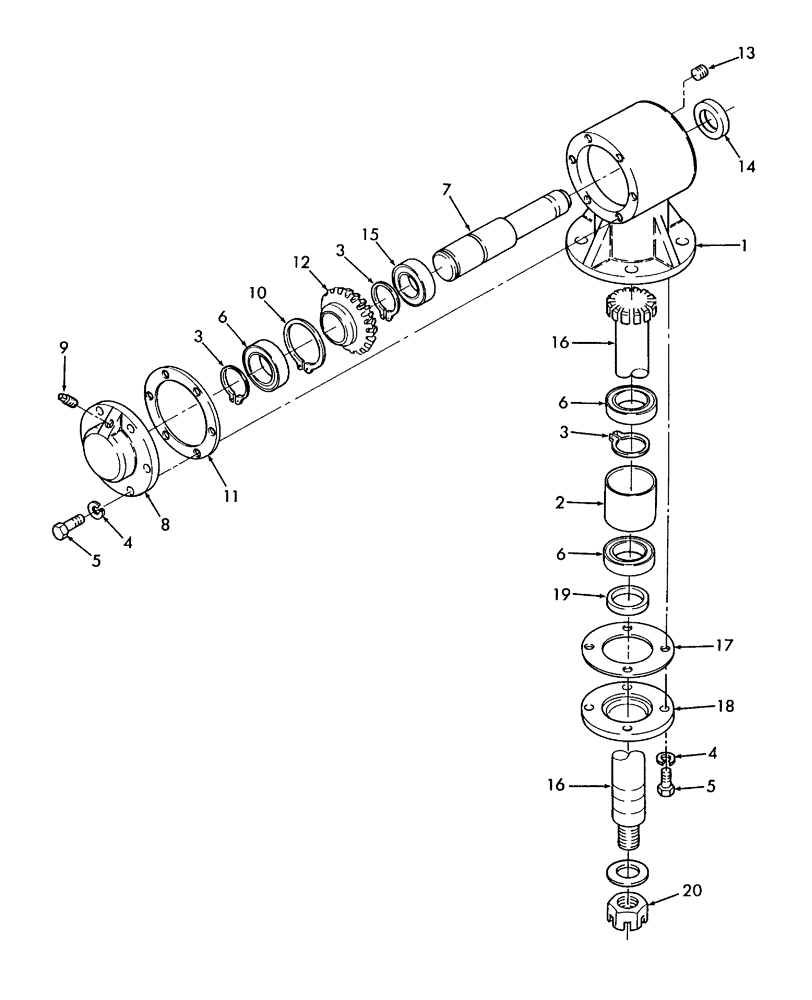

Запчасти Case IH RRX172 (005) - GEARBOX ASSEMBLY

CSE144604

GEARBOX ASSY

Includes: Ref. 1 thru 21

1шт.

1

CSE144676

HOUSING

1шт.

2

AUB150267

SPACER

1шт.

3

AUB150269

SNAP RING

3шт.

4

492-11038

LOCK WASHER,3/8"

10шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

6

163415

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

3шт.

7

AUB144677

SHAFT

Input

1шт.

8

CSE144678

CAP COVER

Blank

1шт.

9

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe, Square Hd., 1/4" NPT

1шт.

9

AUB144881

PLUG

Pressure Relief, 1/4-18 (New Style )

1шт.

10

AUB150279

SNAP RING

1шт.

11

AUB150278

GASKET

1шт.

12

AUB150277

GEAR

22T

1шт.

13

AUB144679

PLUG

Pressure Relief, 1/2" NPT (Old Style ) No Plug In New Style

1шт.

14

AUB150281

SEAL PROTECTION

Input Shaft

1шт.

15

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

1шт.

16

AUB150271

SHAFT

Gear, 15T

1шт.

17

AUB150264

GASKET

Gasket

1шт.

18

CSE150263

CAP

Output

1шт.

19

BMB1082

SEAL PROTECTION

1шт.

20

AUB144668

NUT

Hex w/washer

1шт.
