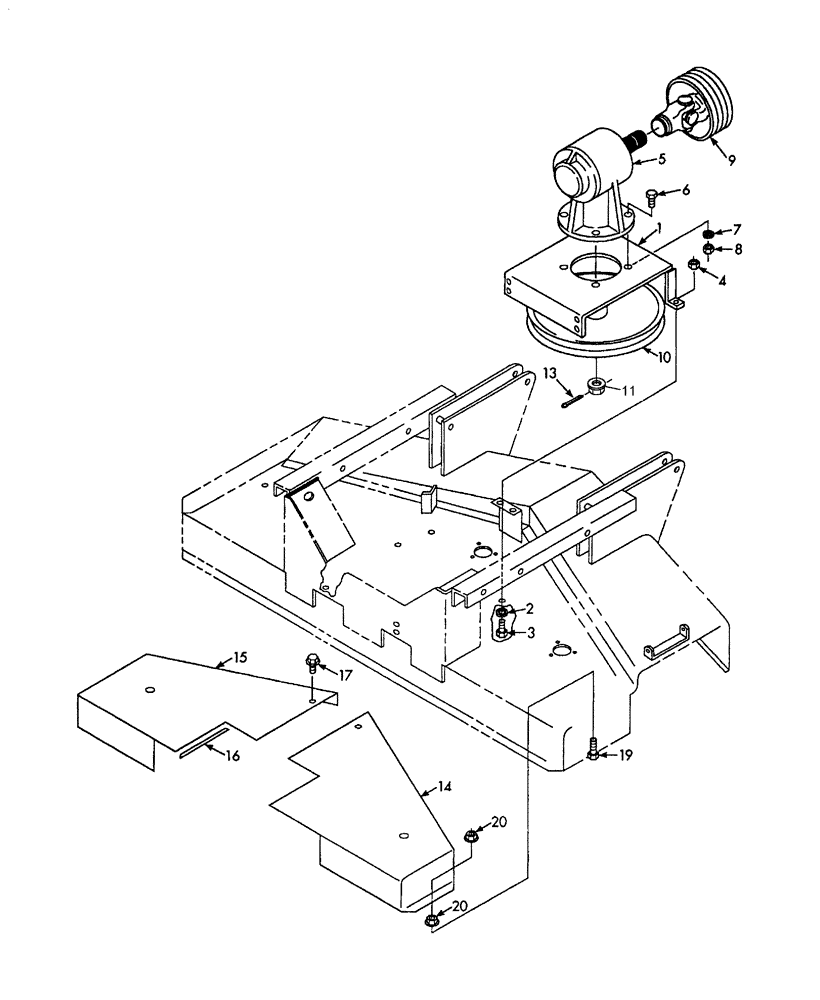

Запчасти Case IH RRX172 (004) - GEARBOX, GEARSTAND, DRIVE PULLEY & SHIELDS

1

CSE144640

BRACKET

Gearbox, 60" & 72"

1шт.

2

495-21044

WASHER,3/8"

6шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

4

232-4146

NUT,3/8"-16, GC

1шт.

5

CSE144604

GEARBOX ASSY

1шт.

6

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

7

12034871

WASHER

(5/8")

9шт.

8

425-1010

NUT,5/8"-11, G5

9шт.

9

AUB144765

PTO

1шт.

10

CSE144735

PULLEY

Drive, 72"

1шт.

10

CSE144663

PULLEY

Drive, 60"

1шт.

11

AUB144668

NUT

1"-14

1шт.

13

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

14

CSE144660

SHIELD

Deck, RH, 60"

1шт.

14

CSE144740

SHIELD

Deck, RH, 72"

1шт.

15

CSE144665

SHIELD

Deck, LH, 60"

1шт.

15

CSE144745

SHIELD

Deck, LH, 72"

1шт.

16

AUB456320

ISOLATOR

4шт.

When Stock is depleted Procure Locally; Use Foam Strip, 1/8" x 3/4" x .2 Ft. (Stays in place better W/Foam Strip)

1шт.

17

121-133

SERRATED BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

20

AUB964019

FLANGE NUT

Flange, 5/16"-18

4шт.
