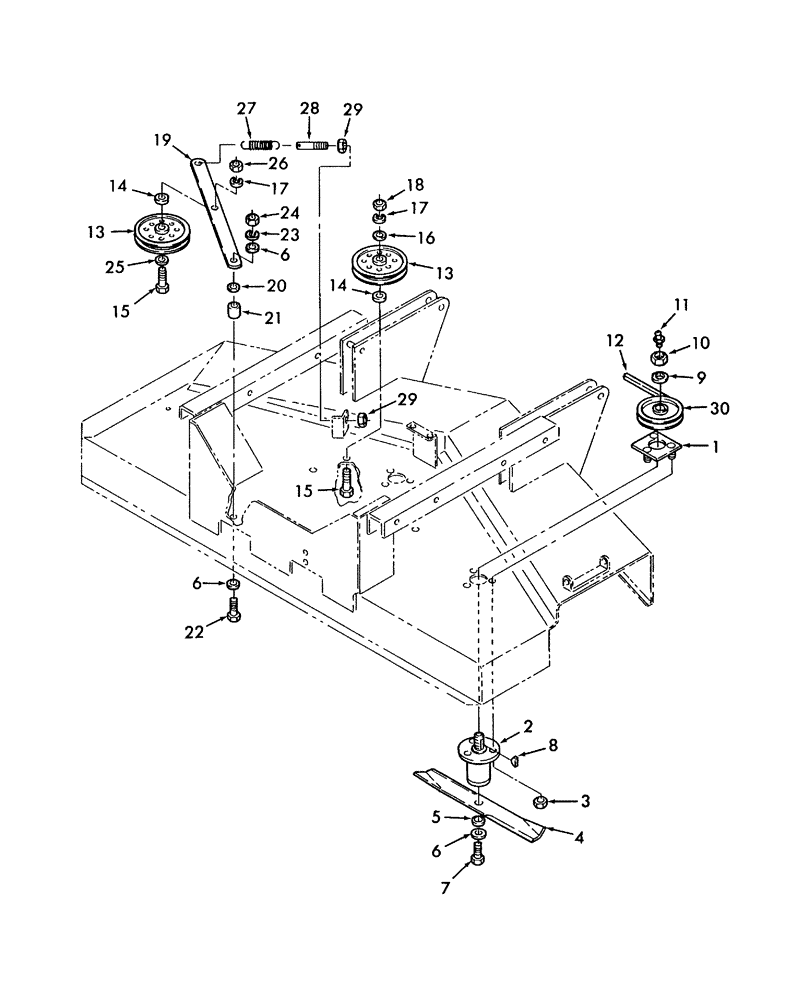

Запчасти Case IH RRX172 (002) - BLADE & PULLEY ASSEMBLY

1

CSE144616

PLATE ASSY.

Spindle - Includes Three Bolts

3шт.

2

AUB144734

SPINDLE

Assy.

3шт.

3

232-4146

NUT,3/8"-16, GC

1шт.

4

AUB144701

BLADE

72"

3шт.

4

AUB144614

TILLAGE BLADE

60", hole size is .761"/.781" / sharpened portions are 7.5" long. Overall length is 20.76" at sharpened corners/diagnolly

3шт.

5

AUB144705

SEAL

Blade, 72"

3шт.

22

87012029

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd

HH, 1/2"-13 x 3-1/2"

1шт.

5

AUB144618

WASHER

Blade, 60"

3шт.

6

495-21056

WASHER,1/2"

1шт.

7

AUB967187

BOLT

HH, G8, 9/16"-12 x 1-3/4"

3шт.

8

AUB144687

KEY

5 mm

3шт.

9

AUB144681

WASHER

Flat, 19 mm

3шт.

10

AUB144680

LOCK NUT

3шт.

11

495-21056

WASHER,1/2"

Fitting, Lube, Straight, 1/4"

3шт.

12

86514529

V-BELT,0.63" W x 106.90" L

Drive

1шт.

12

86514532

V-BELT,0.63" W x 122.90" L

Drive

1шт.

13

AUB140280

PULLEY

Idler, 6" Dia.

2шт.

14

AUB121747

SPACER

2шт.

15

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

16

495-11066

WASHER,5/8", SAE

Flat, 5/8" SAE

2шт.

17

84057

LOCK WASHER,M16

(5/8")

1шт.

18

425-1010

NUT,5/8"-11, G5

1шт.

19

CSE144654

ARM

Idler, 60" & 72"

1шт.

20

AUB121240

SPACER

Pivot

1шт.

21

CSE144656

SPACER

1шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

1шт.

25

495-11066

WASHER,5/8", SAE

Flat, 5/8" SAE

2шт.

26

425-1010

NUT,5/8"-11, G5

1шт.

27

AUB110580

SPRING

1шт.

28

AUB140340

ROD

Thread Adjusting

1шт.

29

425-106

NUT,3/8"-16, Cl 5

2шт.

30

CSE144686

PULLEY

Pulley

3шт.
