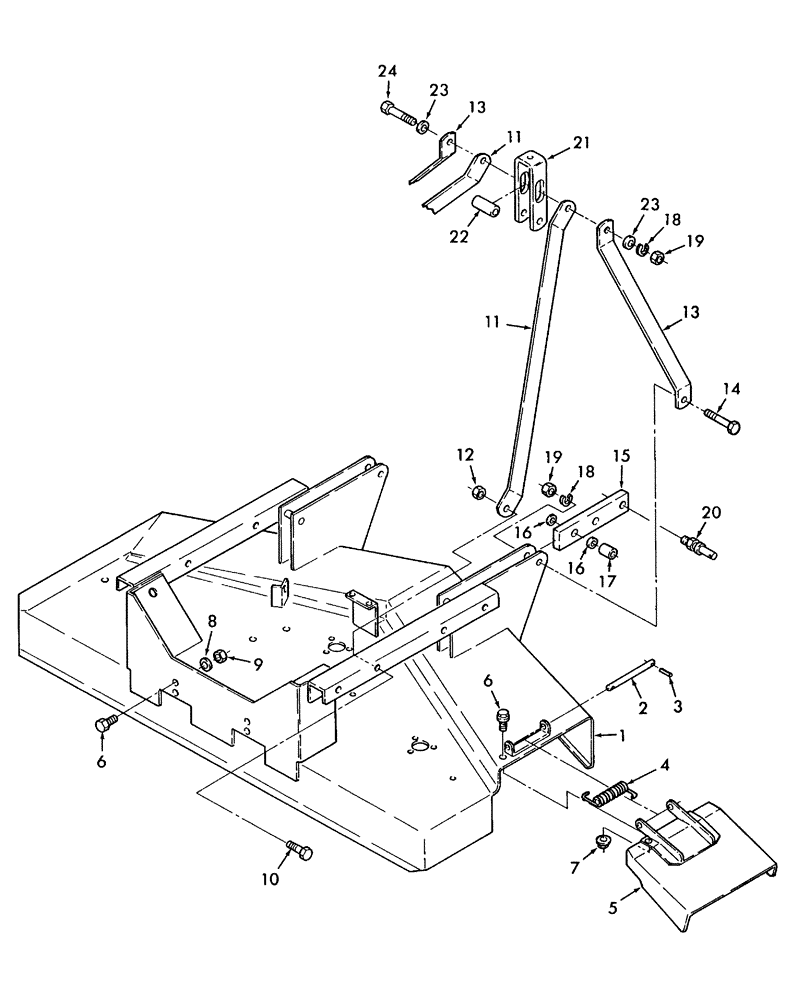

Запчасти Case IH RRX172 (001) - MAIN FRAME & RELATED PARTS

1

CSE144776

MOWER DECK

Deck, 60"

1шт.

1

CSE144791

MOWER DECK

Deck, 72"

1шт.

2

AUB160058

PIN

Shield

1шт.

3

38-31016

PIN,5/32" x 1", Coiled

2шт.

4

AUB160052

SPRING

1шт.

10

87012029

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd

HH, 1/2"-13 x 3-1/2"

1шт.

5

AUB144775

SHIELD

Shield, Discharge W/Decal

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

7

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

8

495-21044

WASHER,3/8"

6шт.

9

232-4146

NUT,3/8"-16, GC

1шт.

11

CSE144715

BRACE

Rear, 72"

2шт.

11

CSE144619

BRACE

Rear, 60"

2шт.

12

232-4148

NUT,1/2"-13, GC

1шт.

13

CSE150005

FUNNEL

FRAME

2шт.

14

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

15

CSE144671

ARM, LIFT

2шт.

16

495-21081

WASHER,3/4"

4шт.

17

AUB144617

BUSHING

2шт.

18

12034871

WASHER

(5/8")

9шт.

19

425-1010

NUT,5/8"-11, G5

9шт.

20

AUB150021

PIN,22.35mm OD x 139.7mm L

2шт.

21

CSE150011

UPPER LINK

1шт.

22

AUB150013

SPACER

Top Link

1шт.

23

495-21069

WASHER,5/8"

Flat, 5/8"

2шт.

24

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

HH, G5, 5/8"-11 x 5-1/2"

1шт.
