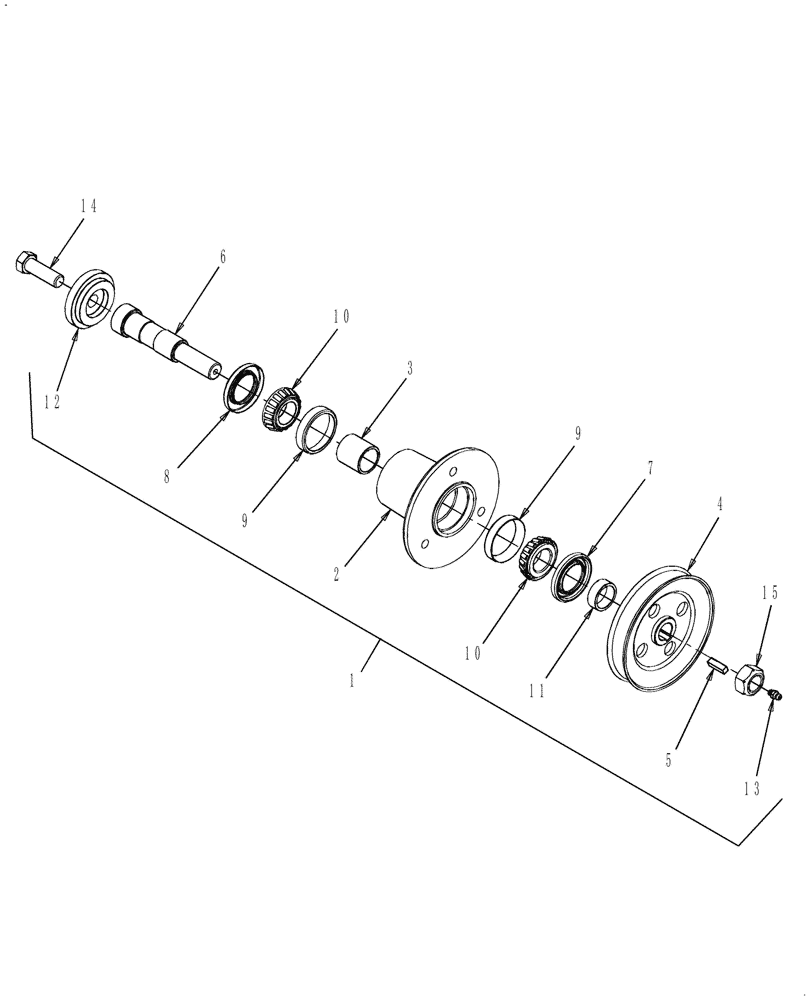

Запчасти Case IH RRX160 (003) - SPINDLE ASSEMBLY - AUB144734

1

AUB144734

SPINDLE

Spindle Assy. Includes: Ref. 1 thru 15

1шт.

2

AUB144589

FINAL DRIVE HOUSING

1шт.

NLS, Supersedes to 84280857

1шт.

3

AUB130898

SLEEVE

Bearing 1.00x1.25x1.26

1шт.

4

AUB07331367

PULLEY

V-Belt, 5.38x.750 W/Key

1шт.

NLS, Supersedes to 84280857

1шт.

5

277124

KEY

.250x.250x.875 Square

1шт.

6

AUB144598

SHAFT

Blade Spindle

1шт.

NLS, Supersedes to 84280857

1шт.

7

AUB145551

SEAL,31.75mm ID x 54.08mm OD x 6.35mm Thk

Upper Spindle

1шт.

NLS, Supersedes to 84280857

1шт.

8

AUB145552

SEAL,31.75mm ID x 54.08mm OD x 6.35mm Thk

Lower Spindle

1шт.

NLS, Supersedes to 84280857

1шт.

9

AUB145553

BEARING CUP

Cup, 1.00

2шт.

10

AUB145554

BEARING CONE,1" ID x 0.58"

Cone, 1.00

2шт.

11

AUB145557

SPACER

Bushing, 1.00x1.25x.438

1шт.

12

AUB162779

SPACER

Blade

1шт.

13

AUB959995

LUBE NIPPLE

1шт.

14

AUB967187

BOLT

9/16-12x1.75 Hex

1шт.

15

AUB964024

LOCK NUT

3/4-16

1шт.
