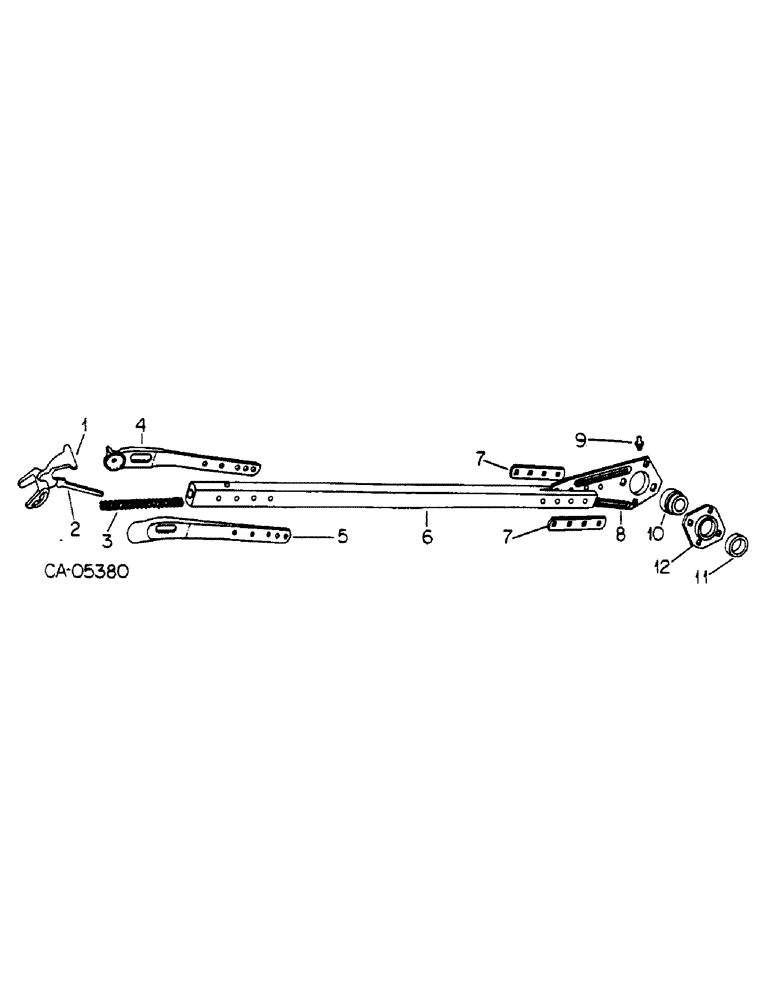

Запчасти Case IH CUB-22 (G-10) - BALL BEARING PITMAN, SPECIAL, 1972 AND SINCE

57196C91

PITMAN ASSY, ball bearing, composed of the following

1шт.

1

MC1579X

LATCH

FORK ASSY, Pitman latch, composed of (1) fork MC1579 (NSS), (1) pin Q3785, (1) plunger MA1573

1шт.

2

MA1573

PLUNGER

Pitman

1шт.

Q3785

RIVET

PIN, 3/16 x 17/32 spec-hd

1шт.

3

MA1574

SPRING

Pitman plunger, 24 coils

1шт.

4

M1578

STRAP

Pitman rear

1шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

5/16 x 2 hex-hd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

5

MA1577

STRAP

Pitman front

1шт.

6

57197C1

PITMAN

1шт.

7

481170R1

BAR

STRAP, Pitman

2шт.

18675R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 crg type 1

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

8

481169R1

FLANGE

Pitman bearing

1шт.

9

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

10

939475R92

BEARING ASSY

Pitman ball

1шт.

11

557115R11

COLLAR

COLLAR W/SET SCREW, Pitman bearing

1шт.

12

462305R1

FLANGE

Pitman bearing

1шт.

22475R1

BOLT, 3/8 x 5/8 crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.
