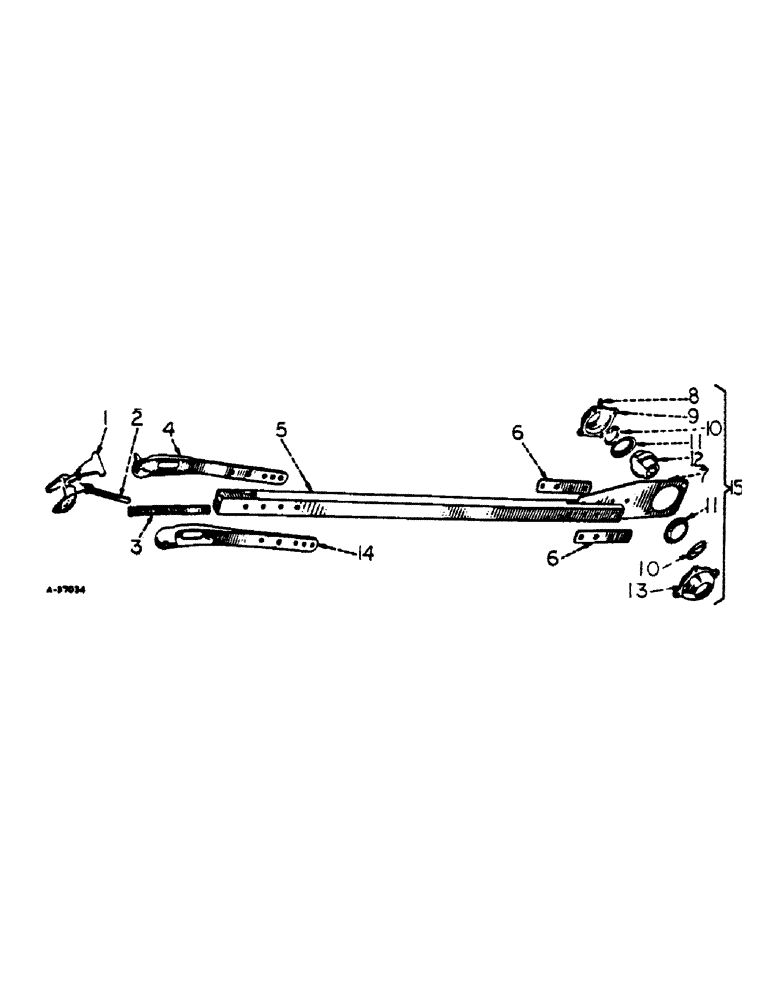

Запчасти Case IH CUB-22 (G-09) - BALL BEARING PITMAN, SPECIAL, 1950 TO 1972

1

MC1579X

LATCH

FORK ASSY, Pitman latch, composed of (1) fork MC1579 (NSS), (1) pin Q3785 (1) plunger MA1573

1шт.

2

MA1573

PLUNGER

Pitman

1шт.

Q3785

RIVET

PIN, 3/16 x 17/32 spec-hd

1шт.

3

MA1574

SPRING

Pitman plunger, 24 coils

1шт.

4

M1578

STRAP

Pitman rear

1шт.

5

451392R1

WOOD PITMAN

PITMAN

1шт.

5

453467R94

PITMAN ASSY, ball bearing, composed of (1) bearing 455312R91 (1) fitting 109461 (1) fork assy MC1579X (1) Pitman 451392R1 (1) plunger MA1573 (1) spring MA1574 (1) strap MA1577 strap (1) strap M1578, rear (2) washer MA1581

1шт.

6

MA1581

STRIP

PLATE, Pitman washer

2шт.

22883R1

BOLT, 5/16 x 1-5/8 type 1

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

7

MD42237

ARM

CONNECTION, Pitman box, Serial Range: 1950-1953

1шт.

7

455311R1

SUPPORT

CONNECTION, Pitman box, Serial Range: 1953-1972

1шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

9

MA2626

BOX

CAP, Pitman bearing, Serial Range: 1950-1953

1шт.

9

455310R1

CAP

Pitman bearing, Serial Range: 1953-1972

1шт.

10

M32933

WASHER

1-39/64 x 2 x 1/4 felt

2шт.

11

M32779

RETAINER

felt washer

2шт.

12

ST313

BALL BEARING,25.4mm ID x 62mm OD x 52.39mm W

BEARING, ball

1шт.

13

MA2625

HUB

HOUSING, Pitman bearing, Serial Range: 1950-1953

1шт.

14911R1

RIVET, 5/16 x 1-11/16 truss-hd

4шт.

13

455309R1

HOUSING

Pitman bearing, Serial Range: 1953-1972

1шт.

22883R1

BOLT, 5/16 x 1-5/8 C-Z hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

14

MA1577

STRAP

Pitman front

1шт.

180087

SPRING

5/16 x 2 type 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

15

ME32524

BOX

ASSY, Pitman, 1950 to 1953, composed of (1) bearing, ball ST313 (1) cap MA626 (1) connection MC42237 (1) housing MA2625 (2) retainer M32779 (2) washer M32933 felt

1шт.

15

455312R91

BOX

ASSY, Pitman, 1953 to 1972, composed of (1) bearing, ball ST313 (1) cap 455310R1 (1) connection 455311R1 (1) housing 455309R1 (2) retainer M32779 (2) washer M32933 felt

1шт.
