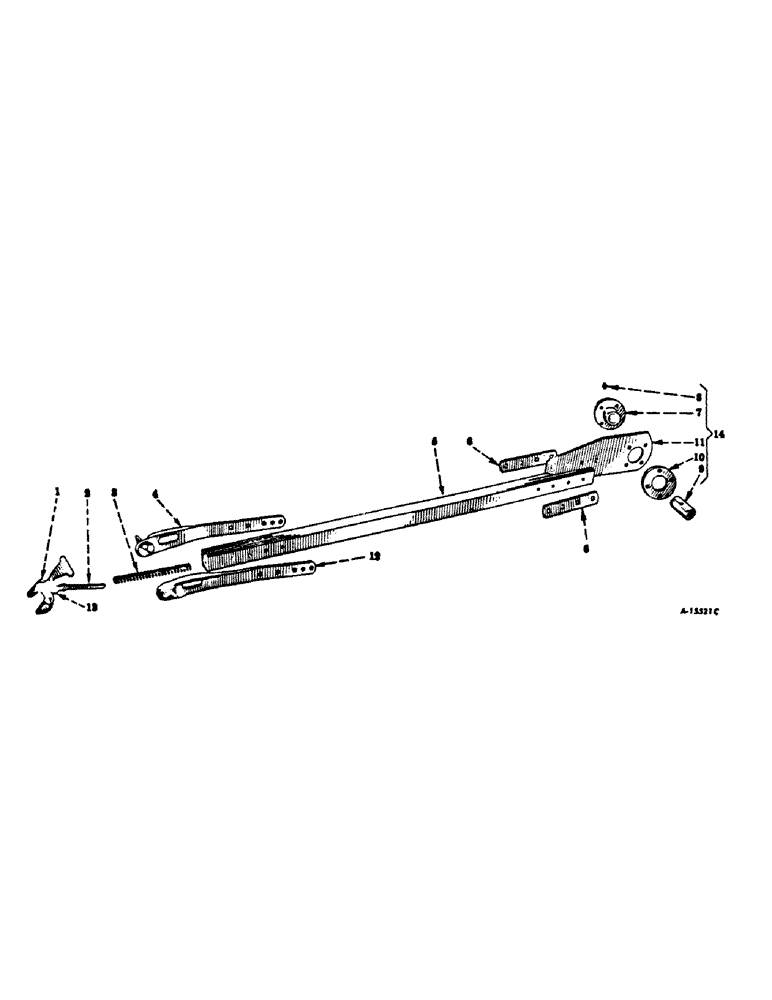

Запчасти Case IH CUB-22 (G-08) - PLAIN BEARING PITMAN, REGULAR

1

MC1579X

LATCH

FORK ASSY, Pitman latch, composed of (1) fork MC1579 (NSS) (1) pin Q3785 (1) plunger MA1573

1шт.

2

MA1573

PLUNGER

Pitman

1шт.

Q3785

RIVET

PIN, 3/16 x 17/32 spec-hd

1шт.

3

MA1574

SPRING

Pitman plunger, 24 coils

1шт.

4

M1578

STRAP

Pitman rear

1шт.

5

451392R1

WOOD PITMAN

PITMAN

1шт.

5

451391R93

PITMAN ASSY, plain bearing, composed of (1) box MC22501 (1) fitting 109461 (1) fork assy MC1579X (1) Pitman 451392R1 (1) spring M1574 (1) strap MA1577 front (1) strap M1578 rear (2) washer MA1581

1шт.

6

MA1581

STRIP

PLATE, Pitman washer

2шт.

22883R1

BOLT, 5/16 x 1-5/8 C-1 hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

7

MC2077X

HUB

BOX W/BUSHING M2078, Pitman

1шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

9

M2078

BUSHING

Pitman box

1шт.

10

M22221

RETAINER

STIFFENER, Pitman box connection

1шт.

11

MD22222

REINFORCEMENT

CONNECTION, Pitman box

1шт.

12

MA1577

STRAP

Pitman front

1шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16 x 2 C-Z hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

13

Q3785

RIVET

PIN, 3/16 x 17/32 spec-hd

1шт.

14

MB22501

BOX ASSY, Pitman, composed of (1) box MC2077X (1) bushing M2078 (1) connection MD22222 (1) stiffener M22221

1шт.
