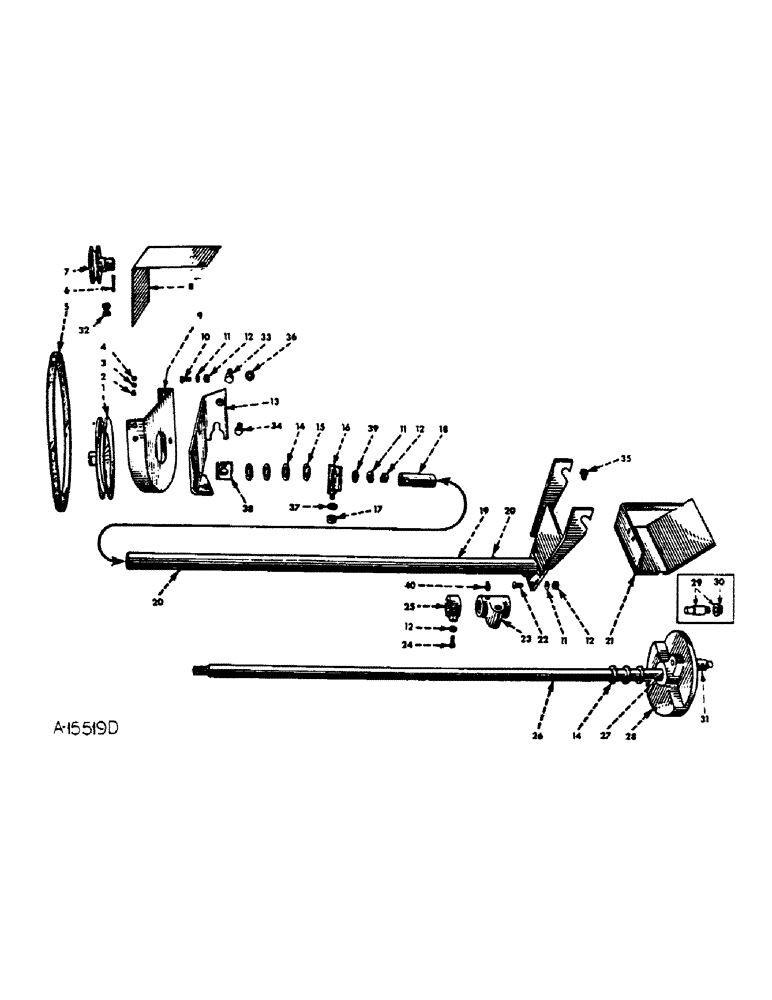

Запчасти Case IH CUB-22 (G-06) - FLYWHEEL, FLYWHEEL SHAFT, PULLEYS AND DRIVE SHIELDS

1

451357R1

PULLEY

flywheel shaft

1шт.

2

13291R1

BOLT, 3/8-16NC x 1 mach

1шт.

3

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

120377

NUT,3/8" - 16, Gr 5

2шт.

5

457292R1

V-BELT,0.66" W

Drive, 1955 and since 0.66" W

1шт.

5

452197R1

V-BELT,0.66" W

Drive, 1947 to 1955 0.66" W

1шт.

6

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16 x 2-1/4 C-Z cot.

1шт.

7

457291R1

PULLEY

drive, 1955 and since

1шт.

7

451356R2

PULLEY

drive, Serial Range: 1947-1955

1шт.

8

451359R21

SHIELD W/PRODUCT GRAPHIC 56630C1 DRIVE, upper, used on regular and fast hitch drawbar

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach

2шт.

9

451360R3

SHIELD, lower drive

1шт.

10

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

11

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

12

120377

NUT,3/8" - 16, Gr 5

2шт.

13

457228R11

BRACKET ASSY, rear, used on regular and fast hitch drawbar

1шт.

PO25842A

BOLT

BOLT, 5/8-11NC x 1-1/4 cone-hd

1шт.

456630R1

BOLT,5/8" - 11 x 1 3/4"

5/8-11NC x 1-1/4 cone-hd, used on fast hitch drawbar only

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11NC x 2 hex-hd cap

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11NC x 2 hex-hd cap, used on fast hitch drawbar only

1шт.

14

21716R1

WASHER

1-5/32 x 1-3/4 x 16 ga C-Z

6шт.

15

M42040

WASHER

SPACER, flywheel shaft pulley

1шт.

16

451765R95

ADJUSTER

BOLT ASSY, adjusting belt

1шт.

17

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

2шт.

18

M32876

BUSHING

flywheel shaft, Serial Range: 1947-1949

2шт.

18

453183R1

BUSHING,28.68mm ID x 33.55mm OD x 88.9mm L

flywheel shaft, 1950 and since

2шт.

19

451364R92

TUBE W/BRACKETS AND 2 BUSHINGS M32876, flywheel shaft, Serial Range: 1947-1948

1шт.

19

453030R94

TUBE W/BRACKETS AND 2 BUSHINGS 453183R1, flywheel shaft, 1948 and since

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/4 C-Z hex-hd cap

1шт.

20

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Flywheel shaft tube lub 1/4"-28 NPT x .54" lg

2шт.

21

451371R93

SHIELD, flywheel

1шт.

22

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

2шт.

472144R1

NUT

3/8-16 C-Z two-way lock

2шт.

23

451370R2

COUPLING

HINGE, coupling bar

1шт.

24

21407R1

SCREW

3/8-16 x 1-1/4 C-Z sq-hd cup-pt set

1шт.

25

451374R1

COLLAR, coupling bar hinge

1шт.

26

451369R3

SHAFT

flywheel

1шт.

27

Q488

KEY

3/8 x 9/32 x 1-7/16 straight

1шт.

28

57194C91

FLYWHEEL ASSY, replaces 451399R11 on machines built 1947 to 1972 by also ordering Pitman assy 57196C91

1шт.

29

451390R11

KIT

PIN ASSY, wrist, built 1947 to 1972, used w/flywheel 451399R11

1шт.

30

M305

NUT

wrist pin, 1947 to 1972, used w/flywheel 451399R11

1шт.

31

57195C1

PIN, wrist, 1972 and since, used w/flywheel 57194C91

1шт.

32

18782R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 2

3/8 x 2-1/4 C-Z hex-hd mach

1шт.

32

120377

NUT,3/8" - 16, Gr 5

1шт.

32

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

33

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11NC x 1-1/2 hex-hd cap

1шт.

33

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11NC x 2 hex-hd cap, used on fast hitch drawbar only

1шт.

34

PO25842A

BOLT

BOLT, 5/8-11NC x 1-1/4 cone-hd

1шт.

34

456630R1

BOLT,5/8" - 11 x 1 3/4"

5/8-11NC x 1-1/4 cone-hd, used on fast hitch drawbar only

1шт.

35

351679R1

BOLT (SPREADER),5/8" - 11 x 1"

BOLT, 5/8-11NC x 1 cone-hd

1шт.

36

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

37

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

38

M42195

SPACER, bracket rear, used on fast hitch drawbar only

1шт.

39

(Not used this application)

1шт.

40

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PFT 1/8"-27 x .66 lg

1шт.
