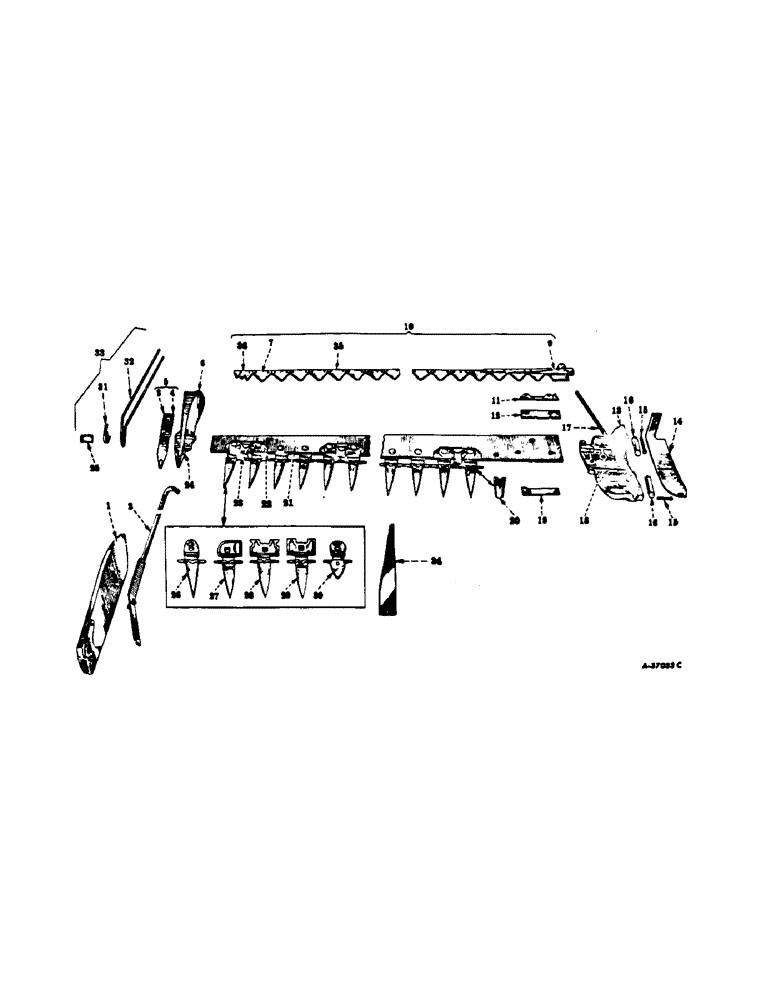

Запчасти Case IH CUB-22 (G-02) - CUTTER BAR, GRASS BOARD, GRASS ROD, KNIFE AND SHOES

LEVEL CUT BAR, 4-1/2 and 5 ft. with MD989Z or 484000R11 guards, consists of all unmarked parts and those marked unit A

1шт.

WEED BAR, 4-1/2 and 5 ft. with MB2041Z guards, consists of all unmarked parts and those marked unit B

1шт.

CARDO BAR, 4-1/2 and 5 ft. with ZA53Y guards, consists of all unmarked parts and those marked unit C

1шт.

WEED BAR, 4-1/2 and 5 ft. with 457676R21 forged guard equipped ledger plate, 1957 and since, consists of all unmarked parts and those marked unit D

1шт.

WEED BAR, 4-1/2 and 5 ft. with 457743R92 guards equipped with chromium plated ledger plates, 1957 and since, consists of all unmarked parts and those marked unit E

1шт.

1

MB1051

BOARD

grass, 1947 to 1954, units A, B and C

1шт.

1

MB1050

BOARD ASSY, grass 1947 to 1954, units A, B and C, composed of (1) board MB1051 (1) plate M1014 (NSS) (1) sole MA 1100 (1) spring M1015 (1) strap M1051A (NSS)

1шт.

M3261/2X

BOLT W/NUT, 1/2-13 x 2-7/16 special heads, units A, B and C

1шт.

102637

NUT,1/2"-13, G5

1шт.

2

MC22089

ROD, grass board, 1947 to 1954, units A, B and C

1шт.

2

458977R11

ROD

grass board, 1954 and since, units A, B and C

1шт.

3

SOLE, outer shoe, order M259X

1шт.

BRACKET, outer shoe sole, order M259X

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

1/4 x 3/4 rd-hd

2шт.

5

M259X

SOLE

W/BRACKET, outer shoe

1шт.

D266X

BOLT AND NUT

W/NUT, 1-2/13 x 1-3/16 special head

1шт.

102637

NUT,1/2"-13, G5

1шт.

6

MF729AX

SHOE

W/LEDGER PLATE, outer, 1960 and since

1шт.

6

455558R11

SHOE W/LEDGER PLATE, outer, Serial Range: 1954-1960

1шт.

7

MB333

KNIFE SECTION

SECTION, smooth, 18 for unit A 4-1/2 ft., 20 for unit A 5 ft

1шт.

14752R1

RIVET, 5-1/2 x 9/16 small ov-hd, 29 for unit A 4-1/2 ft., 33 for unit A 5 ft. Oval Hd, .211" x 9/16"

1шт.

7

457604R1

KNIFE SECTION

SECTION, smooth cr-pltd, 20 for unit A 5 ft.

1шт.

19869R1

RIVET, no. 5-1/2 x 9/16 small ov-hd cd-pltd, 33 for unit A 5 ft. Oval Hd, .211" x 9/16"

1шт.

7

ME333

KNIFE SECTION

SECTION, underserrated, 18 for unit A 4-1/2 ft., 20 for unit A 5 ft.

1шт.

14752R1

RIVET, 5-1/2 x 9/16 pln o/hd, 29 for unit A 4-1/2 ft., 33 for unit A 5 ft. Oval Hd, .211" x 9/16"

1шт.

7

457606R1

KNIFE SECTION

SECTION, underserrated, cr-pltd, 20 for unit A 5 ft.

1шт.

19869R1

RIVET, 5-1/2 x 9/16 cad o/hd, 33 for unit A 5 ft. Oval Hd, .211" x 9/16"

1шт.

7

M3331/2

X

SECTION, smooth, 18 for units B, C and D 4-1/2 ft., 20 for units B, C and D 5 ft.

1шт.

14752R1

RIVET, no. 5-1/2 x 9/16 small ov-hd, 29 for units B, C and F 4-1/2 ft., 33 for units B, C and F 5 ft. Oval Hd, .211" x 9/16"

1шт.

7

457605R1

KNIFE SECTION

SECTION, smooth cr-pltd, 20 for units B, C and E 5 ft.

1шт.

19869R1

RIVET, 5-1/2 x 9/16 cad o/hd, 33 for units B, C, E and G 5 ft. Oval Hd, .211" x 9/16"

1шт.

7

M22831

KNIFE SECTION

SECTION, underserrated, 18 for units B, C and D 4-1/2 ft, 20 for units B, C and D 5 ft.

1шт.

14752R1

RIVET, no. 5-1/2 x 9/16 small ov-hd, 29 for units B, C and F 4 1/2 ft., 33 for units B, C and F 5 ft. Oval Hd, .211" x 9/16"

1шт.

7

457607R1

KNIFE SECTION

SECTION, underserrated cr-pltd, 20 for units B, C and E 5 ft.

1шт.

RIVET, no. 6 x 9/16 ov-hd cr-pltd, 33 for units B, C and E 5 ft.

1шт.

8

(Not used this application)

1шт.

9

MC139

HEAD

knife, unit A

1шт.

9

MA999

HEAD

knife, units B, C, D and E

1шт.

12712R1

RIVET

no. 5-1/2 x 15/16 ov-hd

10шт.

10

KNIFE ASSEMBLY, smooth 4-1/2 ft., unit A, discontinued for service, composed of (1) back M536A (1) head MC139 (18) section, smooth MB333

1шт.

10

MA1079

KNIFE ASSEMBLY, smooth 4-1/2 ft., units B, C, D and E, composed of (1) back M536A (1) head MA999 (18) section, smooth M333 1/2

1шт.

10

M22834

KNIFE

ASSY, underserrated 4-1/2 ft., units B, C, D and E, composed of (1) back M536A (1) head MA999 (18) section, underserrated M22831

1шт.

10

MB332

KNIFE

ASSY, smooth 5 ft., unit A, composed of (1) back M537A (1) head MC139 (20) section, smooth MB333

1шт.

10

459261R91

KNIFE W/SMOOTH CR-PLTD SECTIONS ASSY, 5 ft., unit A, composed of (1) back M537A (1) head MC139 (20) section, smooth 457604R1

1шт.

10

MB1080

KNIFE

ASSEMBLY, smooth 5 ft., units B, C and D, composed of (1) back M537A (1) head MA999 (19) section, smooth M333 1/2 (1) section, smooth heavy triplet end 467455R11

1шт.

10

459263R91

KNIFE W/SMOOTH CR-PLTD SECTIONS ASSEMBLY 5 ft., units B, C and E, composed of (1) back M537A (1) head MA999 (20) section, smooth 457605R1

1шт.

10

M22668

KNIFE

ASSY, under seprated 5 ft., unit A, composed of (1) back M537A (1) head MC139 (20) section, underserrated ME333

1шт.

10

MA22835

KNIFE

ASSEMBLY, underserrated 5 ft., units B, C and D, composed of (1) back M537A (1) head MA999 (19) section, underserrated M22831 (1) section, underserrated heavy triplet end 467456R11

1шт.

10

459262R91

KNIFE W/UNDERSERRATED CR-PLTD SECTIONS ASSY, 5 ft., units B, C and E, composed of (1) back M537A (1) head MA999 (20) section, underserrated 457607R1

1шт.

11

M2664

CLAMP

CAP, knife head rear, 1947, 1 for unit A

1шт.

11

ME652

SUPPORT

CAP, knife head rear, 1947 and since

1шт.

MB1136

SHIM,.0179" Thk

Knife head cap, 7 or as required .0179" Thk

1шт.

12

MB22863

BAR

PLATE, inner shoe wearing

1шт.

13

451388R21

SHOE

W/PLATE, inner

1шт.

17447R1

BOLT

7/16 x 1-1/4 pln type 1

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

271500

SOCKET

7/16 pln type 5

1шт.

15765R1

CARRIAGE BOLT,#4, 1/2" - 13 x 1 1/2", Gr 2

BOLT, PLOW, 1/2"-13 x 1 1/2", G2 (#4)

1шт.

15782R1

CARRIAGE BOLT,#4, 1/2" - 13 x 2", Gr 2

BOLT, PLOW, (#4) 1/2"-13 x 2", G2

2шт.

102637

NUT,1/2"-13, G5

3шт.

14

451389R1

SOLE

inner shoe

1шт.

15

108645

COTTER PIN

PIN, 1/4 x 1-3/8 cotter

2шт.

16

451387R1

PIN

inner shoe hinge, 3/4 x 3-1/8 in. headed, used w/inner shoe 451388R11

2шт.

16

547316R1

PIN

inner shoe hinge, 3/4 x 3.44 in. headed, used w/inner shoe 451388R21

2шт.

17

MA22215X

ROD ASSY.

ROD W/NUT, inner shoe fender

1шт.

18

MB1263

LARGE PLATE

PLATE, front knife head cap serrated wearing

1шт.

19

451396R1

SUPPORT

CAP, knife head front

1шт.

Q701X

BOLT AND NUT

BOLT W/NUT, 3/8-16 x 1-3/8 no. 10 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Q1597

WASHER

.406 x .734 x .056 pln

1шт.

20

455634R1

PLATE

guard serrated ledger, 17 for units A, B and D 4-1/2 ft., 19 for units A, B and D 5 ft.

1шт.

20

PLATE, cardo guard ledger, discontinued for service, 17 for unit C 4-1/2 ft., 19 for unit C 5 ft.

1шт.

20

457608R1

CUTTER BAR

PLATE, guard serrated ledger cr-pltd, 19 for units A, B and E 5 ft.

1шт.

14022R1

RIVET

3/16 x 1-3/8 pln 74D c/hd sol, 1947 to 1962, 1 per plate

1шт.

472040R1

RIVET

3/16 x 1 in. 74 deg csk-hd semi tubular, 1963 and since, 1 per plate

1шт.

21

BAR, cutter, 4-1/2 ft., discontinued for service

1шт.

21

453908R1

BAR, cutter, 5 ft.

1шт.

22

MC468

PLATE ASSY.

PLATE, knife wearing

5шт.

23

M1000

CLAMP

CLIP, knife low arch, 4 for units A and C

1шт.

23

MA812

SUPPORT

CLIP, low arch knife, cast iron, 1947 to 1975, 4 for units B, D and E

1шт.

23

544274R1

CLIP

low arch knife, sheet metal, 1975 and since, 4 for units B, D and e

1шт.

23

MD1000

CLAMP

CLIP, knife high arch, units A and C

1шт.

23

611759R1

KNIFE CLIP

CLIP, knife high arch, units B, D and E

1шт.

24

MA330

LARGE PLATE

LEDGER PLATE, outer shoe serrated

1шт.

12568R1

RIVET,Csk, 3/16" x 11/16"

3/16 x 11/16 54 deg csk-hd

1шт.

13865R1

RIVET,Csk, 3/16" x 1"

3/16 x 1 54 deg csk-hd

1шт.

25

M1015

SPRING

grass rod tension

1шт.

18942R1

BOLT,1/2" - 13 x 3", Gr 2

1/2 x 3 C-Z sq-hd mach

1шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13 CDP hex. lock

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 C-Z

1шт.

26

484000R11

GUARD

W/SERRATED LEDGER PLATE 455634R1, replaced MD989Z, 17 for unit A 4-1/2 ft., 19 for unit A 5 ft.

1шт.

A200AX

BOLT W/NUT, 7/16-14 x 1-3/16 guard, 9 for unit A and D 4-1/2 ft., 11 for unit A and D 5 ft.

1шт.

M806

PLOW BOLT

BOLT, 7/16-14 x 1-9/16 guard, 10 for unit A

1шт.

271501

SOCKET

NUT, 7/16 type 5, 1 per bolt

1шт.

27

MC2043Z

GUARD

W/SERRATED LEDGER PLATE 455634R1 ASSY, outer, unit B

1шт.

27

457745R92

GUARD

W/CR-PLTD SERRATED LEDGER PLATE 457608R1 ASSY, outer, unit E

1шт.

27

458793R21

GUARD W/SERRATED LEDGER PLATE 455634R1 ASSY, forged outer, unit D

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT, 7/16-14 x 1-21/32 guard

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

1шт.

28

MC2041Z

GUARD

GUARD W/SERRATED LEDGER PLATE 455634R1 ASSY, 15 for unit B 4-1/2 ft., 17 for unit B 5 ft.

1шт.

28

457743R92

GUARD

W/CR-PLTD SERRATED LEDGER PLATE 457608R1 ASSY, 15 for unit E 4-1/2 ft., 17 for unit E 5 ft.

1шт.

28

457676R21

GUARD

W/SERRATED LEDGER PLATE 455634R1 ASSY, forged, 15 for unit D 4-1/2 ft., 17 for unit D 5 ft.

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, 7/16-14 unc x 1-5/16 guard, 6 for units B, D and E 4-1/2 ft., 8 for units B, D and E 5 ft.

1шт.

Q3596

PLOW BOLT,7/16" - 14 x 1 5/8", Gr 5

BOLT, 7/16-14 x 1-21/32 guard, 9 for units B, D and E

1шт.

271501

SOCKET

NUT, 7/16 type 5, 1 per bolt

1шт.

29

MC2042Z

GUARD

W/SERRATED LEDGER PLATE 455634R1 ASSY, inner units B and E

1шт.

29

458792R21

GUARD W/SERRATED LEDGER PLATE 455634R1 ASSY, forged inner unit D

1шт.

M805X

BOLT AND NUT

BOLT W/NUT, 7/16-14 x 1-5/16 guard

1шт.

NLS

NO LONGER SERVICED

7/16 pln type 5

1шт.

30

ZA53Y

GUARD W/SMOOTH LEDGER PLATE, cardo, 17 for unit C 4-1/2 ft., 19 for unit C 5 ft.

1шт.

A200AX

BOLT W/NUT, 7/16-14 x 1-3/16 guard short, 7 for unit C 4-1/2 ft., 9 for unit C 5 ft.

1шт.

M806

PLOW BOLT

BOLT, 7/16-14 x 1-9/16 no. 3 plow guard long, 10 for unit C

1шт.

271500

SOCKET

7/16-14 hex. 1 per bolt

1шт.

31

458979R1

CLAMP

outer shoe grass rod

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8 x 1-1/2 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

22942R1

PIN, 1/4 x 3/4 C-Z cot.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

32

455574R1

FORK

ROD, outer shoe grass, Serial Range: 1947-1960

1шт.

32

463326R12

ROD ASSY.

ROD, outer shoe grass, 1960 and since

1шт.

ROD ASSY, outer shoe grass, order components separately

1шт.

34

457778R2

GAUGE, ledger plate, for aligning guard and ledger plates with cutter bar

1шт.

35

M536A

ROD

BACK, knife, 4-1/2 ft.

1шт.

M537A

KNIFE BACK

BACK, knife, 5 ft.

1шт.

36

467455R11

VALVE

SECTION W/RIVETS, smooth heavy triplet end cr-pltd, 11 gauge .120

1шт.

36

467457R11

KNIFE SECTION

SECTION W/RIVETS, smooth regular triplet end cr-pltd, 14 gauge .083

1шт.

36

467456R11

KNIFE SECTION

SECTION W/RIVETS, underserrated heavy triplet end cr-pltd, 11 gauge .120

1шт.

36

467458RR1

SECTION W/RIVETS, underserrated regular triplet end cr-pltd, 14 gauge .083

1шт.

19895R1

RIVET,Oval Hd, .211" x 5/8"

5-1/2 x 5/8 cad o/hd

2шт.
