Запчасти Case IH CUB-22 (G-13) - FLARING TOOL / PRODUCT GRAPHICS

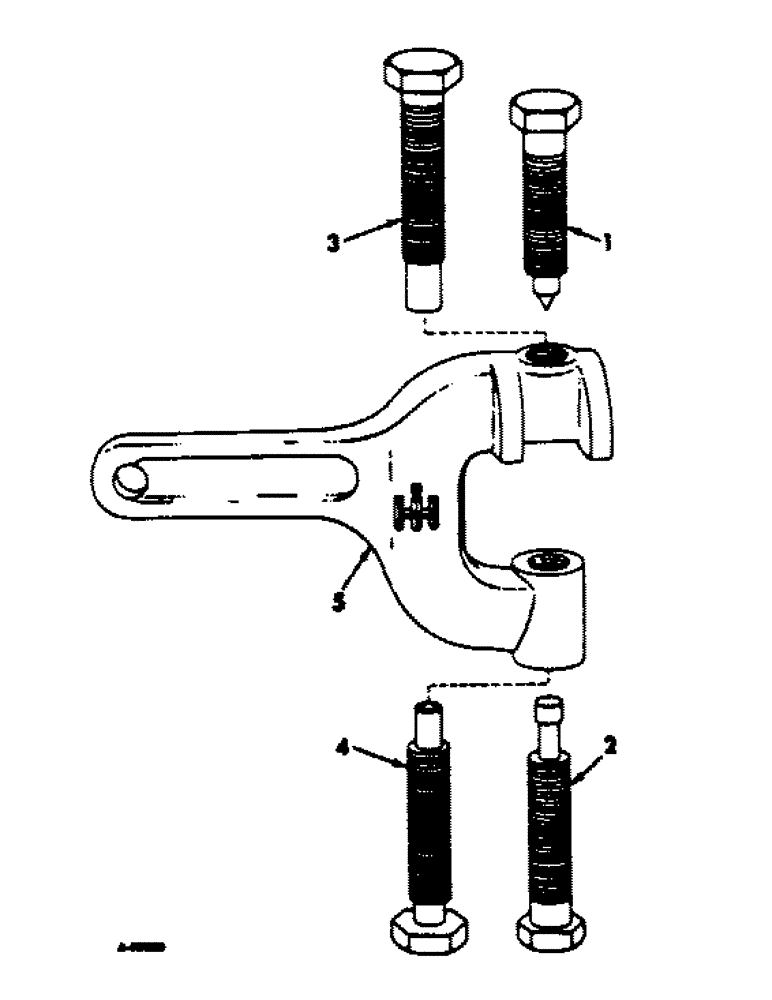

Схема запчастей Case IH CUB-22 - (G-13) - FLARING TOOL / PRODUCT GRAPHICS

Артикул

Название

Примечание

Количество

489611R92

TOOL ASSY.

KNIFE SECTION RIVETING TOOL PACKAGE, consists of ref nos. 3, 4 and 5

1шт.

55169C91

PACKAGE

LEDGER PLATE RIVETING TOOL PACKAGE, for use with 489611R92, consists of ref nos. 1 and 2

1шт.

1

489617R1

TOOL

flaring

1шт.

2

489616R1

TOOL

riveting

1шт.

3

489615R1

TOOL

rivet anvil

1шт.

4

489614R1

TOOL

heading

1шт.

5

HOLDER, riveting and flaring, order 489611R92

1шт.

1001815R1

CUT 22 MOWER, on inner shoe hinge

1шт.

2754371R1

DECAL

IH OF CANADA, for Canada only, on inner shoe hinge

1шт.

56630C1

PRODUCT GRAPHIC

caution, keep shields in place

1шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, consists of (2) IH trademark 1.46 x 1.57 (NSS) (2) IH trademark 2.19 x 2.38 (NSS) (2) IH trademark 2.93 x 3.15 (NSS)

1шт.

77582C91

PACKAGE

IH trademark, medium size, consists of (2) IH trademark 3.66 x 3.94 (NSS) (2) IH trademark 4.39 x 4.72 (NSS) (2) IH trademark 5.48 x 5.91 (NSS)

1шт.

77583C91

PACKAGE

IH trademark, large size, consists of (2) IH trademark 6.58 x 7.09 (NSS) (2) IH trademark 7.68 x 8.27 (NSS) (2) IH trademark 10.24 x 11.02 (NSS)

1шт.

547495R92

DECAL KIT

PACKAGE, International name, for red machines, consists of (2) International 8.56 x .56 (NSS) (2) International 14.06 x .94 (NNS) (2) International 23.12 x 1.50 (NSS) (2) International 35.12 x 2.25 (NSS)

1шт.

547496R92

DECAL

PACKAGE, International name, for yellow machines, consists of (2) International 8.50 x .50 (NSS) (2) International 17.00 x 1.00 (NSS) (2) International 23.00 x 1.38 (NSS) (2) International 35.00 x 2.12 (NSS)

1шт.

547497R92

DECAL

PACKAGE, model designation, for red machines, consists of (2) model designation 8.78 x 2.45 (NSS) (2) model designation 14.08 x 4.50 (NSS) (2) model designation 20.04 x 7.57 (NSS) (2) model designation 15.20 x 7.56 (NSS)

1шт.

547498R92

DECAL

PACKAGE, model designation, for yellow machines, consists of (2) model designation 12.20 x 3.00 (NSS) (2) model designation 15.80 x 4.68 (NSS)

1шт.

Выбрано товаров: 17
