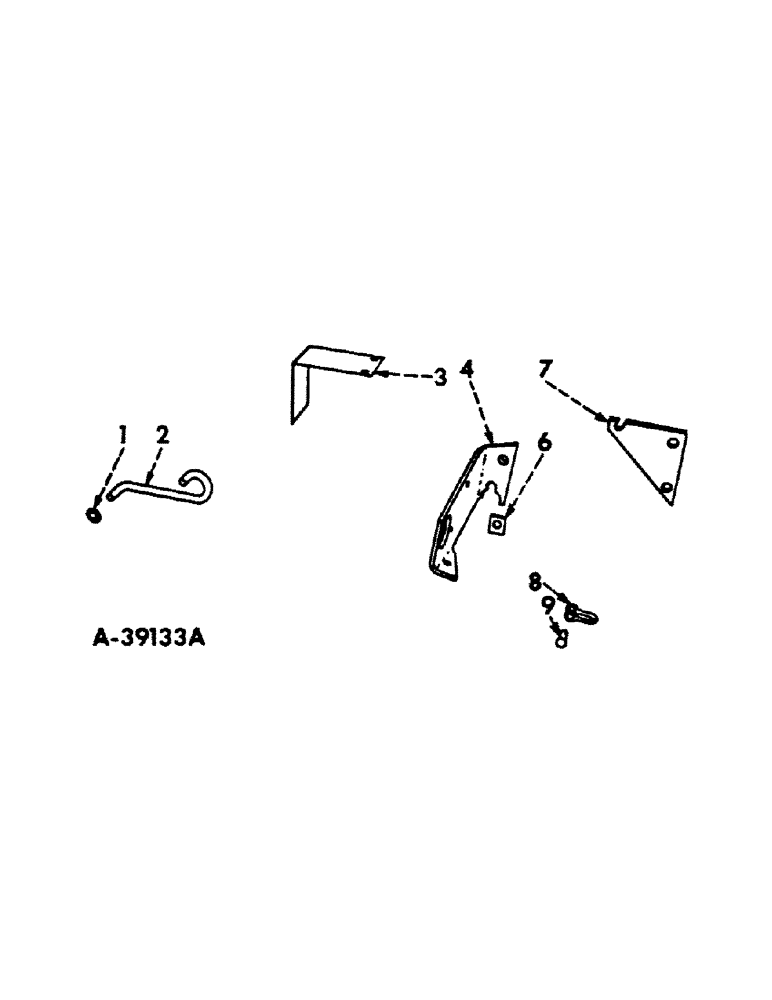

Запчасти Case IH CUB-22 (G-12) - FIELD CONVERSION AND ADAPTER PACKAGES

456670R91

KIT

FIELD CONVERSION PACKAGE, for converting cub 22 mowers of 1954 manufacture and prior, i.e. w/conventional drawbars, for use with farmall cub tractors equipped with fast-hitch drawbars

1шт.

456848R91

ADAPTER PACKAGE, for adapting cub 22 mower to farmall cub tractor equipped with fast hitch drawbar, orders specifically calling for cub 22 mowers for use with fast-hitch drawbars must include 456848R91, adapter package

1шт.

1

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z, units A and B, 1955 and since

1шт.

2

456849R1

HOLD-UP, pull bar, 1955 and since, units A and B

1шт.

21829R1

COTTER PIN,3/16" x 1 1/8"

units A and B 3/16" x 1 1/8"

1шт.

3

451359R2

SHIELD, upper drive, 1955 and since, unit A

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2 x 1 pln type 1

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

457228R11

BRACKET ASSY, rear, unit A, 1955 and since

1шт.

456630R1

BOLT,5/8" - 11 x 1 3/4"

5/8-11NC x 2-3/4 cone-hd

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

1шт.

5

(Not used this application)

1шт.

6

M42195

SPACER, rear bracket, 1955 and since, units A and B

1шт.

7

456850R1

SUPPORT, cutter bar, 1955 and since, units A and B

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11NC x 1-1/4 hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

M42549

CLEVIS

lifting chain, 1955 and since, units A and B

1шт.

9

671034R1

PIN

1/2 x 1-1/2 C-Z std-hd, 1955 and since, units A and B

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), , Units A and B 3/16" x 1"

1шт.
