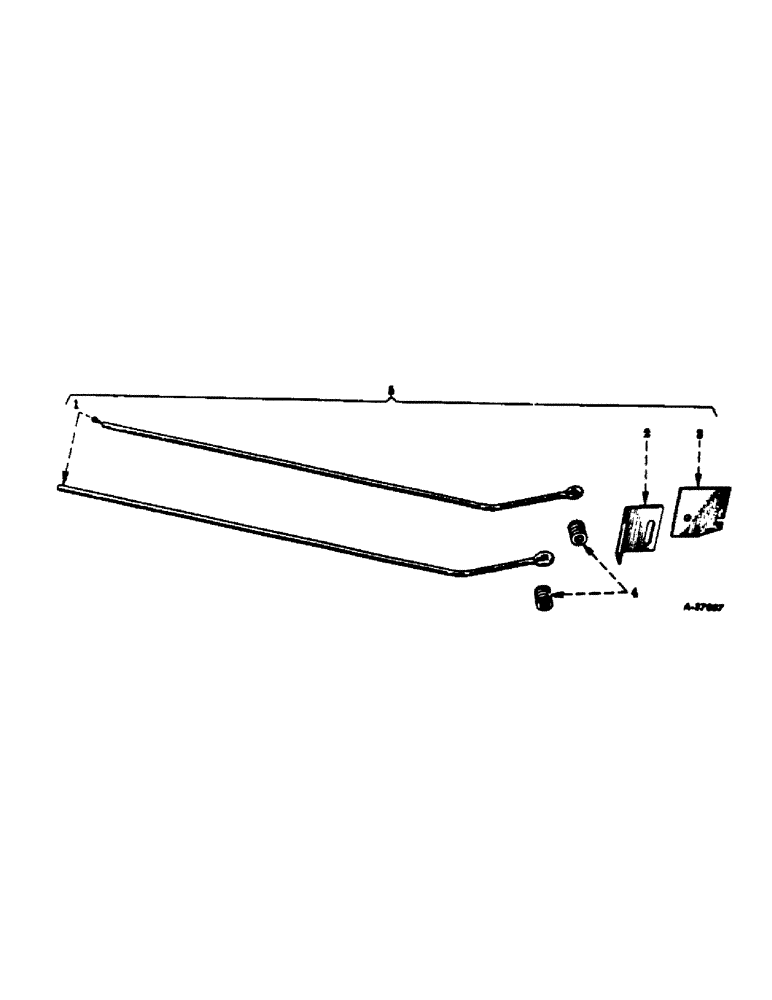

Запчасти Case IH CUB-22 (G-11) - OUTER SHOE GRASS ROD FIELD CONVERSION PACKAGE

1

455577R1

ROD, outer shoe grass, 1954 and since

2шт.

2

PLATE, outer shoe grass rod adjusting, discontinued for service, 1954 and since

1шт.

18450R1

BOLT, 3/8-16NC x 2-5/8 dld crg

2шт.

13293R1

BOLT

1/2-13NC x 1-1/2 mach

1шт.

280136

NUT,3/8"-16, G8

2шт.

114774

NUT, 1/2 hex.

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , For 18450R1 1/8" x 3/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

510579R1

WASHER

13/32 ID x 1-1/8 OD x 14 ga plain, for 18450R1

2шт.

12026R1

WASHER

17/32 ID x 1-1/4 OD x 14ga plain, for 13293R1

1шт.

3

BRACKET, outer shoe grass rod, discontinued for service, 1954 and since

1шт.

4

1015

LAMP

SPRING, grass rod tension, 5-3/4 coils, 1954 and since

2шт.

5

455576R91

FIELD CONVERSION PACKAGE, outer shoe grass rod, 1954 and since

1шт.
