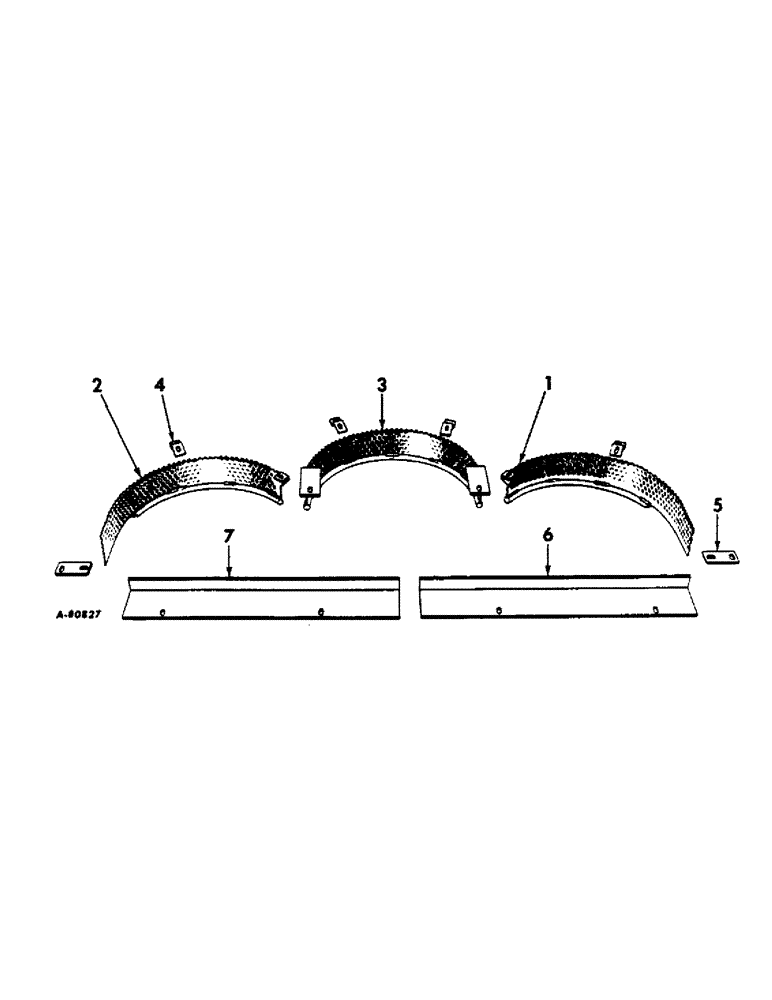

Запчасти Case IH C-3 (G-53) - LEAF MULCHER / PRODUCT GRAPHICS

1

474585R91

BASKET ASSY, left leaf

1шт.

2

474586R91

BASKET ASSY, right leaf

1шт.

3

474587R91

BASKET ASSY, center leaf

1шт.

4

474588R1

CLIP, rear mounting

4шт.

5

474584R1

BRACKET, side mounting

2шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 cd or zn-pltd hex-hd cap, baskets to mounting clips and brackets

6шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 cd or zn-pltd hex-hd cap, baskets mounting pads to platform

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 cd or zn-pltd

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

6

474589R1

SHIELD, left front

1шт.

7

474590R1

SHIELD, right front

1шт.

478340R91

KIT

PRODUCT GRAPHICS PACKAGE

1шт.

547494R92

DECAL

PACKAGE, IH trademark product graphics

1шт.

547496R92

DECAL

PACKAGE, International product graphics

1шт.

75724C1

PRODUCT GRAPHIC, danger

1шт.
