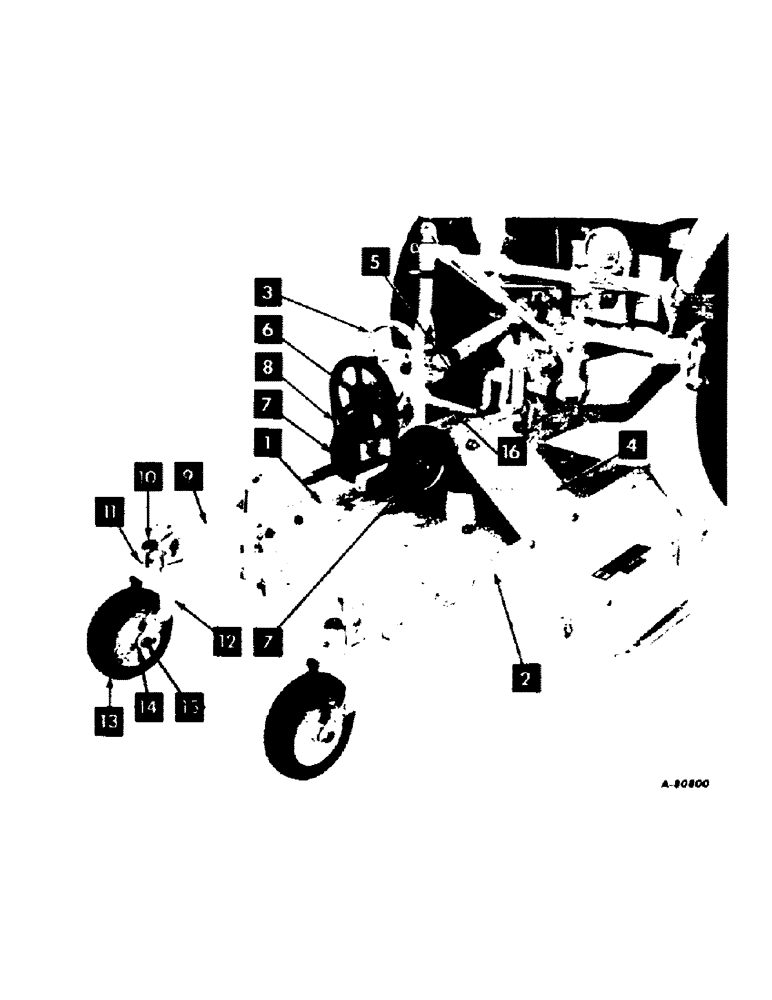

Запчасти Case IH C-2 (G-45) - REAR MOUNTING PARTS, INTERNATIONAL CUB LO-BOY & FARMALL CUB WITH FAST HITCH

1

474085R1

ANGLE, left platform lift

1шт.

2

474086R1

ANGLE, right platform lift

1шт.

3

474087R91

BRACKET ASSY, spindle & idler mounting

1шт.

474088R1

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

SCREW, 1/2-13 x 3 cd or zn-pltd hex-hd cap, drive sheave adjustment

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

4

474089R91

PLATE ASSY, right

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap, bracket assy & plate assy to platform lift angles

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

5

474090R1

BAR, fast hitch, for cub lo-boy tractor only

1шт.

5

474091R1

BAR, fast hitch, for farmall cub tractors only

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 cd or zn-pltd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex.

2шт.

6

474092R91

1шт.

SPINDLE ASSY, transfer, composed of (2) cone 463911R91 (2) cup 572564R1 (1) fitting 109461 (1) housing 474093R1 (1) hub 474162R1 (1) key 474098R1 (1) nut 219760 (1) screw 181696 (1) screw 474456R1 (2) seal 474094R91 (1) shaft 474096R91 (1) sheave 474067R1 (1) spacer 474095R1 (4) washer 120396 (4) washer 120384 (4) washer Q3480 (1) washer 474097R1 (3) washer 120380

1шт.

7

574097R91

PULLEY

W/ BEARING, idler

2шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 cd or zn-pltd hex-hd cap

2шт.

446239

WASHER, 5/8 x 1-3/8 x .109 cd or zn-pltd

10шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 cd or zn-pltd hex

2шт.

8

474099R1

V-BELT,0.71" W x 69.88" L

V-section drive 0.71" W x 69.88" L

1шт.

9

474101R91

ARM ASSY, tail wheel

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 cd or zn-pltd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

10

474102R91

ADJUSTER

BUSHING ASSY, adj guide wheel

2шт.

M60912

PIN, 1/2 x 1-3/4 std-hd

2шт.

120396

WASHER

17/32 x 1-1/16 x .095 cd or zn-pltd

2шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

2шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Guide wheel bushing assy 1/4"-28 NPT x .54" lg

2шт.

12

474103R91

FORK

ASSY, guide wheel

2шт.

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga

2шт.

137218

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

13

474104R92

WHEEL

ASSY, guide, optional w/487301R91

2шт.

13

487301R91

WHEEL

ASSY, guide, optional w/474104R91

2шт.

14

475974R2

BUSHING

wheel, use w/474104R91

4шт.

Flange o.d. is 1.312", body o.d. is 1.131", i.d. is .756", length is .750". 6/18/02 BW CAM

1шт.

14

487302R1

BUSHING

wheel, use w/474301R91

4шт.

Flange o.d. is 1.484", body o.d. is 1.380", i.d. is .756", length is .625". 6/18/02 BW CAM

1шт.

15

474105R1

PIN

wheel axle

2шт.

446257

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x .148 cd or zn-pltd

2шт.

120169

COTTER PIN,5/32" x 1"

PIN, SPLIT (COTTER), 5/32" x 1"

2шт.

16

474106R91

BAR W/BUSHING, support, for cub lo-boy tractors only

1шт.

474100R91

GUARD ASSY, belt

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 cd or zn-pltd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
