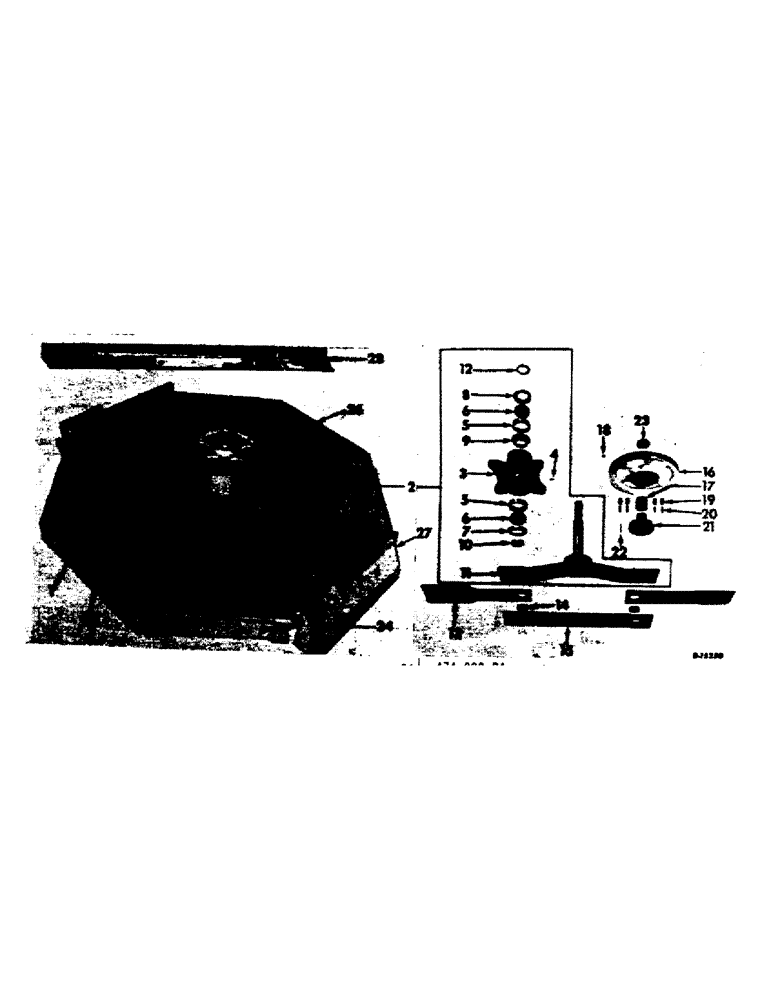

Запчасти Case IH C-2 (G-41) - PLATFORM AND SPINDLE

1

474013R91

PLATFORM ASSY, one spindle

1шт.

2

474014R91

SPINDLE ASSY, cutter blade

1шт.

3

474015R1

HOUSING

spindle

1шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 cd or zn-pltd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, Housing spindle 1/8"-27 x .66 lg

1шт.

5

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

BEARING, spindle housing cup

2шт.

6

474017R91

BEARING ASSY,34.92mm ID

ASSY, housing cone

2шт.

7

474018R91

OIL SEAL

spindle housing bottom oil

1шт.

8

474018R91

OIL SEAL

spindle housing top oil

1шт.

9

474019R1

BEARING COVER

CLOSURE, spindle housing inner

1шт.

10

474020R1

SPACER

spindle

1шт.

11

474021R91

SHAFT

ASSY, spindle

1шт.

474022R1

WASHER

1-13/32 x 2-1/2 x 5/32 cd-pltd

1шт.

474024R1

NUT

1-3/8-12 hex.

1шт.

102584

SPARE PART

SCREW, 5/16-18 x 3/4 hex-soc-hd cup-pt set, in spindle shaft nut

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16-18 cd or zn-pltd hex jam, on set screw

2шт.

12

474023R1

WASHER

spindle shaft star

1шт.

13

474025R1

BLADE

cutter

2шт.

14

474026R1

BUSHING,23.02mm ID x 37.57mm OD x 9.91mm L

cutter blade

2шт.

15

474027R91

BAR

PLATE, cutter blade tie

1шт.

474030R1

BOLT,7/8" - 14 x 2 1/4", Steel

7/8-14 x 2-1/4 sq-nk crg

2шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 cd or zn-pltd slt hex.

2шт.

137253

PIN, 3/16 x 1-5/8 cd or zn-pltd cot.

2шт.

16

474028R1

PULLEY

SHEAVE, clutch

1шт.

17

474029R1

BUSHING,38.13mm ID x 44.53mm OD x 38.3mm L

clutch sheave

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , taper, Clutch sheave 1/4"-28 NPT x .54" lg

1шт.

19

474031R1

PIN

clutch

4шт.

20

474032R1

SPRING

clutch

4шт.

21

474033R1

HUB

clutch

1шт.

22

2390N

KEY,1/4" Sq x 1 3/4", Par

1/4 x 1-3/4 sq. parallel clutch hub

1шт.

23

474034R91

RETAINER

CAP WITH PIN, clutch retainer

1шт.

19756R1

PIN,3/16" x 1/2", Coiled

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 cd or zn-pltd hex-hd cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , Cap to spindle shaft 3/8"

1шт.

24

474035R91

SHOE

RUNNER ASSY, platform left

1шт.

24

474036R91

SHOE

RUNNER ASSY, platform right

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

25

474037R1

SHIELD, front platform

1шт.

26

474038R1

SHIELD, rear platform

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 cd or zn-pltd hex-hd cap

8шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 cd or zn-pltd

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

27

474039R1

SUPPORT

DEFLECTOR, platform side

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 cd or zn-pltd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

28

474040R1

ANGLE, platform left lift, see note

1шт.

Use only when platform assy is center mounted.

1шт.

28

474041R1

ANGLE, platform right lift, see note

1шт.

Use only when platform assy is center mounted.

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

8шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 cd or zn-pltd

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

29

474042R91

GUIDE

ASSY, drive belt

2шт.
