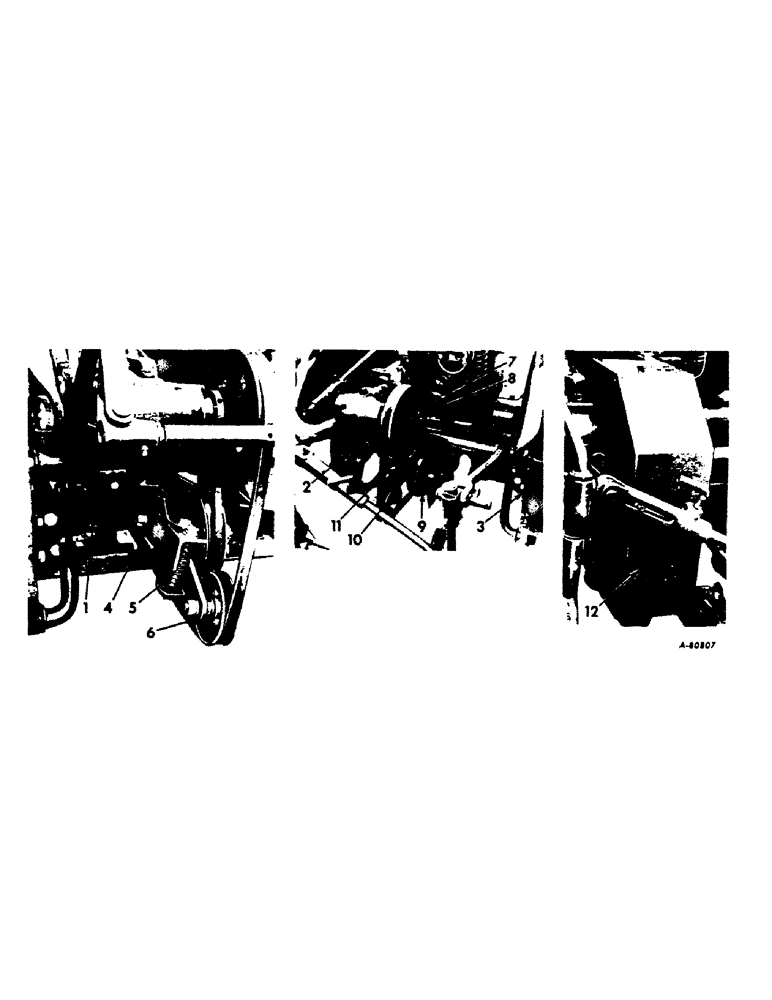

Запчасти Case IH C-1 (G-38) - MOUNTING & DRIVE PARTS, FARMALL CUB TRACTORS W/FAST HITCH

1

474515R91

BRACKET ASSY, idler mounting

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex., mounting bracket to angle brackets

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 cd or zn-pltd hex-hd cap

2шт.

131016

WASHER

21/32 x 1-5/16 x .095 cd or zn-pltd

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

474516R91

BRACKET ASSY, left angle

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 cd or zn-pltd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Angle bracket to tractor 5/8"

2шт.

3

474517R91

BRACKET ASSY, right angle

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 cd or zn-pltd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Angle bracket to tractor 5/8"

2шт.

4

474518R1

BRACE, idler bracket

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

SCREW, 1/2-13 x 1-1/4 cd or zn-pltd hex-hd cap

1шт.

120396

WASHER

17/32 x 1-1/16 x .095 cd or zn-pltd

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

5

474519R1

SPRING, idler tension

1шт.

587406R1

BOLT, 1/2-13 x 6 hex-hd mach, spring mount bolt

1шт.

443339

NUT

1/2-13 cd or zn-pltd hex. lock

1шт.

NLS

NO LONGER SERVICED

17/32 x 1-1/16 x .095 cd or zn-pltd

2шт.

6

474520R91

ARM ASSY, idler pivot

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex.

2шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 cd or zn-pltd hex-hd cap

1шт.

NLS

NO LONGER SERVICED

21/32 x 1-5/16 x .095 cd or zn-pltd

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

7

474177R1

PULLEY

SHEAVE, rear drive

1шт.

8

474511R1

HUB, drive sheave

1шт.

474458R1

SCREW, 1/4-20 x 1-7/8 cd or zn-pltd hex-hd cap

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

9

474052R91

PULLEY

W/BEARING, flat idler

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 cd or zn-pltd hex.

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 cd or zn-pltd hex-hd cap

1шт.

131016

WASHER

21/32 x 1-5/16 x .095 cd or zn-pltd

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

662959R91

PULLEY ASSY.

PULLEY W/BEARING, v-idler

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11cd or zn-pltd hex.

2шт.

474378R1

SCREW, 5/8-11 x 2-3/4 cd or zn-pltd hex-hd cap

1шт.

NLS

NO LONGER SERVICED

21/32 x 1-5/16 x .095 cd or zn-pltd

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

474522R1

V-BELT 177.00" L, V-section drive 177.00" L

1шт.

12

474523R91

GUARD ASSY, rear belt

1шт.

120376

NUT,5/16"-18, G5

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 cd or zn-pltd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
