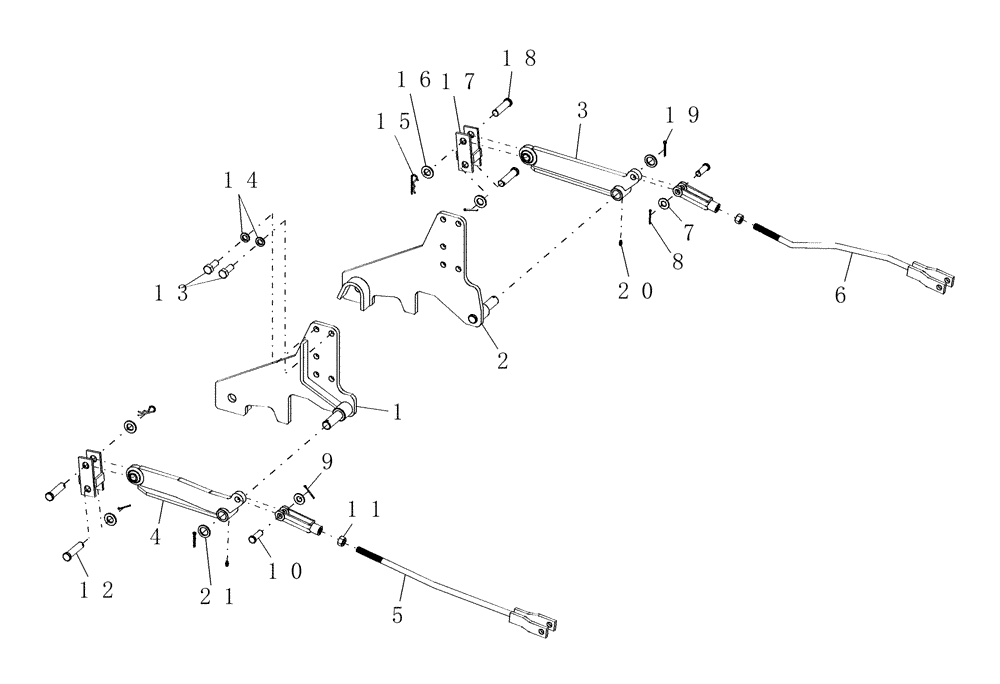

Запчасти Case IH 914A (08) - LIFT LINKAGE, FRONT - 84"

1

CSE163175

BRACKET

Ear, LH, Front

1шт.

2

CSE163180

BRACKET

Ear, RH, Front

1шт.

3

CSE163135

ARM, LIFT

RH, Front

1шт.

4

CSE163274

ARM, LIFT

LH, Front

1шт.

5

AUB163165

LIFT LINK

LH, Front

1шт.

6

AUB163258

LIFT LINK

RH, Front

1шт.

7

AUB163189

YOKE

End, Adjustable

2шт.

8

495-11066

WASHER,5/8", SAE

2шт.

9

432-816

COTTER PIN,1/8" x 1"

4шт.

10

AUB968082

PIN,15.77mm OD x 49.78mm L

5/8 x 1-3/4"

2шт.

11

AUB960505

NUT

5/8"

2шт.

12

AUB967126

PIN,18.95mm OD x 82.55mm L

3/4x3"

2шт.

13

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

10шт.

14

E630176S71

LOCK WASHER

16 mm

10шт.

15

AUB967003

CLIP

Hairpin

2шт.

16

AUB964500

WASHER

3/4" SAE

4шт.

17

AUB163160

BOX

Weld Assy.

2шт.

18

CSE161367

CLEVIS PIN

3/4 x 2-3/4"

2шт.

19

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

20

219-10

LUBE NIPPLE,1/4" - 28 NPTF

Fitting, Grease, 1/4"

2шт.

21

AUB314167

RING

1" I.D. x 1-1/2" O.D.

2шт.
