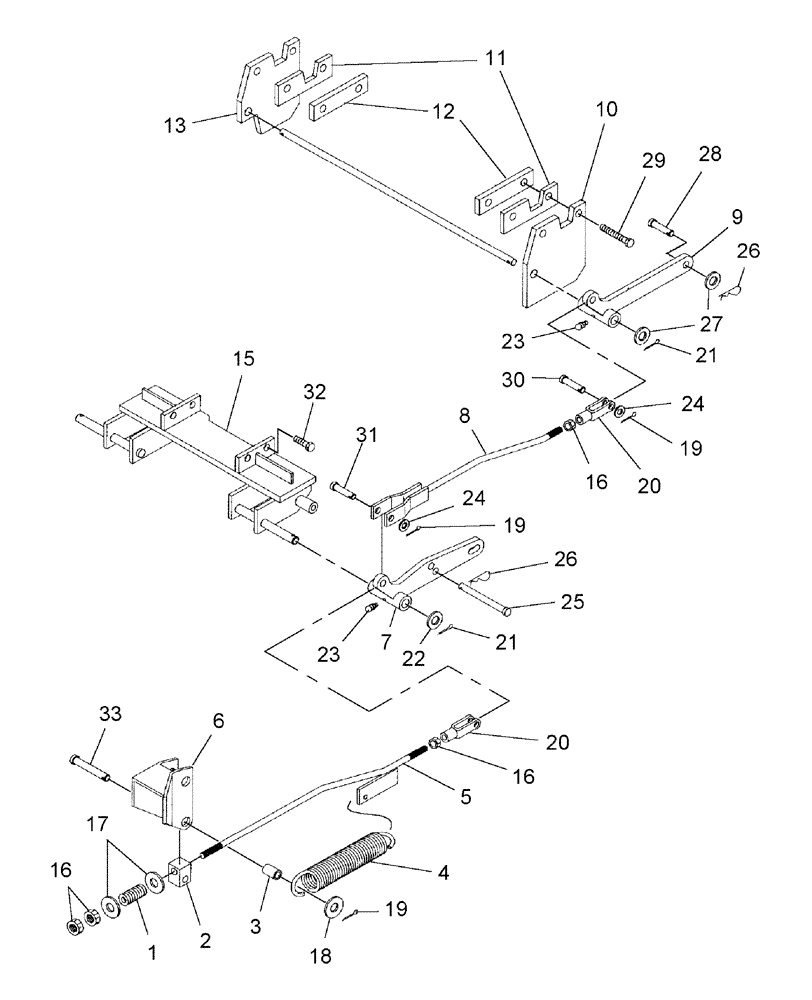

Запчасти Case IH 914A (07) - LIFT COMPONENTS, 72" - REAR DISCHARGE

1

AUB162251

SPRING

Cushion Lift

2шт.

2

AUB162268

BLOCK

Lift, Cushion

2шт.

3

AUB162286

TUBE

7/8 x 1-1/4, Cushion Lift

2шт.

4

AUB250083

SPRING

Cushion Lift

2шт.

5

AUB162140

ROD

Lift, RR, Cushion

1шт.

5

AUB162141

ROD

Lift, LR, Cushion

1шт.

6

CSE162720

BRACKET

Rear Lift, Right Hand

1шт.

6

CSE162721

BRACKET

Rear Lift, Left Hand

1шт.

7

CSE162733

ARM, LIFT

Rear

2шт.

8

AUB160578

ROD

Lift, Front

2шт.

9

CSE162731

ARM, LIFT

Front

2шт.

10

AUB162829

PLATE

Hanger, Front, Right Hand

1шт.

11

AUB160560

SPACER

3/8 Thick

2шт.

12

AUB160561

SPACER

1/2 Thick

2шт.

13

AUB162830

PLATE

Hanger, Front Left Hand

1шт.

14

AUB160562

ROD

Upstop

1шт.

15

CSE162770

LINKAGE

1шт.

16

425-108

NUT,1/2" - 13, Gr 5

8шт.

17

495-21056

WASHER,1/2"

4шт.

18

495-21069

WASHER,5/8"

Flat, 5/8

2шт.

19

432-824

COTTER PIN,1/8" x 1 1/2"

6шт.

20

AUB161897

CLEVIS

Yoke, 1/2-13

4шт.

21

432-1224

COTTER PIN,3/16" x 1-1/2"

4шт.

22

AUB314167

RING

2шт.

23

219-87

LUBE NIPPLE,1/4" - 28 NPTF

6шт.

24

495-11053

WASHER,1/2", SAE

4шт.

25

AUB967064

PIN,12.6mm OD x 131.06mm L

1/2 x 5

4шт.

26

86518307

HAIR PIN COTTER

Hair, 1/8 x 2-9/16

6шт.

27

495-11081

WASHER,3/4", SAE

6шт.

28

AUB162737

PIN

3/4 x 1-3/4

4шт.

29

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

4шт.

30

26282

PIN

1/2" x 1-1/2

2шт.

31

64162

CLEVIS PIN,12.6mm OD x 54.76mm L

1/2 x 2

2шт.

32

AUB961125

BOLT

M14-1.5 x 30

4шт.

33

276932

PIN

5/8 x 2-1/2

2шт.
