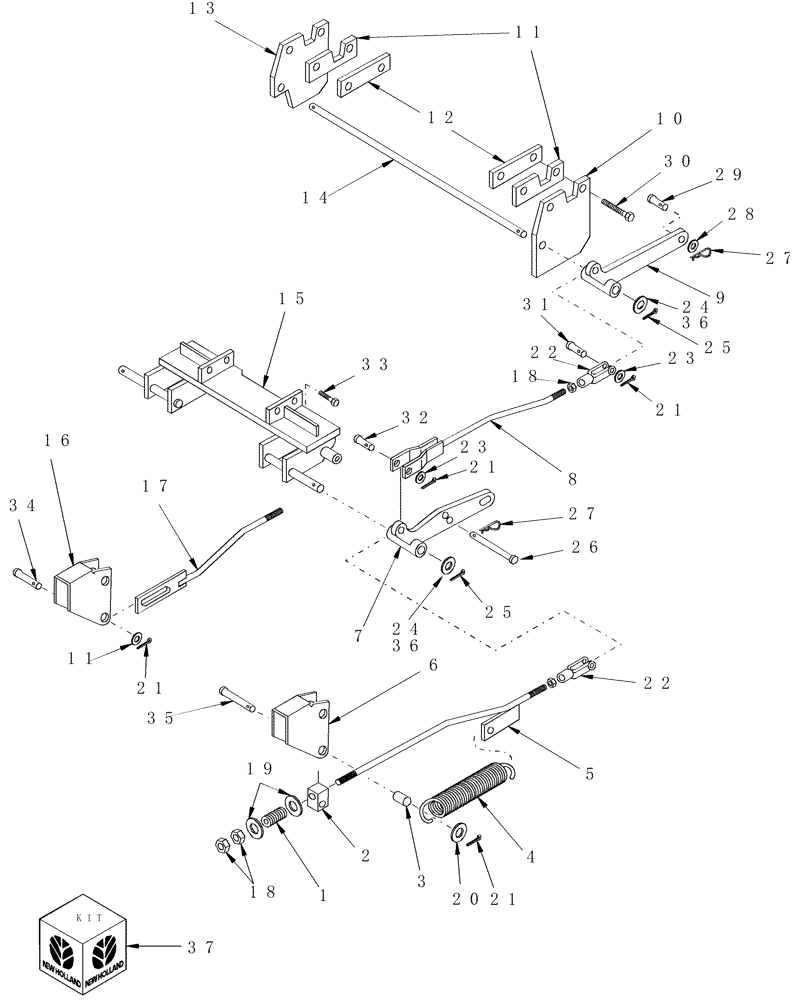

Запчасти Case IH 914A (06) - LIFT COMPONENTS, 60" & 72"
№
Артикул
Название
Примечание
Количество
1
AUB162251
SPRING
Cushion Lift
2шт.
2
AUB162268
BLOCK
Lift, Cushion
2шт.
3
AUB162286
TUBE
7/8 x 1-1/4", Cushion Lift
2шт.
4
AUB250083
SPRING
Cushion Lift
2шт.
5
AUB162140
ROD
Rear, RH, Cushion Lift
1шт.
5
AUB162141
ROD
Rear, LH, Cushion Lift
1шт.
6
CSE162721
BRACKET
Rear Lift, RH
1шт.
7
CSE162827
ARM
Arm, Lift, Rear
2шт.
8
AUB160578
ROD
Rod, Lift, Front
2шт.
9
AUB162825
ARM
Arm, Lift, Front
2шт.
10
AUB162832
PLATE
Plate,Hanger, Front, R.H., 60"
1шт.
10
AUB162829
PLATE
Plate, Hanger, Front, R.H., 72"
1шт.
11
AUB160560
SPACER
Spacer, Hanger Plate, 3/8" Thick
2шт.
12
AUB160561
SPACER
Spacer, Hanger Plate, 1/2" Thick
2шт.
13
AUB162833
PLATE
Plate, Hanger, Front, L.H., 60"
1шт.
13
AUB162830
PLATE
Plate, Hanger, Front, L.H., 72"
1шт.
14
AUB160562
ROD
Rod, 3/4" x 26
1шт.
15
AUB162770
FRAME
Frame, Mid-Lift
1шт.
16
CSE162721
BRACKET
Lift, Rear, LH
1шт.
17
AUB160591
ARM
Arm, Lift, Rear, 60" W/O Cushion Lift Assist
2шт.
18
425-108
NUT,1/2" - 13, Gr 5
8шт.
19
495-21056
WASHER,1/2"
4шт.
20
495-21069
WASHER,5/8"
2шт.
21
432-824
COTTER PIN,1/8" x 1 1/2"
6шт.
22
AUB161897
CLEVIS
Clevis, 1/2"-13
4шт.
23
495-11053
WASHER,1/2", SAE
4шт.
24
495-11081
WASHER,3/4", SAE
4шт.
25
432-1224
COTTER PIN,3/16" x 1-1/2"
4шт.
26
AUB967064
PIN,12.6mm OD x 131.06mm L
Pin, Clevis, 1/2" x 5"
2шт.
27
86518307
HAIR PIN COTTER
Clip, Hairpin, 1/8" x 2-9/16"
5шт.
28
495-11066
WASHER,5/8", SAE
4шт.
29
AUB967197
ROLL PIN
Pin, Clevis, 5/8" x 1-1/2"
4шт.
30
814-16060
BOLT,Hex, M16 x 2 x 60mm, Cl 8.8
4шт.
31
26282
PIN
Pin, Clevis, 1/2" x 1-1/2"
2шт.
32
64162
CLEVIS PIN,12.6mm OD x 54.76mm L
Pin, Clevis, 1/2" x 2"
2шт.
33
AUB961125
BOLT
Bolt, M14-1.5 x 30
4шт.
34
276932
PIN
Pin, Clevis, 5/8" x 2-1/2"
2шт.
35
270135
CLEVIS PIN
Pin, Clevis, 5/8" x 3-1/2"
2шт.
36
AUB314167
RING
Washer, Flat, 1"
4шт.
37
AUB00938
KIT
Kit, Suspension - EU ONLY, NA ORDER THRU WHOLGOODS
1шт.
Выбрано товаров: 40
