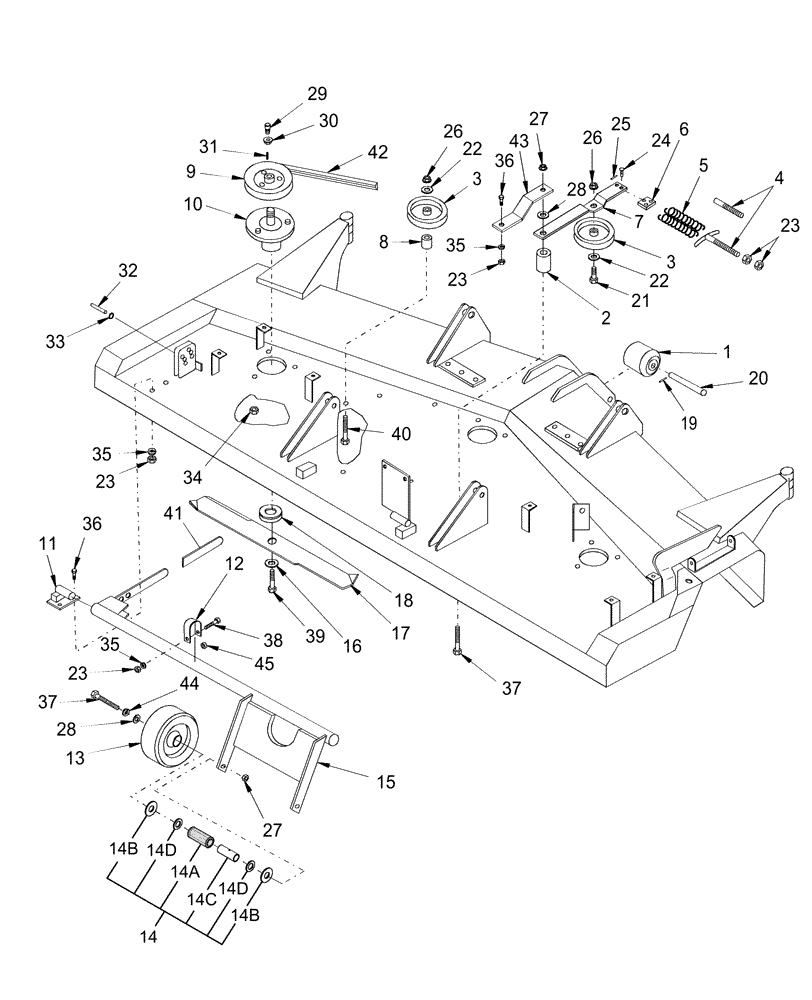

Запчасти Case IH 914A (05) - PULLEYS & BLADES, 60" & 72"

1

AUB162988

ROLLER

Anti-Scalp 4"

1шт.

2

AUB162803

SPACER

Belt Tension Arm

1шт.

1

AUB162988

ROLLER

Roller, Anti-Scalp 3" - 716419016 & 716418026

1шт.

3

AUB162146

PULLEY

Idler

2шт.

4

AUB162367

ROD

Belt Adjustment, "T" Shaped, 60"

1шт.

4

AUB161423

ROD

Belt Adjustment, "T" Shaped, 72"

1шт.

4

AUB140340

ROD

Belt Adjustment, 60" & 72"

1шт.

Used ASN A7AL159, A7AM665 & A7AN270

1шт.

4

AUB121804

ROD

Belt Adjustment, 72"

1шт.

Used ASN A7AL159, A7AM665 & A7AN270

1шт.

5

AUB162801

SPRING

Tension

1шт.

6

AUB161294

CLIP

Double Spring

1шт.

7

CSE162153

ARM

Belt Tension

1шт.

8

AUB160558

SPACER

Fixed Idler

1шт.

9

AUB07331367

PULLEY

Mower Spindle

3шт.

10

AUB162260

SPINDLE

3шт.

11

CSE160594

BRACKET

Ear, Rear HOC Adjustment Bar

1шт.

12

CSE164030

CLAMP

1шт.

13

AUB121712

WHEEL BEARING KIT

& Bearing, Rear, Includes: Ref. 14

2шт.

14

AUB121865

BEARING ASSY

Wheel Bearing Includes: Ref. 14A-14D

1шт.

14a

NSS

NOT SOLD SEPARAT

Bearing

1шт.

14b

NSS

NOT SOLD SEPARAT

Thrust Washer

2шт.

14c

NSS

NOT SOLD SEPARAT

Spanner

1шт.

14d

NSS

NOT SOLD SEPARAT

Seal-Retainer

2шт.

15

AUB161855

BAR

Rear HOC, 60"

1шт.

15

CSE164020

DRIVE SHAFT

1шт.

15

AUB162102

ANGLE BAR

Rear HOC, 72"

1шт.

15

CSE164010

BAR

1шт.

15

CSE162647

BAR

Bar, Rear HOC, 72" - Rear Discharge

1шт.

16

AUB162284

SPACER,14.27mm ID x 22.23mm OD x 9.53mm L

Blade

3шт.

17

AUB162122

BLADE

Cutting, 60"

3шт.

17

AUB162836

BLADE

Cutting, 60" - High Lift

3шт.

17

AUB160191

BLADE

Cutting, 72"

3шт.

17

AUB144701

BLADE

Cutting, 72" - High Lift

3шт.

18

AUB162779

SPACER

Spindle

3шт.

19

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

20

AUB967064

PIN,12.6mm OD x 131.06mm L

1/2" x 5"

1шт.

21

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

HH, G5, 5/8"-11 x 1-3/4"

1шт.

22

495-21069

WASHER,5/8"

Flat, 5/8"

2шт.

23

425-106

NUT,3/8"-16, Cl 5

6шт.

24

9672307

CLEVIS PIN,1/4" x 3/4"

1шт.

25

280224

COTTER PIN,1/16" x 5/8"

1/16" x 5/8"

1шт.

26

85700693

NUT,5/8" - 11, Gr C

2шт.

27

232-4148

NUT,1/2"-13, GC

1шт.

28

495-21056

WASHER,1/2"

1шт.

29

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

29

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

30

280724

LOCK NUT,3/4" - 16

3шт.

31

277124

KEY

Square, 1/4" x 7/8"

3шт.

32

86551409

PIN

3/8" x 2-1/8"

1шт.

33

AUB967057

RING

1шт.

34

425-117

NUT,7/16"-20, G5

9шт.

35

492-11038

LOCK WASHER,3/8"

10шт.

36

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

37

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

3шт.

38

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

38

PL

PROCURE LOCALLY

BOLT, 3/8"-16 x 2-1/2"

1шт.

39

AUB967187

BOLT

9/16"-12 x 1-3/4", "Grade 5"

3шт.

40

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HH, G5, 5/8"-11 x 2-3/4"

1шт.

41

AUB105593

KNOB

Rear HOC Handle

1шт.

42

AUB161355

V-BELT

60"

1шт.

42

AUB161711

V-BELT

72"

1шт.

43

CSE162802

BRACE

1шт.

44

PL

PROCURE LOCALLY

WASHER, Lock, 1/2"

2шт.

45

AUB164038

SPACER

U-Clamp - Special

1шт.
