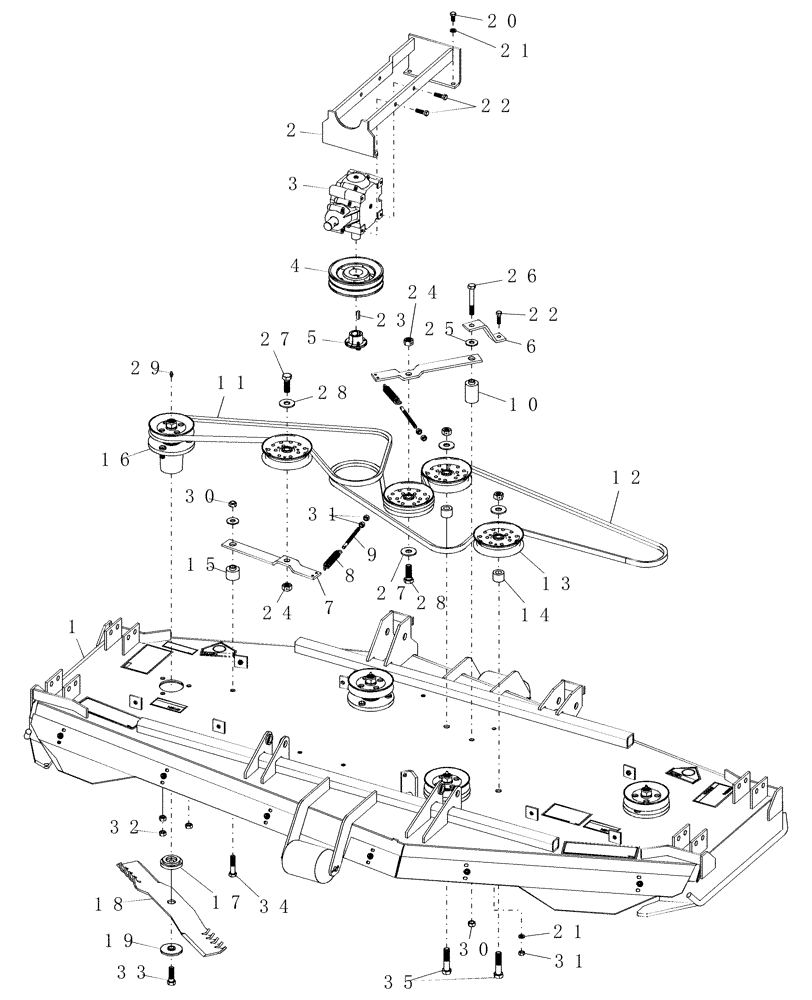

Запчасти Case IH 914A (03) - DECK COMPONENTS, 84" - REAR DISCHARGE

1

CSE163521

MOVING UNIT

Deck, 84", With Decals

1шт.

2

CSE163158

BRACKET

Gearbox

1шт.

3

CSE162131

GEARBOX ASSY

1шт.

3

84279411R

REMAN-GEARBOX

Reman for new P/N CSE162131

1шт.

3

84279411C

CORE-GEARBOX

Return Number

1шт.

4

AUB163183

PULLEY

Double, 6.25" O.D.

1шт.

5

AUB140430

HUB

With Cap Screws

1шт.

6

CSE162802

BRACE

Idler Arm

1шт.

7

CSE162153

ARM

Belt Tension

2шт.

8

AUB162801

SPRING

Extension

2шт.

9

AUB140340

ROD

Treaded Adjustment

2шт.

10

AUB162803

SPACER

Idler Arm

1шт.

11

AUB163192

V-BELT,0.66" W

LH

1шт.

12

AUB147780

V-BELT,120.50" L

RH

1шт.

13

AUB162146

PULLEY

Idler, 5"

4шт.

14

AUB160558

SPACER

Idler

2шт.

15

AUB163179

SPACER

Idler Pivot

1шт.

16

AUB163004

SPINDLE

Tall 6.25" LH Side

2шт.

16

AUB163003

SPINDLE

Short 5.5" RH Side

2шт.

17

AUB162779

SPACER

Blade

4шт.

18

AUB163272

FAN BLADE

BLADE

4шт.

19

AUB162284

SPACER,14.27mm ID x 22.23mm OD x 9.53mm L

Blade

4шт.

20

AUB960045

BOLT

3/8-16 x 3/4"

4шт.

21

AUB960602

WASHER

3/8"

5шт.

22

AUB960047

BOLT

3/8-16 x 1-1/4"

5шт.

23

87477

KEY

1/4 x 1/4 x 1"

1шт.

24

AUB964032

NUT

5/8"

4шт.

25

AUB960704

WASHER

Flat, 1/2"

2шт.

26

AUB960122

BOLT,1/2" - 13 x 3.50", Gr 5

1/2-13 x 3-1/2"

1шт.

27

AUB960156

BOLT

5/8-11 x 1-3/4"

2шт.

28

AUB960705

WASHER

Flat, 5/8"

4шт.

29

219-10

LUBE NIPPLE,1/4" - 28 NPTF

Straight, 1/4"

4шт.

30

AUB964000

NUT

1/2"

2шт.

31

AUB960502

NUT

3/8"

5шт.

32

AUB964005

NUT

7/16"

12шт.

33

AUB967187

BOLT

9/16-12 x 1-3/4"

4шт.

34

AUB960117

BOLT

1/2-13 x 2-1/4"

1шт.

35

AUB960160

BOLT

5/8-11 x 2-3/4"

2шт.
