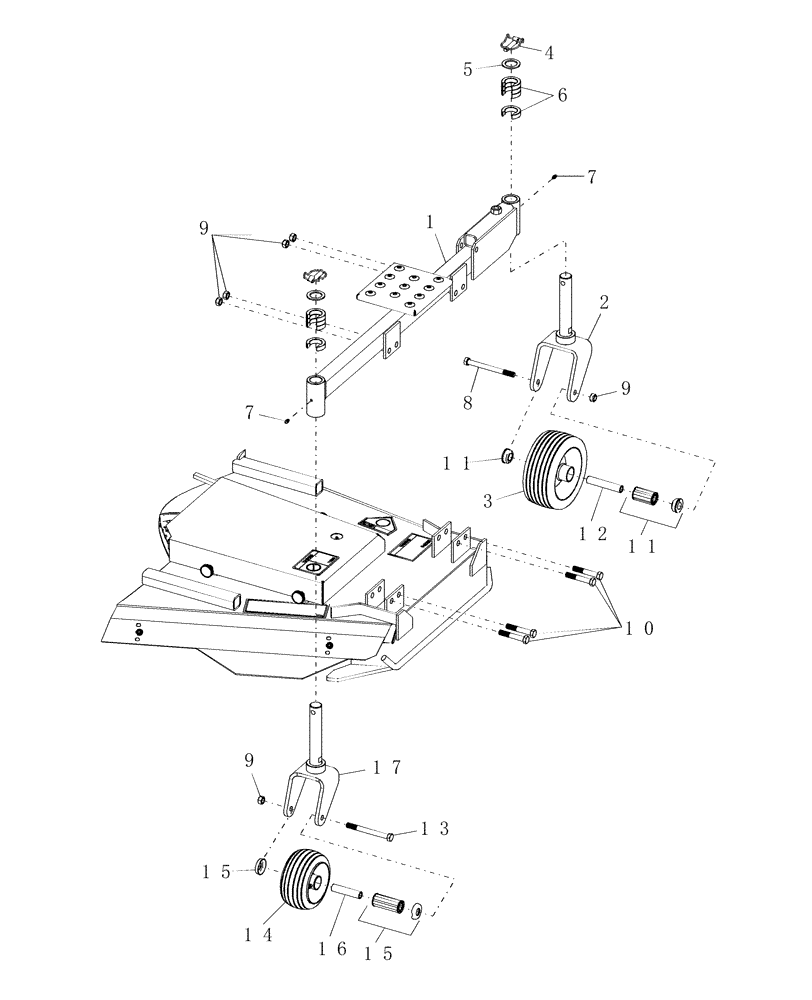

Запчасти Case IH 914A (17) - GAUGE WHEELS, 84" (Apr 26 2003 11:05:00.0618 AM)

1

CSE163283

STRUT

RH

1шт.

1

CSE163155

STRUT

LH

1шт.

2

CSE163265

AXLE SHAFT

2шт.

3

AUB163251

WHEEL ASSY

w/Bearing

2шт.

4

AUB161397

LOCK PIN

3/8" Safety

4шт.

5

AUB964514

WASHER

1-1/4 I.D. x 1-7/16" O.D.

4шт.

6

AUB161681

SPACER

Height Of Cut

16шт.

7

219-10

LUBE NIPPLE,1/4" - 28 NPTF

Fitting, Grease, 1/4"

4шт.

8

PL

PROCURE LOCALLY

Bolt, 1/2-13 x 5-1/2"

2шт.

9

AUB964000

NUT

1/2"

12шт.

10

AUB960120

BOLT

1/2-13 x 3"

8шт.

11

AUB163545

BEARING ASSY

Front Wheels

2шт.

12

AUB163273

SPACER

Bearing

2шт.

13

AUB960128

BOLT

1/2-13 x 5"

2шт.

14

CSE164186

WHEEL

w/Bearing

2шт.

15

AUB164075

BEARING ASSY

Rear Wheels

2шт.

16

AUB163295

COLLAR

Spacer, Bearing

2шт.

17

CSE163269

AXLE SHAFT

2шт.
