(02) - DECK COMPONENTS, 72" - REAR DISCHARGE

Запчасти Case IH 914A (02) - DECK COMPONENTS, 72" - REAR DISCHARGE

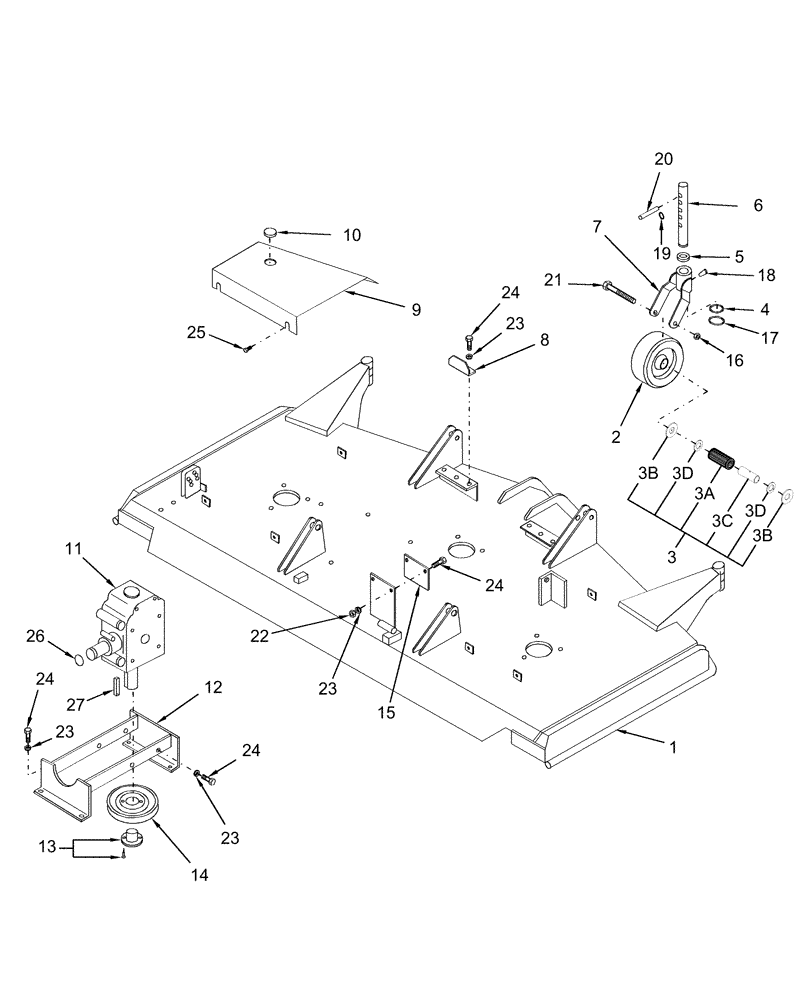

Схема запчастей Case IH 914A - (02) - DECK COMPONENTS, 72" - REAR DISCHARGE
23
3d
23
19
23
9
2
17
3a
12
3c
8
23
11
24
3b
5
20
13
3d
26
22
18
25
3
3b
14
10
24
27
6
24
7
4
1
24
16
21
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AUB162740

SHELL

Deck

1шт.

2

AUB121712

WHEEL BEARING KIT

w/Tire Includes Ref. 3

2шт.

3

AUB121865

BEARING ASSY

Wheel, Includes: Ref. 3A-3D

2шт.

3a

NSS

NOT SOLD SEPARAT

Bearing

1шт.

3b

NSS

NOT SOLD SEPARAT

Thrust Washer

2шт.

3c

NSS

NOT SOLD SEPARAT

Spanner

1шт.

3d

NSS

NOT SOLD SEPARAT

Seal-Retainer

2шт.

4

AUB314167

RING

1.0 ID x 1-1/12

2шт.

5

AUB161860

SPACER

Gauge Wheel Spindle

2шт.

6

AUB162767

SHAFT

Gauge Wheel Spindle

2шт.

7

CSE161864

BRACKET

2шт.

8

CSE162288

BUMPER

Upstop, Front

2шт.

9

CSE162739

SHIELD

Belt, Left Hand

1шт.

9

CSE162646

SHIELD

Belt, Right Hand

1шт.

10

AUB160118

PLUG

2шт.

11

CSE162131

GEARBOX ASSY

1шт.

11

84279411R

REMAN-GEARBOX

Reman for new P/N CSE162131

1шт.

11

84279411C

CORE-GEARBOX

Return Number

1шт.

12

CSE160552

FRAME

1шт.

13

AUB140430

HUB

w/Fasteners

1шт.

14

AUB161813

PULLEY

5.9 OD

1шт.

15

CSE162148

BUMPER

1шт.

16

232-4148

NUT,1/2"-13, GC

2шт.

17

100-1698

SNAP RING,#98, Ext

2шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

19

AUB967057

RING

2шт.

20

86551409

PIN

3/8 x 2-1/8

2шт.

21

35982

BOLT,Spcl, 1/2" x 3 3/4", Drilled

HH, Drilled, G5, 1/2"-13 x 3-3/4"

2шт.

22

425-106

NUT,3/8"-16, Cl 5

7шт.

23

492-11038

LOCK WASHER,3/8"

14шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

14шт.

25

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

26

100-11100

SNAP RING,#100, Ext

1шт.

27

87477

KEY

Square, 1/4 x 1

1шт.
